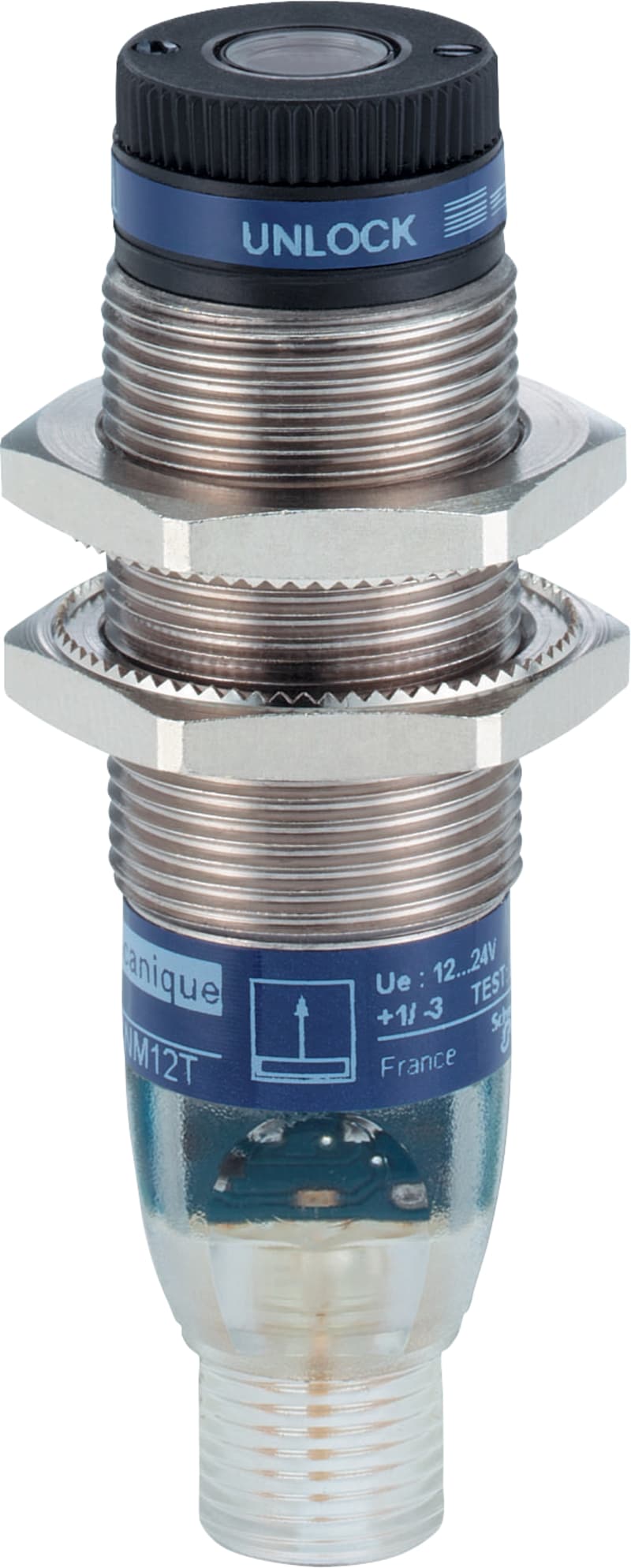

Telemecanique XUBLBKCNM12T Laser Photoelectric Sensor M18, Metal, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUBLBKCNM12T XUB M18 cylindrical laser photoelectric sensor, metal housing, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUBLBKCNM12T
- EAN / GTIN
- 3666916033517
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Diameter
- 18 mm
- Scope of delivery of the one-way system
- Transmitter and receiver
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 100000 mm
- Max. switching distance
- 100000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 66 mm
- Sensing mode
- Light switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -10–45 °C
- Response time
- 2 ms
- Switching frequency
- 1500 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Type of light
- Green light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916033517
- SAP 1000061802
- Code 8874825
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS630B5NAL2 Inductive Proximity Sensor — Ø2 mm barrel, Sn 30 mm, NPN, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique XUB2BPAWM12R Photoelectric Through-Beam Receiver, Metal, PNP, NO, 90° Head, M12 connector
Telemecanique
Stainless Angle Bracket Ø30 mm
XSZBS30
Telemecanique
Schneider Electric Complete body/contact assembly, Harmony XB5, XB4, single contact block with body/fixing collar 2NC plug in connector ZB5AZ1044
Telemecanique
Telemecanique XMLP010BD190 Pressure Transmitter, 0–10 bar, 0.5–4.5 V ratiometric, 7/16"-20 UNF female, M12 connector
Telemecanique
Telemecanique XCSM safety limit switch, metal Zamak body, roller plunger head, slow-break contacts, 2 NC + 1 NO with positive opening, 2 m pre-wired cable, IP68 XCSM3702L2
Telemecanique
Telemecanique XUSL4E4BB091NS1 Safety Light Grid Type 4, Body Detection, 4 Beams, 910 mm
Telemecanique
Telemecanique XMLA035A2C11 Pressure Switch, 5–35 bar, DIN connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUBLBKCNM12T?
- XUBLBKCNM12T can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUBLBKCNM12T.
- What is the HS code for XUBLBKCNM12T?
- The customs tariff (HS) code for XUBLBKCNM12T is 8536.50.
- Who manufactures XUBLBKCNM12T?
- XUBLBKCNM12T is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUBLBKCNM12T?
- Yes — the XUBLBKCNM12T datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUBLBKCNM12T?
- The minimum order quantity is 1.
- Is XUBLBKCNM12T available?
- Yes — XUBLBKCNM12T is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
