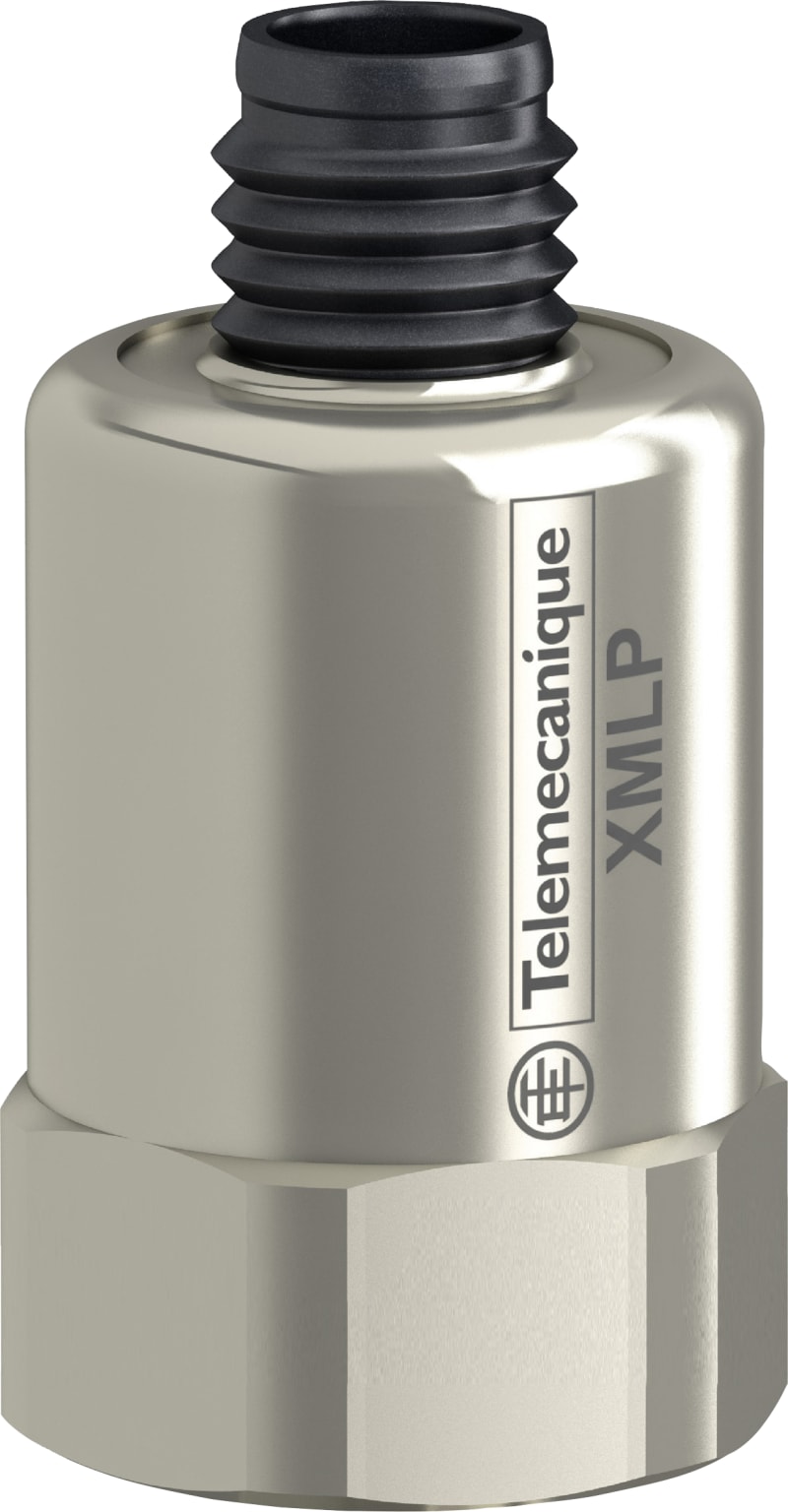

Telemecanique XMLP010BD190 Pressure Transmitter, 0–10 bar, 0.5–4.5 V ratiometric, 7/16"-20 UNF female, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XMLP010BD190 OsiSense XMLP pressure transmitter, range 0–10 bar, 0.5–4.5 V ratiometric output, 7/16"-20 UNF female process connection, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XMLP010BD190 EAN / GTIN: 3666916022009 Sales unit: pcs Output signal: 0.5–4.5 V Process connection: 7/16 in female Depth: 44 mm With display: No Diameter: 26 mm With manual on/off switch: No Initial setting: 0–10000 hPa End setting: 0–10000 hPa Max. operation pressure: 10000 hPa Explosion-proof: No Degree of protection (IP): IP65/IP67 Switch off pressure: 0–10 bar Rated voltage Ue at DC: 5 V Bursting pressure: 30 bar Engaging pressure: 0–10 bar Electronic version: Yes End value measuring range pressure: 1000000 Pa Suitable as 2-point controller: No Suitable as limiter: No Suitable as guard: Yes Max. test pressure: 20 bar Medium temperature: -20–120 °C With hand operation: No Max. operating pressure: 10000 hPa Country of origin: Switzerland
Standards & Compliance
- HS Code
- 9026.20
Cross References
- EAN 3666916022009
- SAP 1200045274
- Code 81877260
Product Documentation
