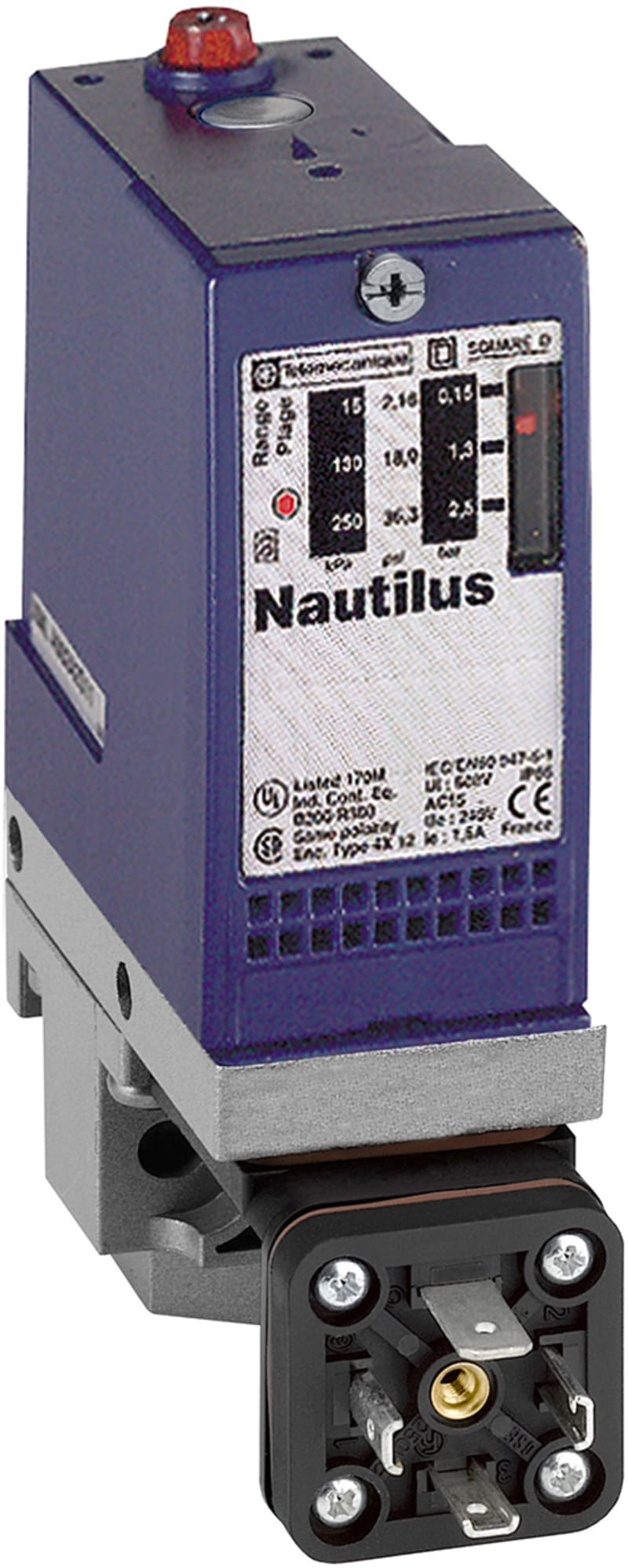

Telemecanique XMLA035A2C11 Pressure Switch, 5–35 bar, DIN connector

Telemecanique XMLA035A2C11 OsiSense XMLA electromechanical pressure switch, adjustable range 5–35 bar, DIN connector.

Manufacturer part number (MPN)

XMLA035A2C11 EAN / GTIN: 3666916025833 Sales unit: pcs Package quantity: 13 pcs Pressure: 5-35 bar Width: 35 mm Height: 113 mm Depth: 75 mm Connection: Internal thread cylindrical BSPP-G (ISO 228-1) With display: No With manual on/off switch: No Initial setting: 1500–35000 hPa End setting: 250–33750 hPa Max. operation pressure: 45000 hPa Number of auxiliary contacts as change-over contact: 1 Explosion-proof: No Degree of protection (IP): IP65 Switch off pressure: 0.25–33.75 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 160 bar Engaging pressure: 1.5–35 bar Electronic version: No Suitable as 2-point controller: No Suitable as limiter: Yes Suitable as guard: Yes Max. test pressure: 80 bar Medium temperature: 0–70 °C With hand operation: No Pressure-switching differential: 1.25 bar Max. operating pressure: 35000 hPa Country of origin: Czechia

HS Code

9032.20

• EAN 3666916025833
• SAP 1000531695
• Code 8905495
