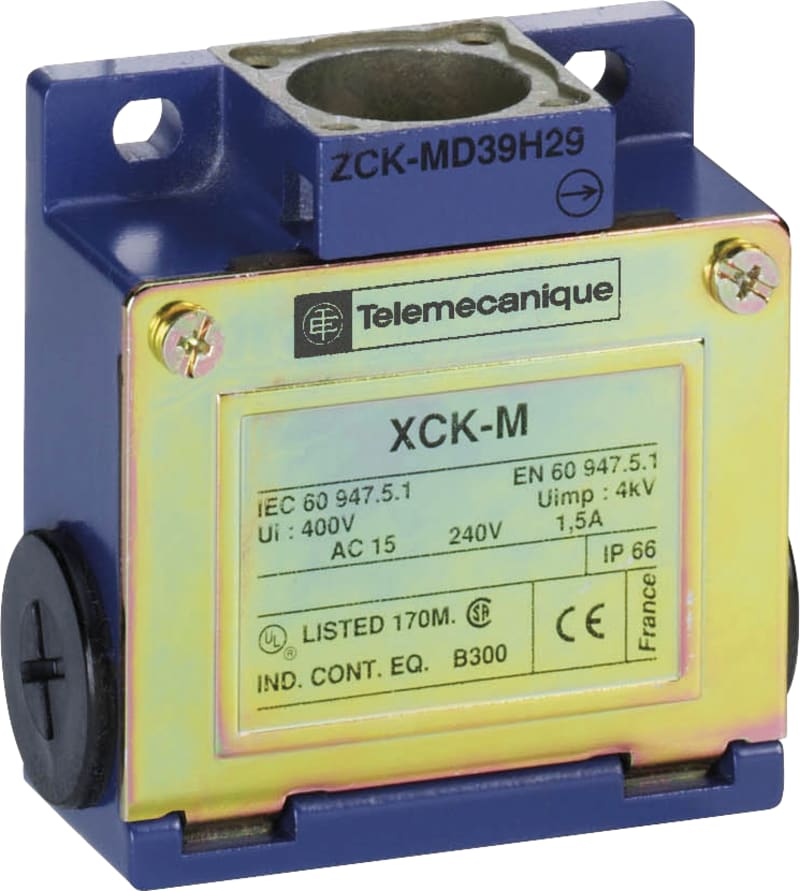

Telemecanique ZCKM9H29 Limit Switch Body, Metal, NC+NC, Snap-action, M20 cable entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKM9H29 limit switch body (contact block), metal housing, NC+NC snap-action contacts, M20 cable entry; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKM9H29
- EAN / GTIN
- 3666916043585
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- NC + NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 64 mm
- Height of sensor
- 64 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916043585
- SAP 1000341948
- Code 8998491
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKD2110M12 Limit Switch, Plunger, Metal Body, M12 connector
Telemecanique
Telemecanique XS108B3PAL2 Inductive Proximity Sensor Ø8 mm, Threaded, PNP NO, 2 m cable
Telemecanique
Telemecanique XS108B3NBM8 Inductive Proximity Sensor Ø8 mm, Threaded, NPN NC, M8 connector
Telemecanique
Telemecanique XCPR2518G13 Limit Switch, Plastic Body, PG13 entry
Telemecanique
Telemecanique OsiSense XS618B4MAU20 Inductive Proximity Sensor — M18 barrel, Sn 12 mm, 2-Wire AC/DC, NO
Telemecanique
Telemecanique XUSL2E30H076NWH Safety Light Curtain Type 2, 30 mm resolution, hand detection, 760 mm protected height
Telemecanique
Telemecanique OsiSense XS9C4A2A1G13 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 25 mm, 0–10 V analog, screw terminals (Pg cable gland)
Telemecanique

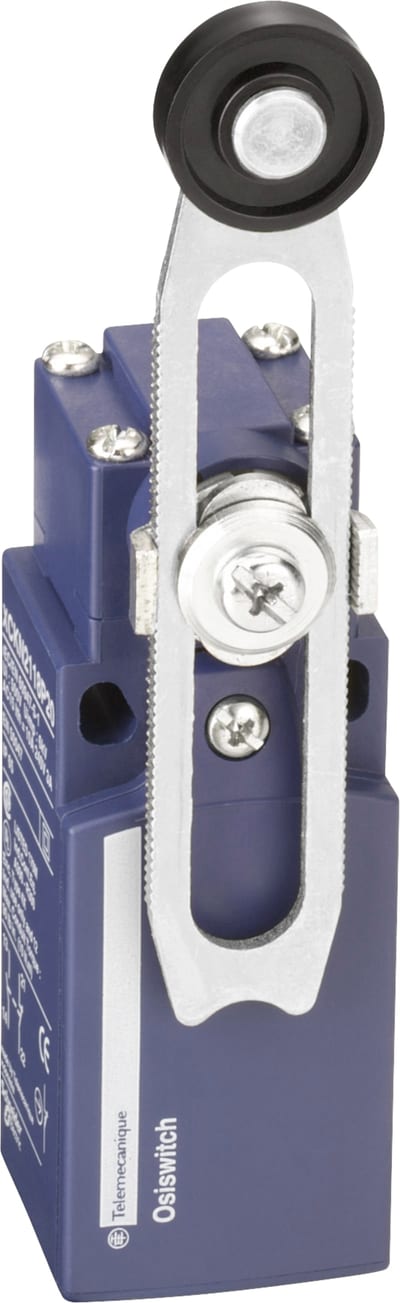

Telemecanique XCKN2545P20 Limit Switch, 1 NC + 1 NO, M20 entry
