Telemecanique XUSL2E30H076NWH Safety Light Curtain Type 2, 30 mm resolution, hand detection, 760 mm protected height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL2E30H076NWH type 2 safety light curtain, 30 mm resolution, hand detection, 760 mm protected height.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL2E30H076NWH
- EAN / GTIN
- 3666916028810
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 1
- Width sensor
- 75 mm
- Height of sensor
- 920 mm
- Length of sensor
- 76 mm
- Detection capability for test bodies
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -25–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 11 ms
- Resolution of the light curtain
- 30 mm
- Reduced resolution
- No
- Transmission range of the safety field
- 10 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 760 mm
- Type of safety according to IEC 61496-1
- 2
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916028810
- SAP 1000651983
- Code 8639322
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS9C4A2A1G13 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 25 mm, 0–10 V analog, screw terminals (Pg cable gland)
Telemecanique
Telemecanique XCKN2545P20 Limit Switch, 1 NC + 1 NO, M20 entry
Telemecanique
Telemecanique OsiSense XS508B1NAM8 Inductive Proximity Sensor — M8 barrel, Sn 1.5 mm, NPN, NO, M8 connector
Telemecanique
Telemecanique OsiSense XS612B3DBL2 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, 2-Wire DC, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XZCP0266L2 Sensor Cable, M8 female angled, 3-pin, 2 m
Telemecanique

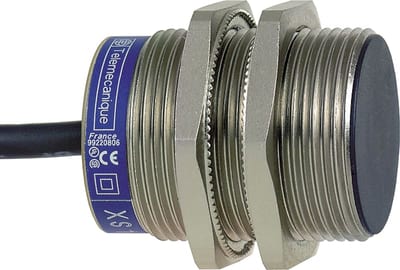

Telemecanique OsiSense XS1N30PA349 Inductive Proximity Sensor — M30 barrel, Sn 20 mm, PNP, NO, pre-wired cable (2 m)
Telemecanique

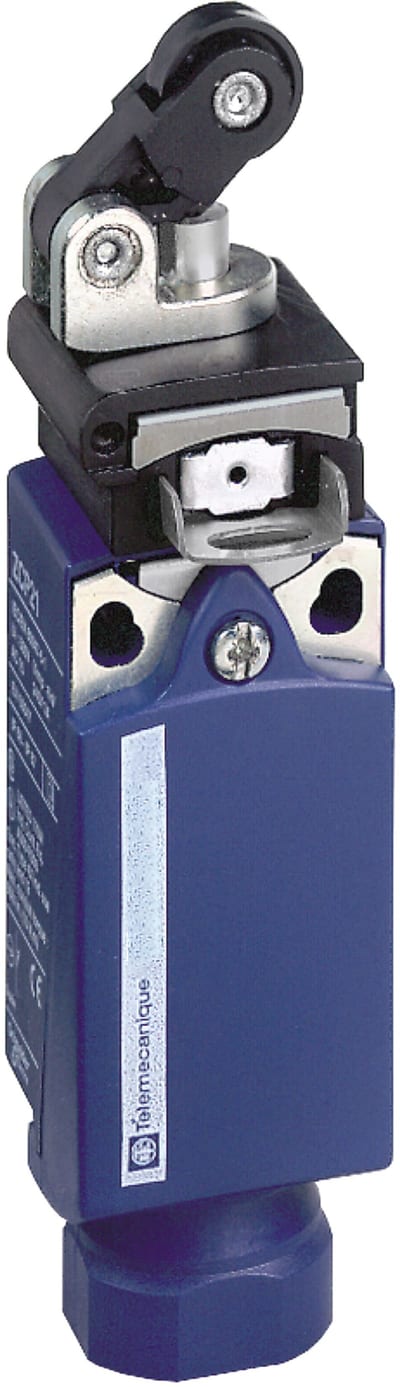

Telemecanique XCPR limit switch, plastic body, thermoplastic roller lever plunger head, horizontal actuation, 1 NC + 1 NO, slow action, manual reset, M20 x 1.5 cable entry, IP67K XCPR2521P20
