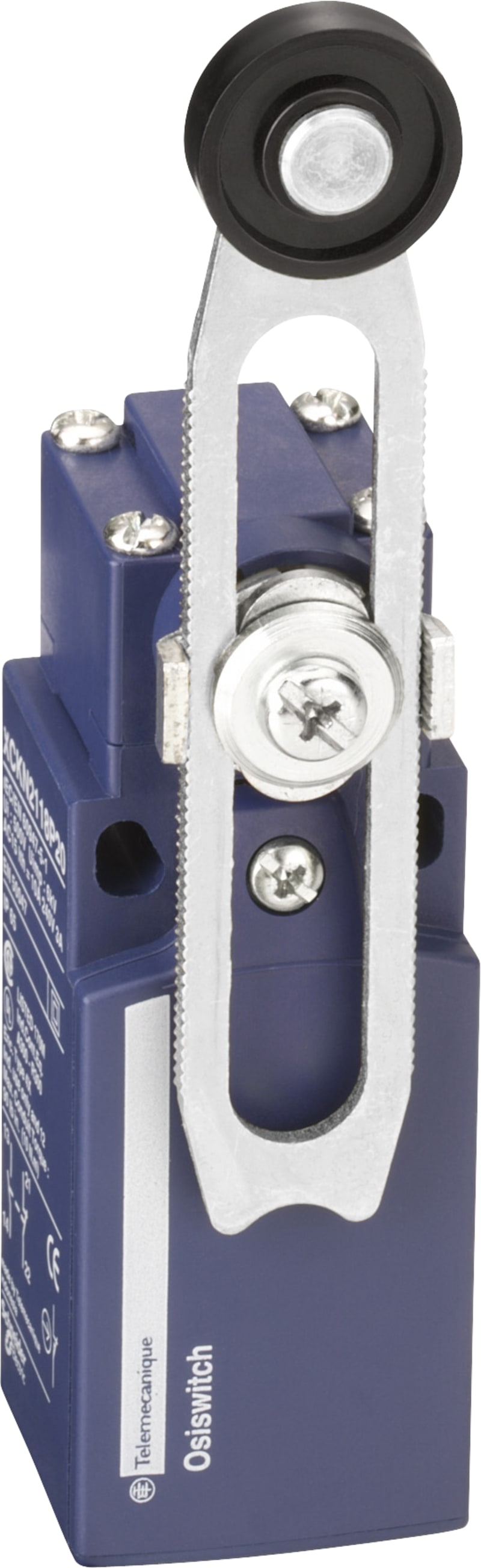

Telemecanique XCKN2545P20 Limit Switch, 1 NC + 1 NO, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKN2545P20 limit switch (position switch), 1 NC + 1 NO contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKN2545P20
- EAN / GTIN
- 3666916054871
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- NC + NO
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Adjustable roller lever
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 157 mm
- Length of sensor
- 42 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916054871
- SAP 1000051263
- Code 8824289
Product Documentation
