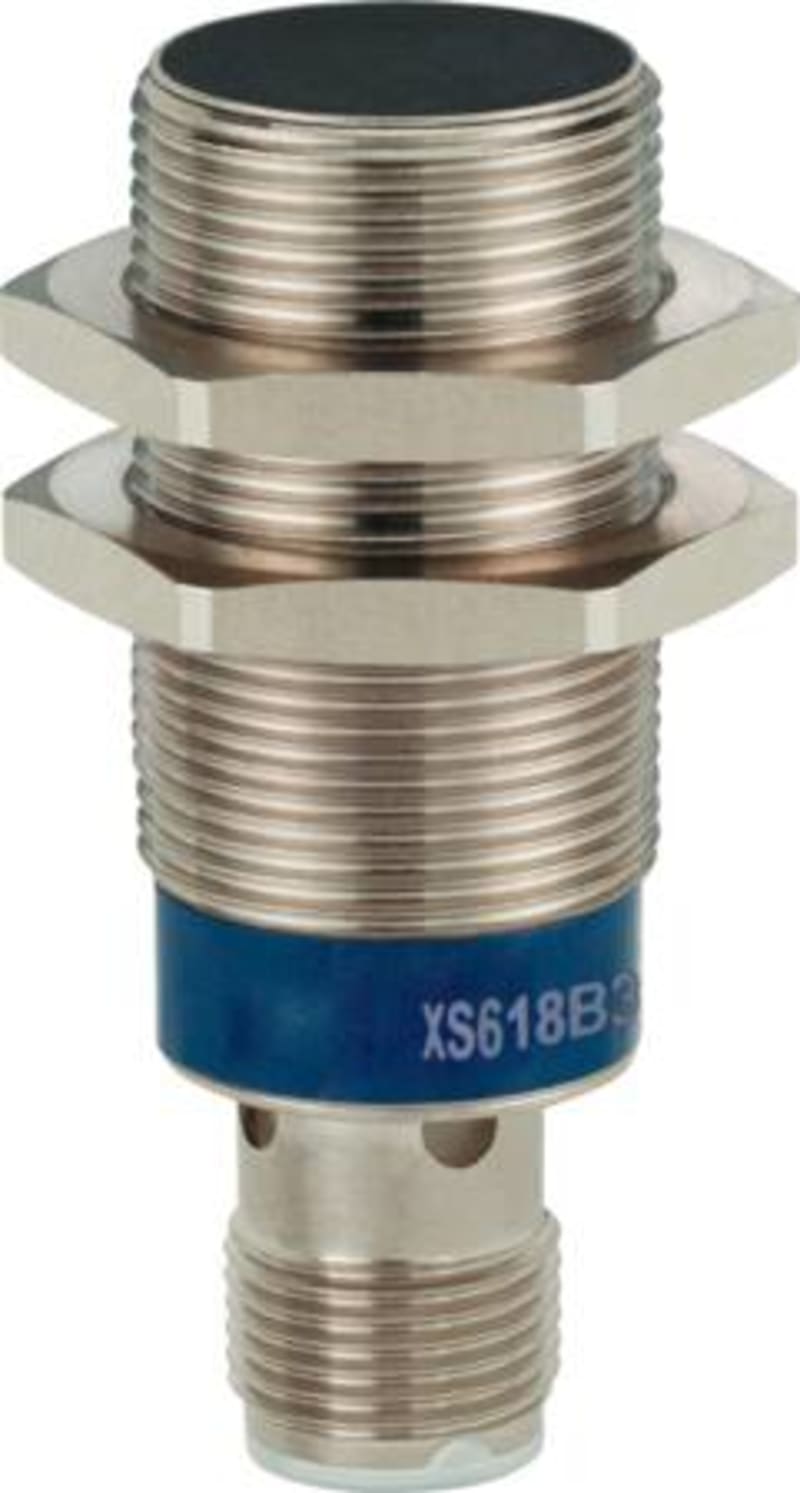

Telemecanique OsiSense XS618B3DAM12 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, 2-Wire DC, NO, M12 connector (4-Pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS618B3DAM12 is an OsiSense XS inductive proximity sensor in an M18 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 8 mm. It provides a 2-wire DC output, switching NO (normally open), via M12 connector (4-pin). Rated supply 12…24 V DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS618B3DAM12
- EAN / GTIN
- 3666916012260
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M18 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 8 mm
- Output
- 2-wire DC
- Switching function
- NO (normally open)
- Connection
- M12 connector (4-pin)
- Rated supply voltage
- 12…24 V DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 44 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916012260
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS118BHPAL5 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique XMLA035A2S12 Pressure Switch, 1.5–35 bar
Telemecanique
Telemecanique XMLA035C2C11 Pressure Switch, 0–35 bar, DIN connector
Telemecanique
Telemecanique Harmony XB6 key-selector head, 2 positions with spring return
ZB6DGL
Telemecanique
Selector switch 3 POS Fixed
ZB6DD23
Telemecanique
Telemecanique XUSL4MB40H121N Type 4 Safety Light Grille with Integrated Muting, 1210 mm protected height
Telemecanique
Telemecanique XMLR600M1P25 Pressure Sensor with Display, 0–600 bar, 4–20 mA + 1× PNP
Telemecanique

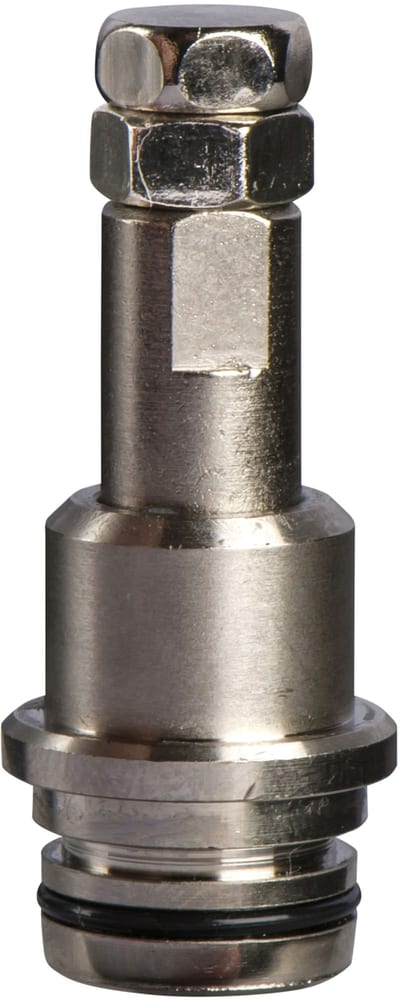

Telemecanique ZCE14 Operating Head for XC Standard Limit Switches
