Selector switch 3 POS Fixed
Pricing
Request a quote
We reply within 24 hours
Product Description

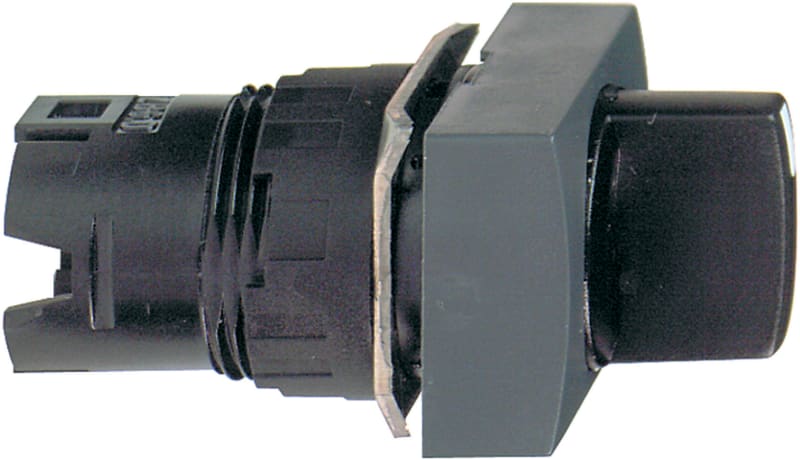

Telemecanique ZB6DD23 Selector switch 3 pos fixed.
Technical Specifications
- Manufacturer part number (MPN)
- ZB6DD23
- EAN / GTIN
- 3389110776874
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Range of product
- Harmony XB6
- Product or component type
- Head for selector switch
- Device short name
- ZB6
- Bezel material
- Plastic
- Mounting diameter
- 16 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Rectangular
- Type of operator
- stay put
- Operator profile
- Black standard handle
- Operator position information
- 3 positions 60°
- CAD overall width
- 24 mm
- CAD overall height
- 18 mm
- CAD overall depth
- 43 mm
- Product weight
- 0.018 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- NEMA degree of protection
- NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94
- Standards
- IEC 60947-5-1; UL 508; IEC 60947-5-5; JIS C 852; IEC 60947-1; JIS C8201-5-1; CSA C22.2 No 14; JIS C8201-1
- Product certifications
- GOST; UL; CCC; CSA
- Vibration resistance
- +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 75
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 16.2 mm
- Number of switch positions
- 3
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Rectangular
- Type of control element
- Short rotary handle
- Colour control element
- Black
- Switching function latching
- Yes
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110776874
- SAP 1000254086
- Code 8115078
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSL4MB40H121N Type 4 Safety Light Grille with Integrated Muting, 1210 mm protected height
Telemecanique
Telemecanique XMLR600M1P25 Pressure Sensor with Display, 0–600 bar, 4–20 mA + 1× PNP
Telemecanique
Telemecanique ZCE14 Operating Head for XC Standard Limit Switches
Telemecanique
Telemecanique XZCR1111064D03 Sensor Cable, M12 to M12, 5-pin, 3 m
Telemecanique
Telemecanique XUB1ANBNL2 Photoelectric Sensor M18, Retroreflective, Plastic, NPN, 2 m cable
Telemecanique
Telemecanique XCSDMC59010EX Coded Magnetic Safety Switch, 1 NC + 1 NO, 10 m cable, ATEX
Telemecanique
Telemecanique XUB1BPBNM12 Photoelectric Sensor M18, Retroreflective, Metal, PNP, M12 connector
Telemecanique
Telemecanique XS618B1PAM12TF Inductive Proximity Sensor, M18, M12 connector
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB6DD23?
- ZB6DD23 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZB6DD23.
- What is the HS code for ZB6DD23?
- The customs tariff (HS) code for ZB6DD23 is 8538.90.
- Who manufactures ZB6DD23?
- ZB6DD23 is a Telemecanique product in the Control & Automation range.
- Is a datasheet available for ZB6DD23?
- Yes — the ZB6DD23 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB6DD23?
- The minimum order quantity is 1.
- Is ZB6DD23 available?
- Yes — ZB6DD23 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
