Telemecanique Harmony XB6 key-selector head, 2 positions with spring return

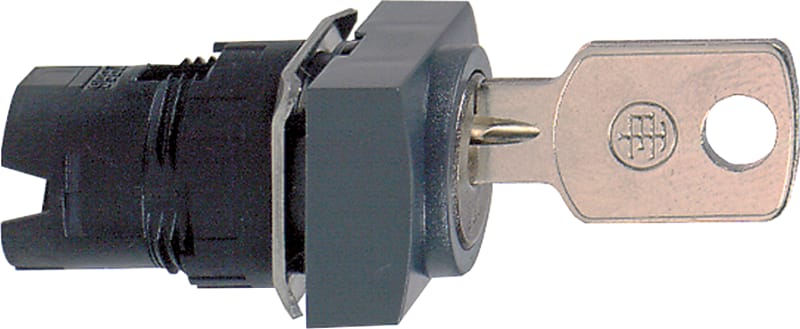

Telemecanique ZB6DGL Harmony XB6 head for a key-selector switch with two positions and centre spring return. Ø16 mm rectangular black bezel with a Key 200 keylock, centre-withdrawal. Rated IP65 with a plastic bezel for standard industrial control panels.

Manufacturer part number (MPN)

ZB6DGL

EAN / GTIN

3389110785418

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XB6

Product or component type

Head for key selector switch

Device short name

ZB6

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Rectangular

Type of operator

To centre spring return

Operator profile

Black key switch

Operator position information

2 positions

Type of keylock

Key 200

Key withdrawal position

Center

CAD overall width

24 mm

CAD overall height

18 mm

CAD overall depth

55 mm

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

NEMA degree of protection

NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94

Standards

JIS C8201-5-1; IEC 60947-1; IEC 60947-5-5; UL 508; JIS C 852; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

GOST; CSA; CCC; UL

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

60

Number of Units in Package 3

1920

Country of origin

FR

Warranty (in months)

18

Hole diameter

16.2 mm

Number of switch positions

2

Suitable for lighting

No

Spring-return

Yes

Colour front ring

Black

Degree of protection (IP), front side

IP65

Material front ring

Plastic

With front ring

Yes

Construction type lens

Rectangular

Type of control element

Key

Colour control element

Black

Switching function latching

No

HS Code

8538.90
