Telemecanique OsiSense XS508BLNBM12 Inductive Proximity Sensor — M8 barrel, Sn 1.5 mm, NPN, NO, M12 connector (4-Pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS508BLNBM12 is an OsiSense XS inductive proximity sensor in an M8 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 1.5 mm. It provides a NPN (3-wire DC) output, switching NO (normally open), via M12 connector (4-pin). IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS508BLNBM12
- EAN / GTIN
- 3666916013687
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M8 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 1.5 mm
- Output
- NPN (3-wire DC)
- Switching function
- NO (normally open)
- Connection
- M12 connector (4-pin)
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916013687
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCKJ2H7 Limit Switch Body, Metal, 2NO+2NC, Snap-action
Telemecanique
Telemecanique XS130B3PAL5 Inductive Proximity Sensor Ø30 mm, Threaded, PNP NO, 5 m cable
Telemecanique
Telemecanique OsiSense XS8E1A1PAL2 Inductive Proximity Sensor — 26 × 26 mm block, Sn 15 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique OsiSense XS8C1A1NAL2 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, NPN, NO, pre-wired cable
Telemecanique
Limit switch, rotary roller/arm NO+NC M20 (XCNR2518P20)
Telemecanique
Telemecanique XMLPM25BD21F Pressure Transmitter, 0–25 bar, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XMLR025G0T25 Pressure Sensor with Display, 0–25 bar, 4–20 mA
Telemecanique

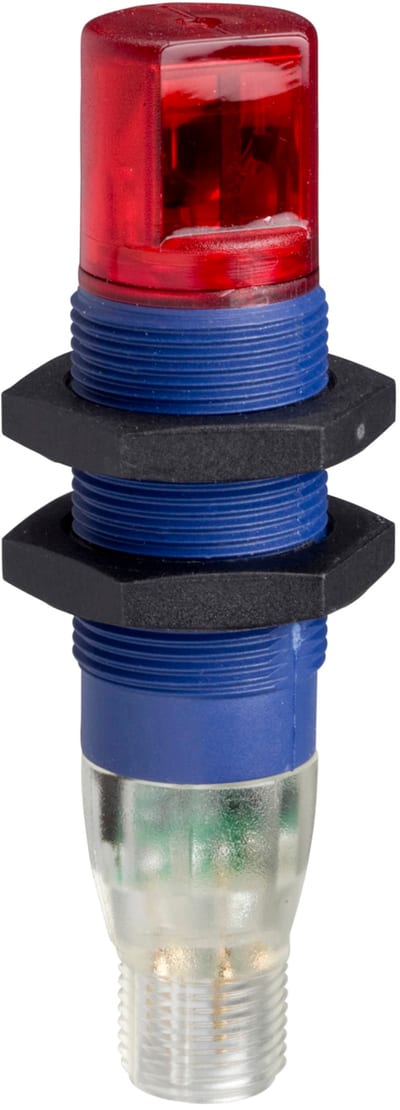

Telemecanique XUB1BPAWM12 Photoelectric Sensor M18, Metal, PNP, M12 connector
