Telemecanique ZCKJ2H7 Limit Switch Body, Metal, 2NO+2NC, Snap-action
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKJ2H7 limit switch body (contact block), metal housing, 2NO+2NC snap-action contacts; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKJ2H7
- EAN / GTIN
- 3666916044452
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Contact configuration
- 2 NO + 2 NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- No
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 40 mm
- Height of sensor
- 77 mm
- Length of sensor
- 44 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as change-over contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916044452
- SAP 1000341936
- Code 8376767
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XS130B3PAL5 Inductive Proximity Sensor Ø30 mm, Threaded, PNP NO, 5 m cable
Telemecanique
Telemecanique OsiSense XS8E1A1PAL2 Inductive Proximity Sensor — 26 × 26 mm block, Sn 15 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique OsiSense XS8C1A1NAL2 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, NPN, NO, pre-wired cable
Telemecanique
Limit switch, rotary roller/arm NO+NC M20 (XCNR2518P20)
Telemecanique
Telemecanique XMLPM25BD21F Pressure Transmitter, 0–25 bar, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XMLR025G0T25 Pressure Sensor with Display, 0–25 bar, 4–20 mA
Telemecanique
Telemecanique XUB1BPAWM12 Photoelectric Sensor M18, Metal, PNP, M12 connector
Telemecanique

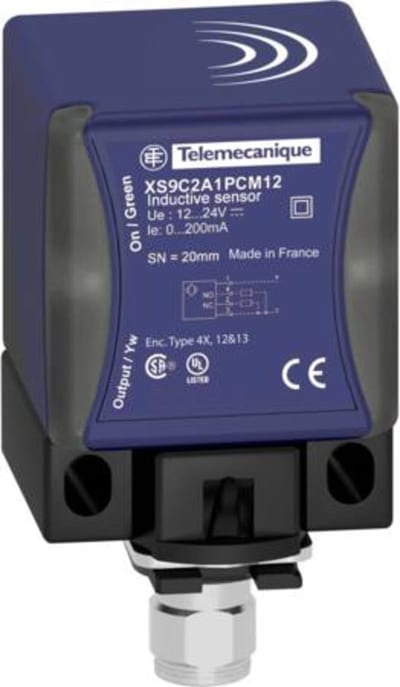

Telemecanique OsiSense XS9C2A1PCM12 Inductive Proximity Sensor — 40 × 40 × 70 mm block, Sn 20 mm, PNP, NO or NC, M12 connector (4-Pin)
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZCKJ2H7?
- ZCKJ2H7 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZCKJ2H7.
- What is the HS code for ZCKJ2H7?
- The customs tariff (HS) code for ZCKJ2H7 is 8536.90.
- Who manufactures ZCKJ2H7?
- ZCKJ2H7 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for ZCKJ2H7?
- Yes — the ZCKJ2H7 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZCKJ2H7?
- The minimum order quantity is 1.
- Is ZCKJ2H7 available?
- Yes — ZCKJ2H7 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
