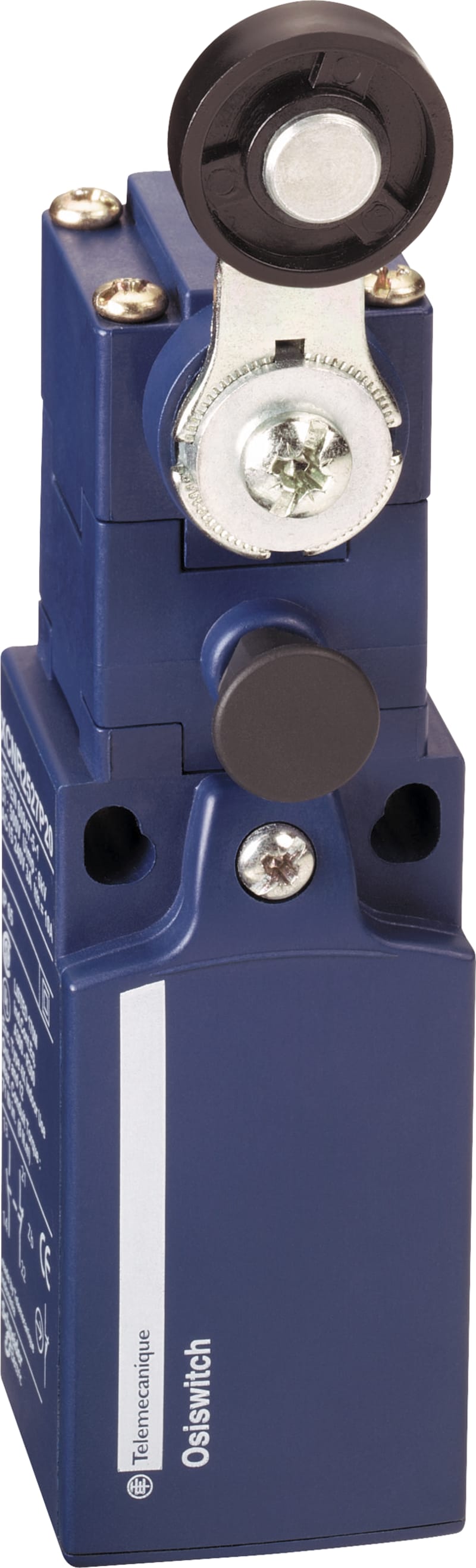

Limit switch, rotary roller/arm NO+NC M20 (XCNR2518P20)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCNR2518P20 compact limit switches in accordance with CENELEC EN 50119 with manual reset.
Technical Specifications
- Manufacturer part number (MPN)
- XCNR2518P20
- EAN / GTIN
- 3666916050354
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- NO + NC
- Switching function
- Slow-action switch and quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Roller lever
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 123.1 mm
- Length of sensor
- 44.5 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of o
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916050354
- SAP 1000077738
- Code 8807541
