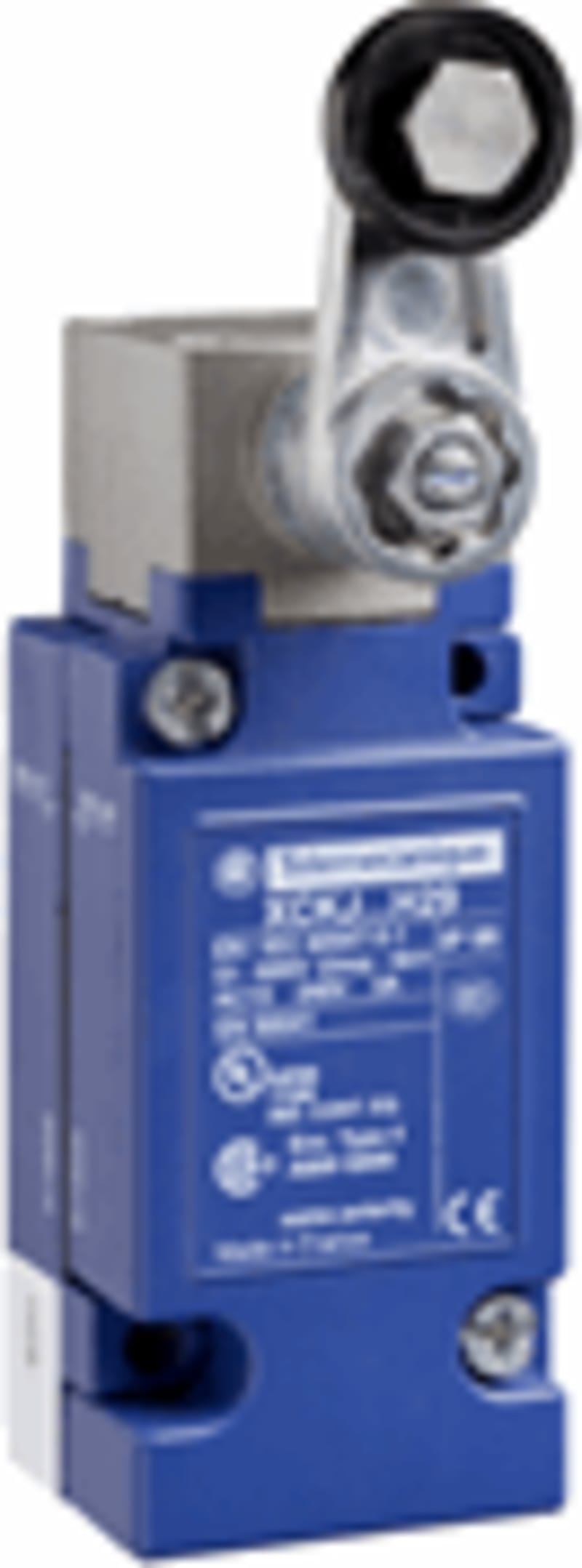

Telemecanique XCKJ110513H29 Limit Switch, Short Metal Roller Lever, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKJ110513H29 limit switch (position switch), short metal roller lever actuator, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKJ110513H29
- EAN / GTIN
- 3666916056264
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Roller lever
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Width sensor
- 43 mm
- Height of sensor
- 84 mm
- Length of sensor
- 36 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as change-over contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916056264
- SAP 1000341724
- Code 8376479
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUB0BNSNM12 Multimode Photoelectric Sensor, Metal, NPN, programmable, M12 connector
Telemecanique
Telemecanique XUZASK004 Angled Mounting Bracket for XUK Laser Sensors
Telemecanique
Telemecanique XUB0BPSNL5 Multimode Photoelectric Sensor, Metal, PNP, programmable, 5 m cable
Telemecanique
Telemecanique XMLA300D2C11 Pressure Switch, 20–300 bar, DIN connector
Telemecanique
Telemecanique XMLP025BD21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XMLA300E2S11 Pressure Switch, 20–300 bar
Telemecanique
Telemecanique XCSRC11AM12 Safety Limit Switch, M12 connector
Telemecanique
Telemecanique XY2CEDA196H7 Emergency Stop Rope Pull Switch, Double-Sided, NPT Entry, 2 × 100 m Rope
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCKJ110513H29?
- XCKJ110513H29 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCKJ110513H29.
- What is the HS code for XCKJ110513H29?
- The customs tariff (HS) code for XCKJ110513H29 is 8536.90.
- Who manufactures XCKJ110513H29?
- XCKJ110513H29 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XCKJ110513H29?
- Yes — the XCKJ110513H29 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCKJ110513H29?
- The minimum order quantity is 1.
- Is XCKJ110513H29 available?
- Yes — XCKJ110513H29 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
