Telemecanique XX2V3A1PFM12 Ultrasonic Sensor M30, PNP, NO, Range 1 m, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description

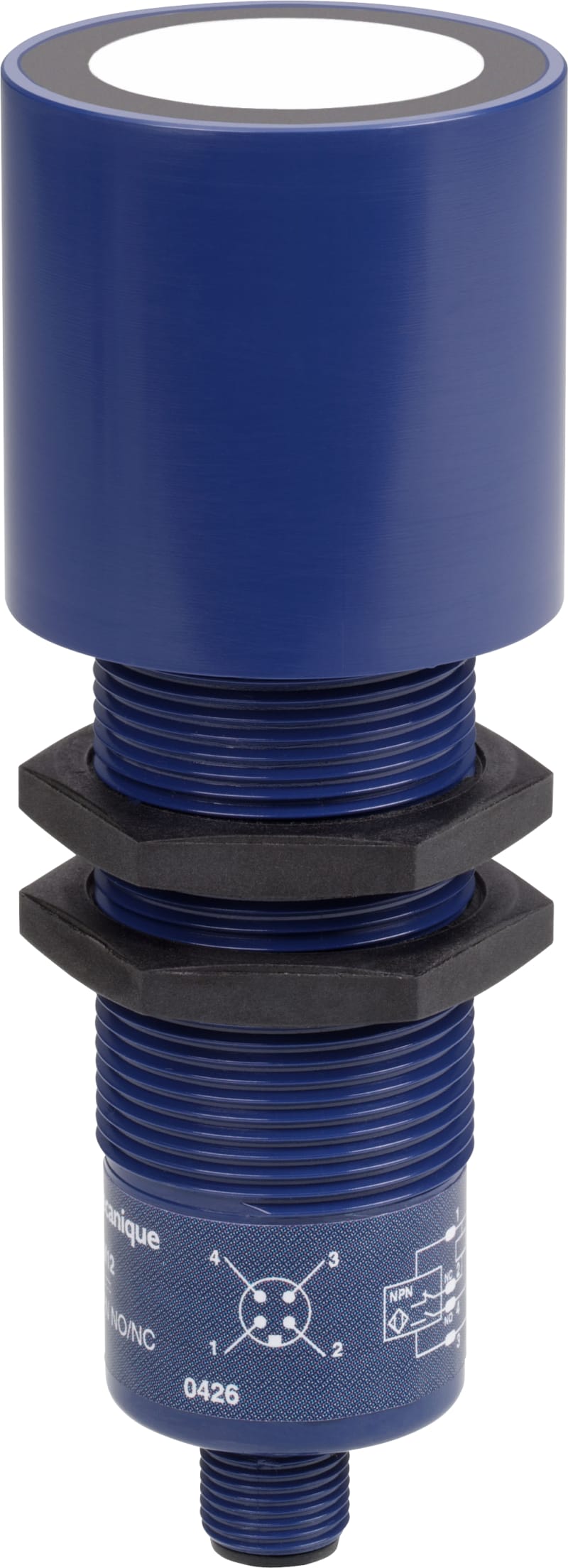

Telemecanique OsiSense XX2V3A1PFM12 ultrasonic sensor, M30 body, PNP NO output, range 1 m, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XX2V3A1PFM12
- EAN / GTIN
- 3666916079959
- Sales unit
- pcs
- Diameter
- 30 mm
- Output type
- PNP
- Contact configuration
- NO
- Connector
- M12
- Voltage type
- AC/DC
- Max. output current
- 10 mA
- Housing material
- Plastic
- Switching frequency
- 200 Hz
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Normally open contact (NO)
- Blind zone
- 300 mm
- Setting procedure
- Teach-In
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 100 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 2.54 %
- Synchronisation possible
- No
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 44 mm
- Diameter sensor
- 30 mm
- Height of sensor
- 44 mm
- Length of sensor
- 118 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916079959
- SAP 1000707778
- Code 8324606
