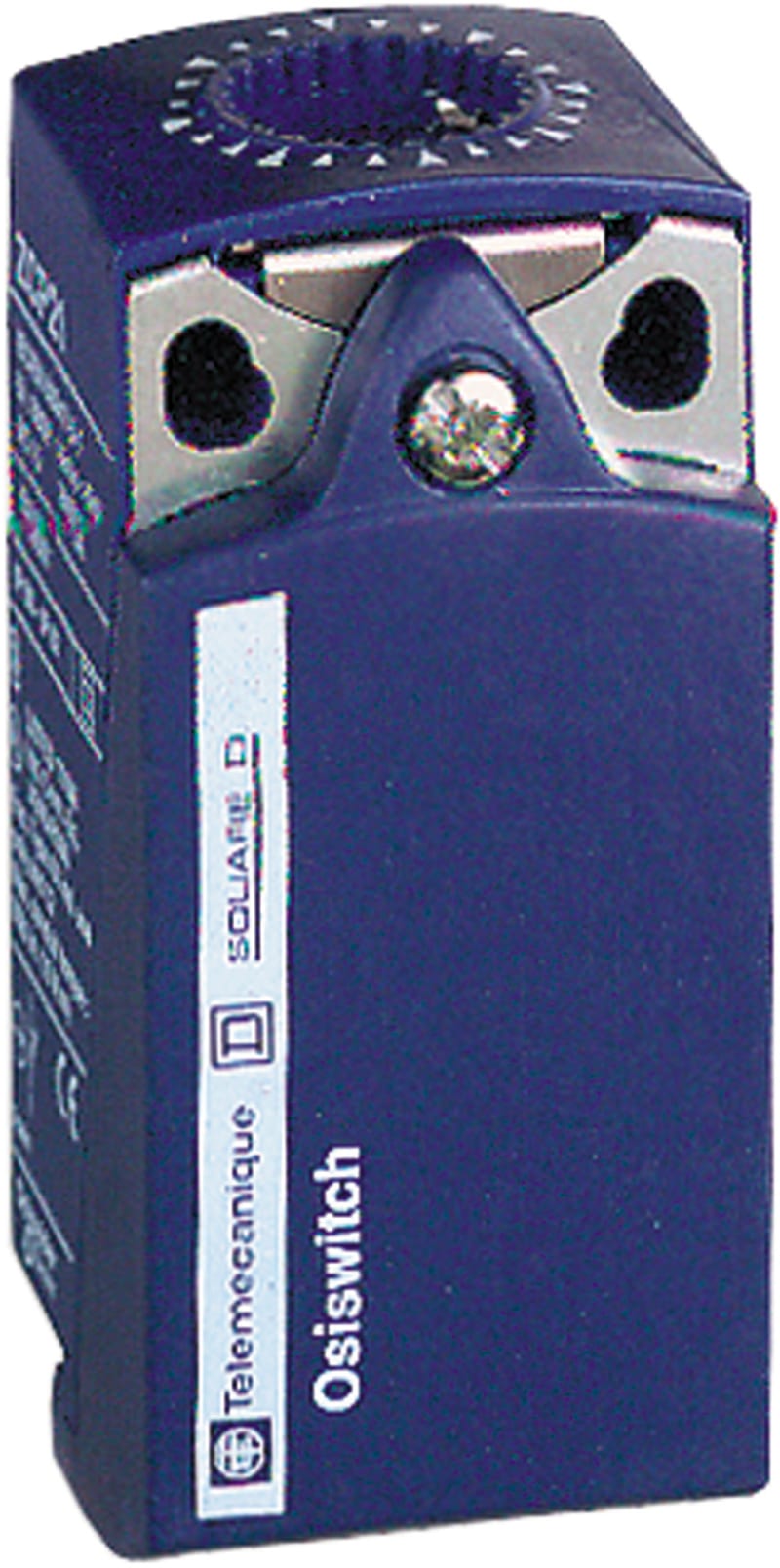

Telemecanique ZCP31 Limit Switch Body, Plastic, 2 NO + 1 NC, Snap Action
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCP31 plastic limit switch body (contact body) for the ZCP compact programme, 2 NO + 1 NC contacts, snap action, combine with a ZCE operating head.
Technical Specifications
- Manufacturer part number (MPN)
- ZCP31
- EAN / GTIN
- 3666916091890
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 81 pcs
- Contact configuration
- 2 NO + NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 0.75 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 31 mm
- Height of sensor
- 65 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 2
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916091890
- SAP 1000256820
- Code 81143162
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUYFANEP60080 Infrared Fork Sensor 59 × 80 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique ZB6DE3 Illuminated Pushbutton Head, Green, for LED Module, Harmony XB6
Telemecanique
Telemecanique XUX9APBNT16 Photoelectric Sensor, Polarised Retroreflective, PNP, screw terminals
Telemecanique
Telemecanique XS4P12MB230 Inductive Proximity Sensor, M12, M12 connector
Telemecanique

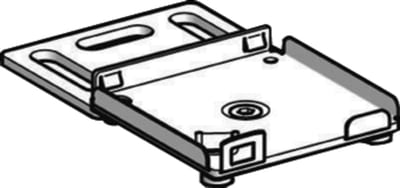

Telemecanique XUZASK002 Angled Mounting Bracket for XUK Laser Sensors
Telemecanique

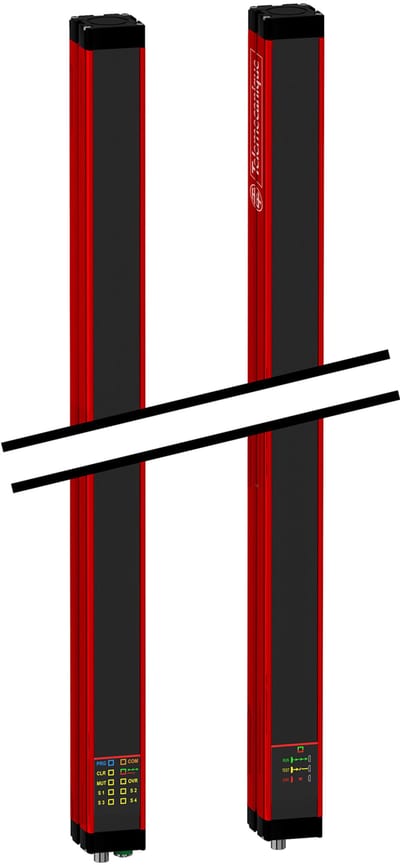

Telemecanique XUSL4MB30H106N Type 4 Safety Light Grille with Integrated Muting, 1060 mm protected height
Telemecanique

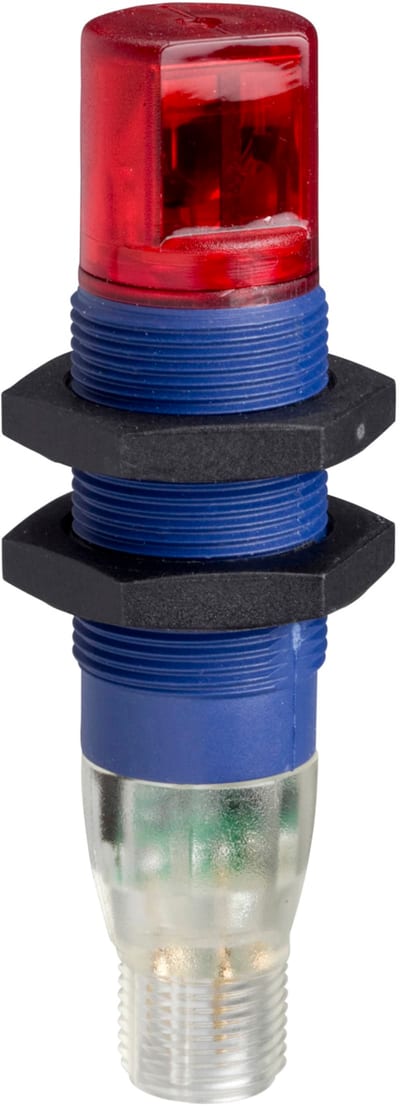

Telemecanique XUB1APAWM12 Photoelectric Sensor M18, Plastic, PNP, M12 connector
