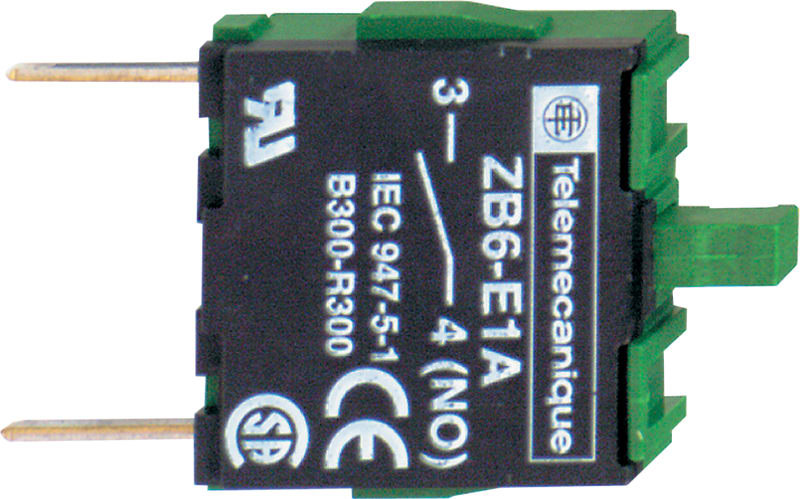

Contact Block Loddepin Silver 1NO

Telemecanique ZB6E1A With accessories for mener vi parts of entire komponenter. Entire komponenter (XB.) is satt together of parts. These the parts available nedenfor and starter betegnelsen with the letter Z.

Manufacturer part number (MPN)

ZB6E1A

EAN / GTIN

3389110775259

Sales unit

pcs

Package quantity

10 pcs

Contact configuration

1 NO

Range of product

Harmony XB6

Product or component type

Contact block

Device short name

ZB6

Sale per indivisible quantity

10

Contacts type and composition

1 NO

Contact operation

Slow-break

Contact block type

Single

Connections - terminals

Pins for printed circuit board

Contacts material

Silver alloy (Ag/Ni)

Terminals description ISO n°1

(3-4)NO

Product weight

0.004 kg

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

2 mm (NO changing electrical state); 3.5 mm (total travel)

Operating force

1.6 N NO changing electrical state

Mechanical durability

5000000 cycles

Short-circuit protection

6 A cartridge fuse type gG

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300; 1.5 A at 240 V, AC-15, B300; 0.1 A at 250 V, DC-13, R300; 0.22 A at 125 V, DC-13, R300

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 60947-1; IEC 60947-5-4; JIS C 852; IEC 60947-5-1; CSA C22.2 No 14; JIS C 4520; UL 508

Product certifications

GOST; CSA; CCC; UL

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

400

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50
