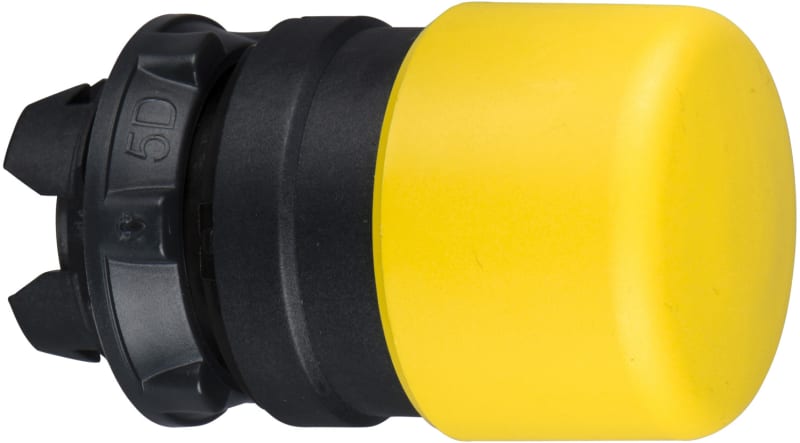

Mushroom Button Yellow Ø30mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB5AC54 individual mushroom head buttons in plastic for use with the XB5 series. Supplied as a 30, 40 or 60 mm mushroom. (Not emergency-stop buttons.)
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AC54
- EAN / GTIN
- 3389110904932
- Sales unit
- pcs
- Package quantity
- 21 pcs
- Diameter
- 30 mm
- Range of product
- Harmony XB5
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Head type
- Standard
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Yellow mushroom Ø 30 mm, unmarked
- Device presentation
- Basic element
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 52 mm
- Product weight
- 0.027 kg
- Mechanical durability
- 5000000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110904932
- SAP 1000471482
- Code 8581212
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS8C1A1PBM8 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, PNP, NC, M8 connector
Telemecanique
Telemecanique XCSA701 Safety Limit Switch, 2 NC + 1 NO
Telemecanique
Telemecanique XMEP400BT71F Pressure Transmitter, 0–400 bar, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique OsiSense XS8C1A1PBL2 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, PNP, NC, pre-wired cable
Telemecanique
Telemecanique OsiSense XS8C1A1PAL2 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique XY2CZ702 Emergency Stop Rope Pull Switch
Telemecanique
Telemecanique XZCPA1164L10 Sensor Cable, M12 female, 5-pin, PVC, 10 m
Telemecanique
Telemecanique XCMD2115M12 Limit Switch, Short Roller Lever, Metal Body, M12 connector
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB5AC54?
- ZB5AC54 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZB5AC54.
- What is the HS code for ZB5AC54?
- The customs tariff (HS) code for ZB5AC54 is 8538.90.
- Who manufactures ZB5AC54?
- ZB5AC54 is a Telemecanique product in the Control & Automation range.
- Is a datasheet available for ZB5AC54?
- Yes — the ZB5AC54 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB5AC54?
- The minimum order quantity is 1.
- Is ZB5AC54 available?
- Yes — ZB5AC54 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
