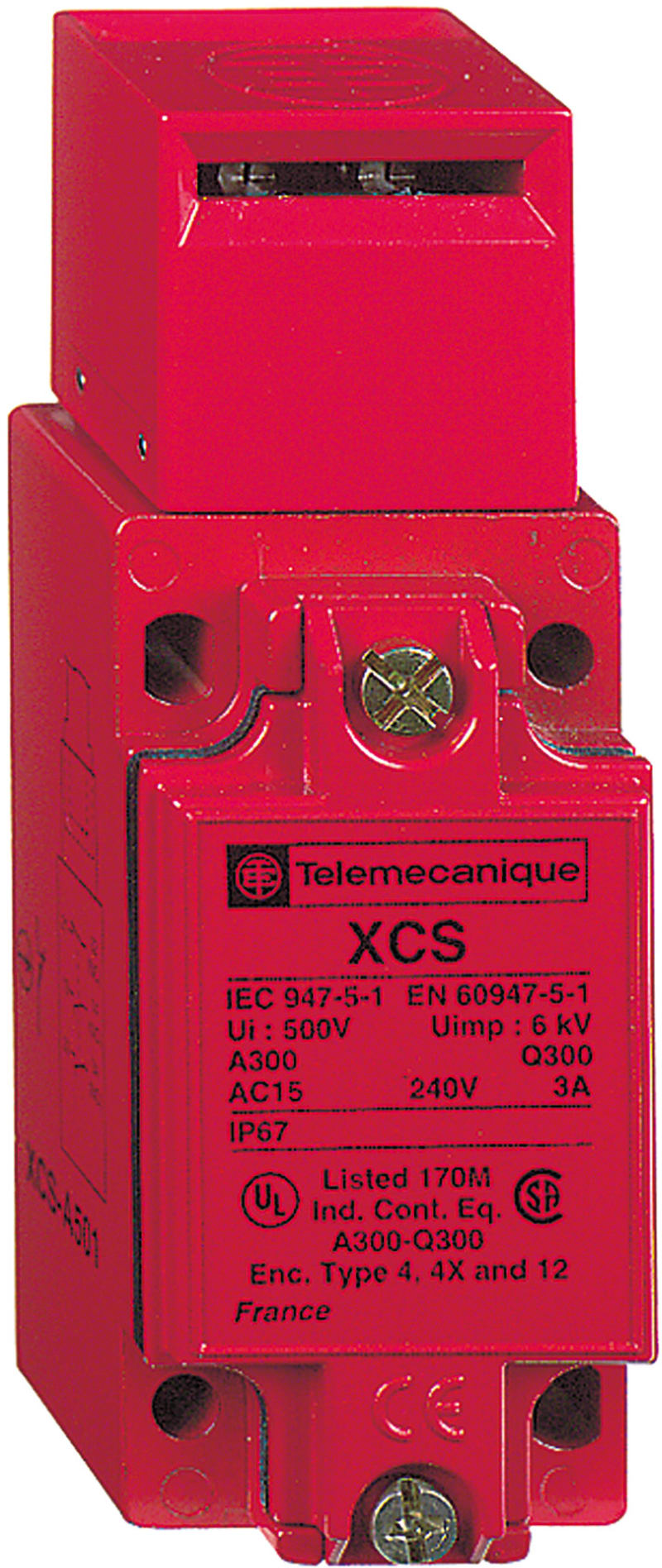

Telemecanique XCSA701 Safety Limit Switch, 2 NC + 1 NO
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSA701 safety limit switch with positive opening contacts, 2 NC + 1 NO contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSA701
- EAN / GTIN
- 3666916049341
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- 2 NC + 1 NO
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP67K
- Forced opening
- Yes
- Type of interface
- None
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 40 mm
- Height of sensor
- 114 mm
- Length of sensor
- 44 mm
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916049341
- SAP 1000065111
- Code 8734490
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMEP400BT71F Pressure Transmitter, 0–400 bar, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique OsiSense XS8C1A1PBL2 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, PNP, NC, pre-wired cable
Telemecanique
Telemecanique OsiSense XS8C1A1PAL2 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique XY2CZ702 Emergency Stop Rope Pull Switch
Telemecanique
Telemecanique XZCPA1164L10 Sensor Cable, M12 female, 5-pin, PVC, 10 m
Telemecanique
Telemecanique XCMD2115M12 Limit Switch, Short Roller Lever, Metal Body, M12 connector
Telemecanique
Telemecanique XGSZCNF01 RFID Ethernet Communication Box
Telemecanique
Telemecanique XZCPV12V12L2 Sensor Cable, M12 female, 5-pin, PVC, 2 m
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSA701?
- XCSA701 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSA701.
- What is the HS code for XCSA701?
- The customs tariff (HS) code for XCSA701 is 8536.90.
- Who manufactures XCSA701?
- XCSA701 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XCSA701?
- Yes — the XCSA701 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSA701?
- The minimum order quantity is 1.
- Is XCSA701 available?
- Yes — XCSA701 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
