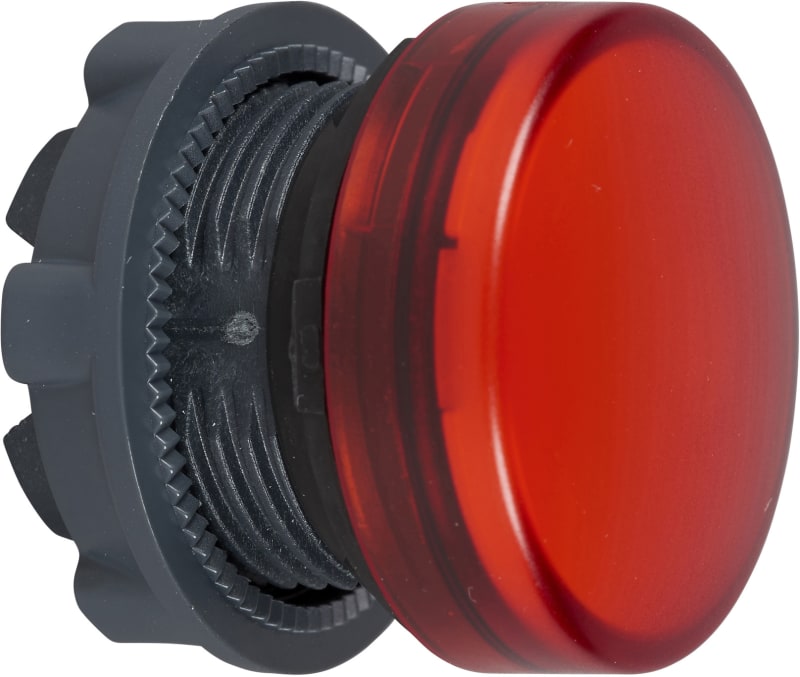

Lamp Head RED LED for Label
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB5AV043E Pilot Light Head in plastic for LED with lens in red colour for label.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AV043E
- EAN / GTIN
- 3389110290387
- Sales unit
- pcs
- Range of product
- Harmony XB5
- Product or component type
- Head for pilot light
- Product compatibility
- Universal LED
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Red
- Operator additional information
- With plain lens, for insertion of legend
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 31 mm
- Product weight
- 0.017 kg
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- P1 in front mounting with integral LED; P2 in front mounting with integral LED and transformer; PF1 in front mounting with integral LED; PR1 in rear mounting with integral LED
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653
- Enclosure Type
- UL type 4X/13
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- IK degree of protection
- IK05 conforming to IEC 50102
- Standards
- UL 508; IEC 60947-1; CSA C22.2 No 14; IEC 60947-5-4; IEC 60947-5-1; JIS C8201-5-1; IEC 60947-5-5; JIS C8201-1
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour lens
- Red
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP66
- Width opening
- 29 mm
- Height opening
- 29 mm
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Suitable for number of built-in signal lights
- 1
- Type of lens
- High
- Degree of protection (NEMA)
- 4X, 13
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 3389110290387
- SAP 1000254578
- Code 81136186
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCC12MCM50B Field-Wireable Connector, M12, Male, Angled, 5-pin, Metal
Telemecanique
Telemecanique XUM8APCNM8 Photoelectric Sensor, Diffuse with Background Suppression, M8 connector
Telemecanique
Telemecanique XCSDMR7902 Coded Magnetic Safety Switch
Telemecanique
Telemecanique XCSPA493 Safety Limit Switch, 2 NC
Telemecanique
Telemecanique XUSZMD166 Deflection Mirror for Safety Light Curtains, 1750 mm
Telemecanique
Telemecanique XUSL4MB40H181N Type 4 Safety Light Grille with Integrated Muting, 1810 mm protected height
Telemecanique
Telemecanique XCSRD210MDB Safety Limit Switch
Telemecanique
Telemecanique XCMD2106C12 Limit Switch, Cat's Whisker (Spring Rod), Metal Body, M12 connector (5-pin)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB5AV043E?
- ZB5AV043E can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZB5AV043E.
- What is the HS code for ZB5AV043E?
- The customs tariff (HS) code for ZB5AV043E is 8531.90.
- Who manufactures ZB5AV043E?
- ZB5AV043E is a Telemecanique product in the Control & Automation range.
- Is a datasheet available for ZB5AV043E?
- Yes — the ZB5AV043E datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB5AV043E?
- The minimum order quantity is 1.
- Is ZB5AV043E available?
- Yes — ZB5AV043E is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
