Telemecanique XUSL4MB40H181N Type 4 Safety Light Grille with Integrated Muting, 1810 mm protected height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4MB40H181N type 4 safety light grille with integrated muting function, 1810 mm protected height, for conveyor and palletiser openings where material must pass but persons must be detected.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4MB40H181N
- EAN / GTIN
- 3666916027196
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 50 mm
- Height of sensor
- 1895 mm
- Length of sensor
- 55 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- With muting function
- Yes
- Override possible
- No
- Response time
- 17.5 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 12 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 1810 mm
- Type of safety according to IEC 61496-1
- 4
- Voltage type
- DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP67
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916027196
- SAP 1200357486
- Code 82360805
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCSRD210MDB Safety Limit Switch
Telemecanique
Telemecanique XCMD2106C12 Limit Switch, Cat's Whisker (Spring Rod), Metal Body, M12 connector (5-pin)
Telemecanique
Telemecanique XUSL4E2BB051N Safety Light Grid Type 4, Body Detection, 2 Beams, 510 mm
Telemecanique

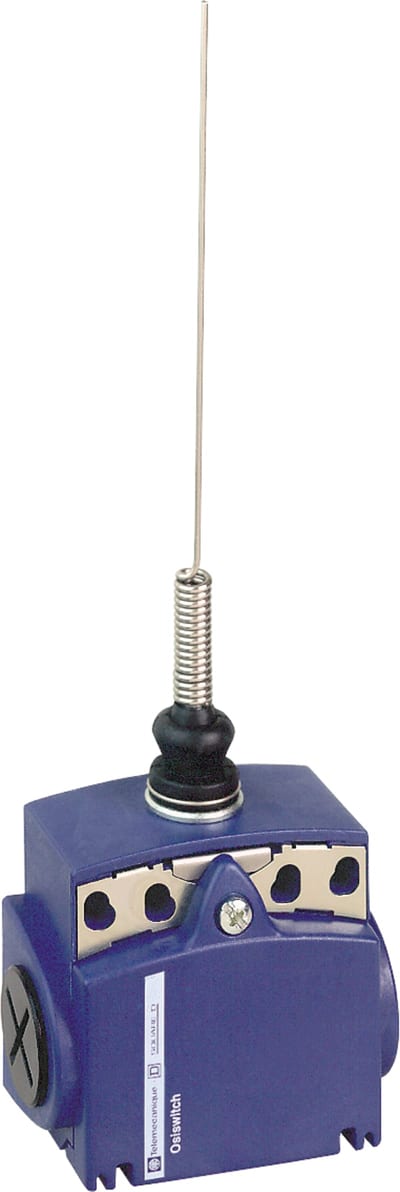

Telemecanique XCKT2106G11 Limit Switch, Cat's Whisker (Spring Rod), Plastic Body
Telemecanique
Telemecanique XMLR2D5G1P26 Pressure Sensor with Display, 0–2.5 bar, 4–20 mA + 1× PNP
Telemecanique

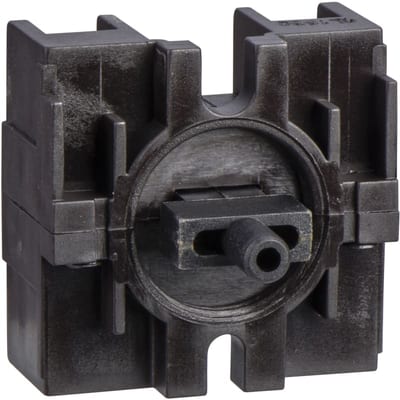

Contact element (XESB2011)
Telemecanique
Telemecanique XUSL4E30H061NS2 Safety Light Curtain Type 4, Hand Detection (30 mm), 610 mm Height
Telemecanique

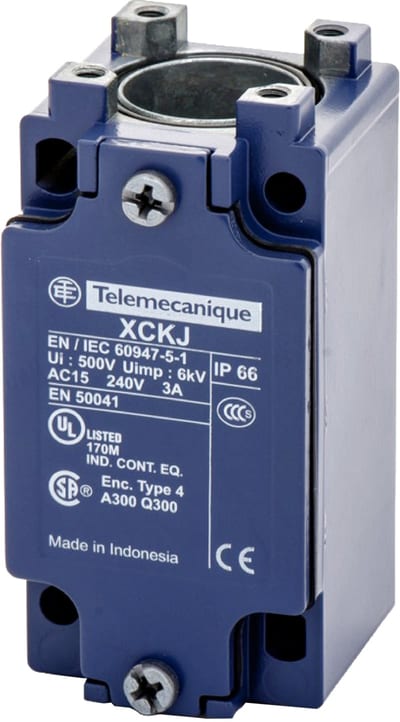

Telemecanique ZCKJ2H29 Limit Switch, M20 entry
