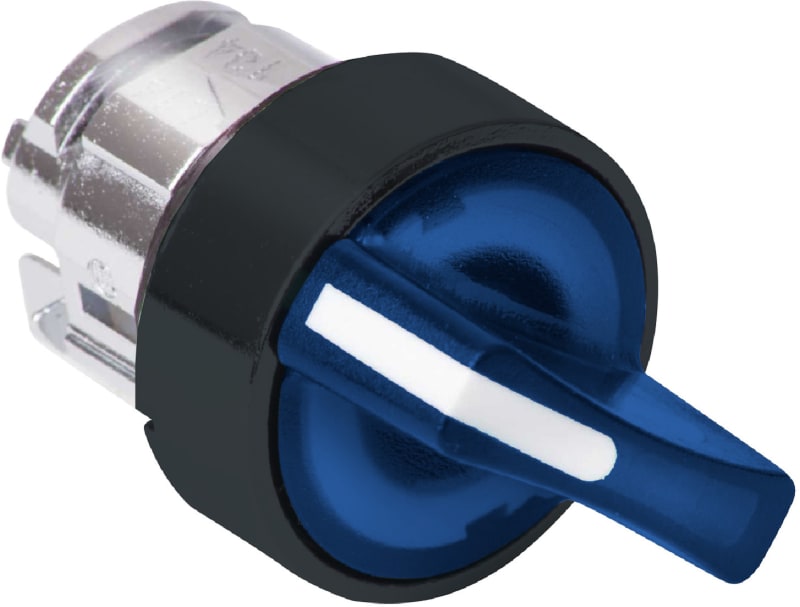

Selector w/light 3POS. spring return L/R BLUE
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB5AK1563 selector switches in plastic with illumination, for use with the XB5 series.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AK1563
- EAN / GTIN
- 3389110906240
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range of product
- Harmony XB5
- Product or component type
- Head for illuminated selector switch
- Product compatibility
- Universal LED
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- To centre spring return
- Operator profile
- Blue standard handle
- Operator position information
- 3 positions +/- 45°
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 43 mm
- Product weight
- 0.016 kg
- Mechanical durability
- 500000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- M3 for <4 contacts using single blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with inte
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110906240
- SAP 1000256857
- Code 8229494
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XY2CE6A250 Emergency Stop Rope Pull Switch
Telemecanique
Telemecanique XCSA803 Safety Limit Switch, 2 NC
Telemecanique
Telemecanique XY2CH13293 Emergency Stop Rope Pull Switch, 30 m Rope Span, 2 NC + 1 NO
Telemecanique
Telemecanique XUSL4E14F181N Safety Light Curtain Type 4, Finger Detection (14 mm), 1810 mm Height
Telemecanique
Telemecanique XUSL4E30H091LWC Safety Light Curtain Type 4, Hand Detection (30 mm), 910 mm Height
Telemecanique
Telemecanique XCSDMP5005 Coded Magnetic Safety Switch, Large, 2NO/1NC, Pre-wired cable
Telemecanique

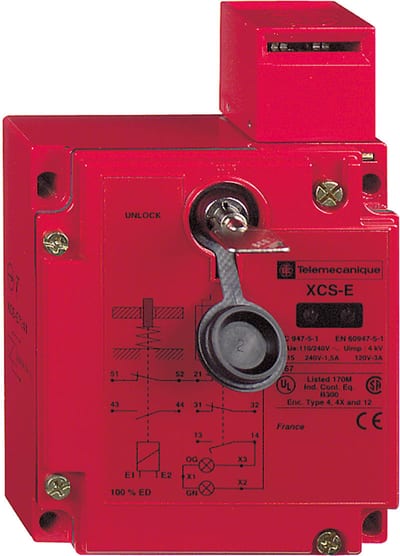

Telemecanique XCSE5331 Safety Limit Switch with Solenoid 120 V 1NC+2NO
Telemecanique

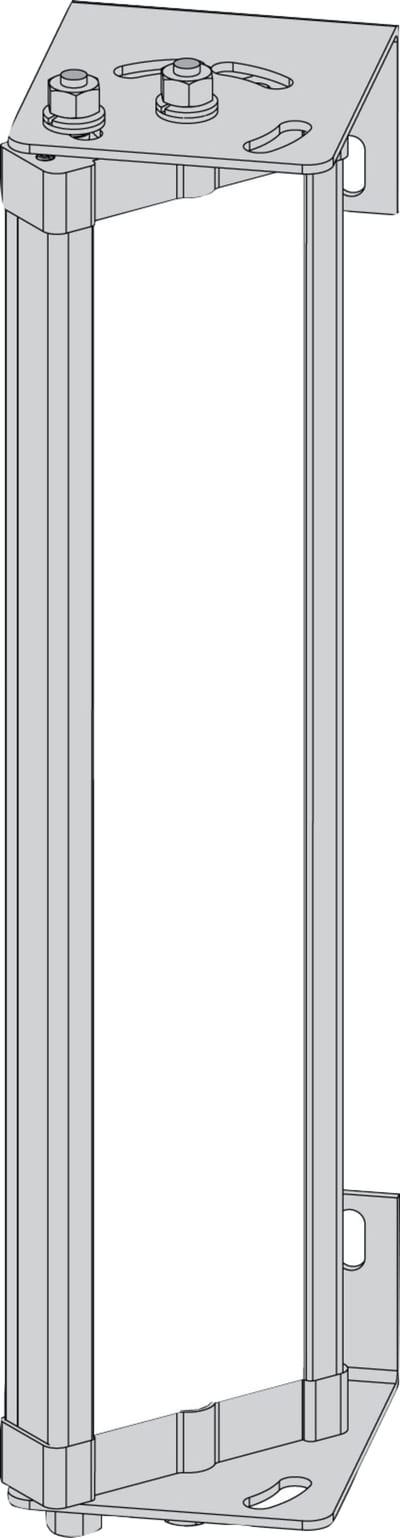

Telemecanique XUSZMF138 Deflection Mirror for Safety Light Curtains, 1385 mm
