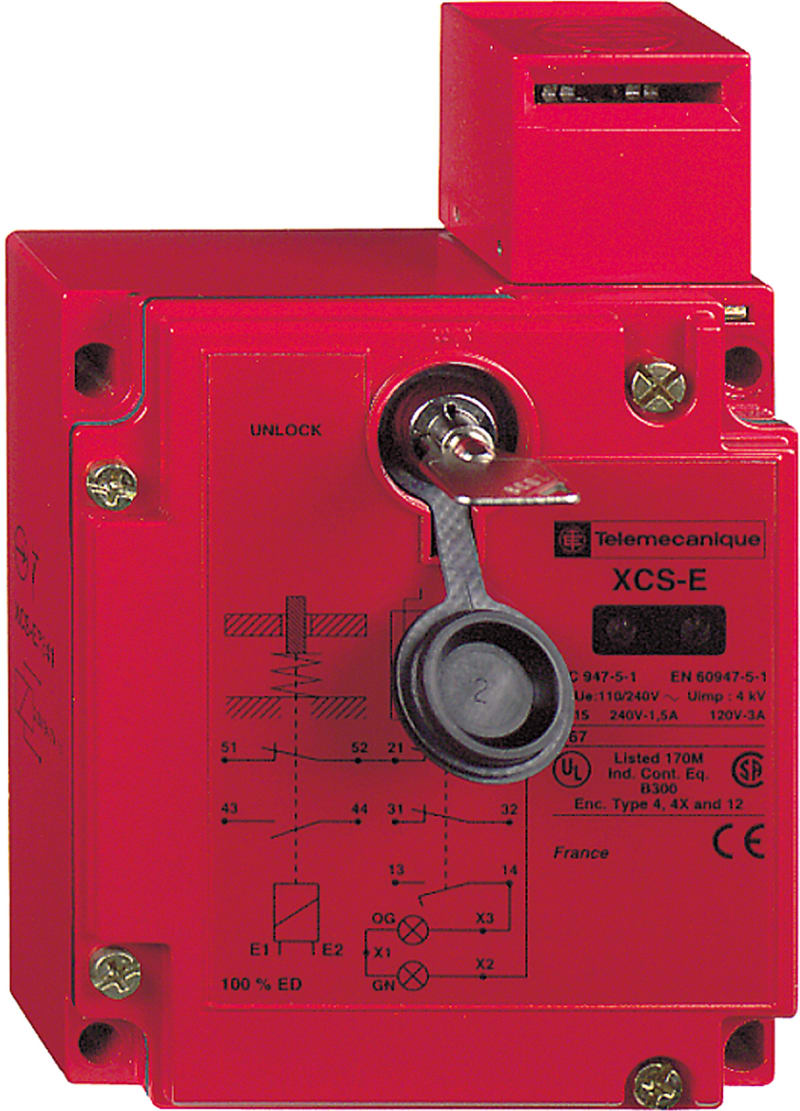

Telemecanique XCSE5331 Safety Limit Switch with Solenoid 120 V 1NC+2NO

Telemecanique (Schneider Electric) XCSE5331 safety limit switch with key interlock and magnetic release, 1NC + 2NO contacts, 110-120 V coil, PG13.5 cable entry. Metal housing; IP67K; 2000 N guard-locking force; -25 to 40 °C ambient. Quiescent-current locking principle. Package quantity: 8 pcs.

Manufacturer part number (MPN)

XCSE5331

EAN / GTIN

3666916048924

HS code

8536.90

Sales unit

pcs

Package quantity

8 pcs

Voltage

120 V

Type of locking

Quiescent current principle

Rated operation current Ie at AC-15, 230 V

1.5 A

Rated operation current Ie at DC-13, 230 V

0.27 A

Housing material

Metal

Suitable for safety functions

Yes

With status indication

Yes

Type of switching contact

Slow-action switch

Type of interface for safety communication

None

Type of electric connection

Cable entry PG

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP67K

Type of interface

None

Rated control supply voltage magnet drive AC 50 Hz

110–120 V

Rated control supply voltage magnet drive AC 60 Hz

110–120 V

Rated control supply voltage magnet drive DC

110–120 V

Rated operation current Ie at AC-15, 125 V

3 A

Rated operation current Ie at DC-13, 125 V

0.55 A

Width sensor

98 mm

With escape release

No

Height of sensor

146 mm

Length of sensor

44 mm

Ambient temperature during operating

-25–40 °C

Guard locking force

2000 N

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

2

With auxiliary release

No

Type of guard locking

Quiescent current principle

Country of origin

France

HS Code

8536.90

• EAN 3666916048924
• SAP 1000341750
• Code 8376514
