Photocell MEK. Bakgrunnsavbl
Pricing
Request a quote
We reply within 24 hours
Product Description

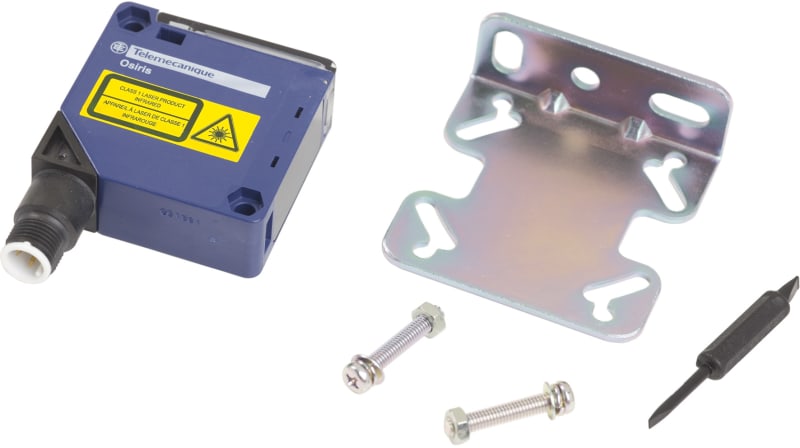

Telemecanique XUK8AKSNM12 Photocell with background suppression.
Technical Specifications
- Manufacturer part number (MPN)
- XUK8AKSNM12
- EAN / GTIN
- 3666916037522
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Adjustment range
- 1000 mm
- Triangulation
- Background fade-out
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 1000 mm
- Max. switching distance
- 1000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 18 mm
- Height of sensor
- 50 mm
- Length of sensor
- 50 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -25–55 °C
- Response time
- 2 ms
- Switching frequency
- 250 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- Class 1
- Type of light
- Laser diode, infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP30
- Operating distance
- 1000 mm
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916037522
- SAP 1000059829
- Code 8865727
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCSLE2525512 Safety Interlock Switch with Solenoid Locking 24V 2NO+2NC
Telemecanique
Telemecanique XMLP060BD71FQ Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique OsiSense XS612B1PBL10 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, PNP, NC, pre-wired cable
Telemecanique

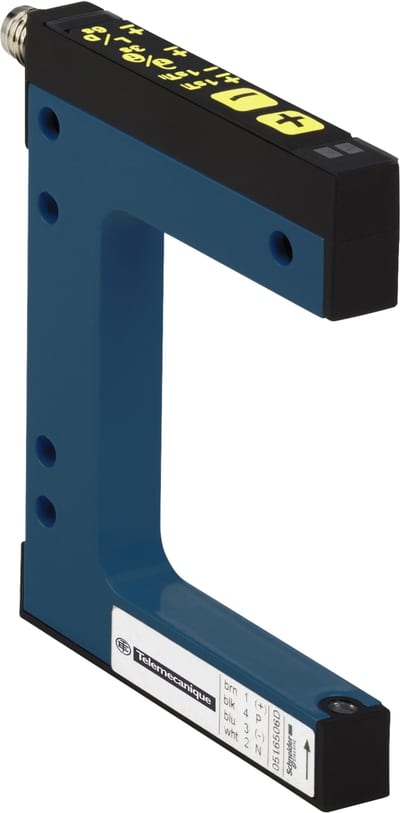

Telemecanique XUYFANEP40015 Infrared Fork Sensor, Teach-In, M8 Connector
Telemecanique

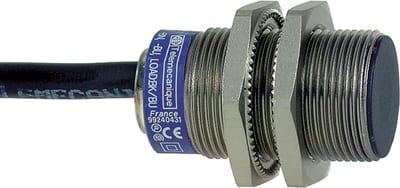

Telemecanique OsiSense XS1N18PB349 Inductive Proximity Sensor — M18 barrel, Sn 10 mm, PNP, NC, pre-wired cable (2 m)
Telemecanique

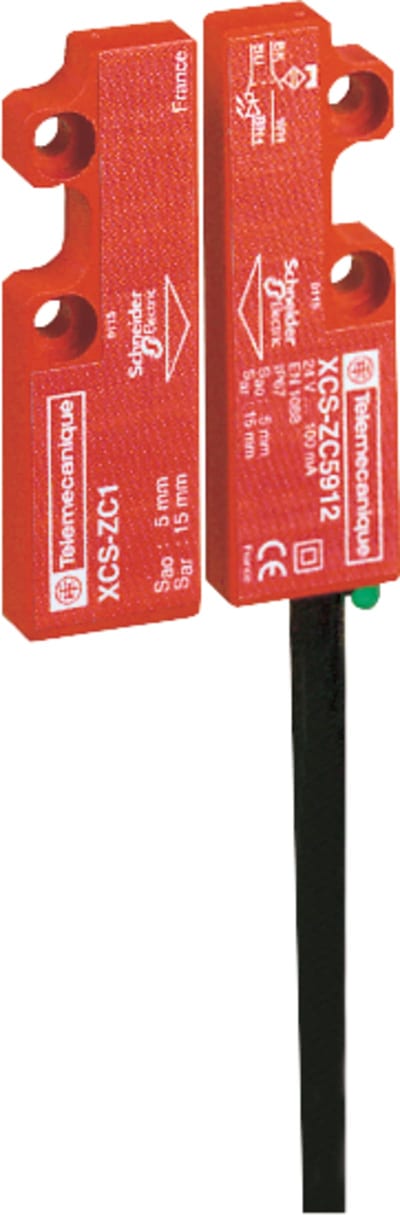

Telemecanique XCSDMC5915 Coded Magnetic Safety Switch, 1 NO + 1 NC, with LED
Telemecanique

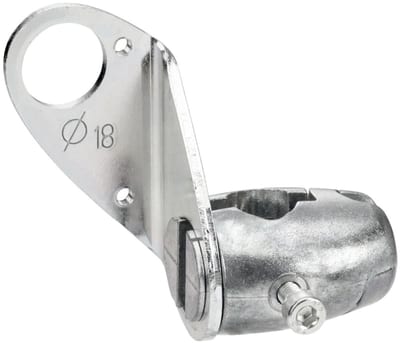

Bracket with Kulejoint for XUB
