Telemecanique XUB9APAWL2 Laser Photoelectric Sensor, Polarised Reflex, Plastic, PNP, NO, 90° Head, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUB9APAWL2 laser photoelectric sensor, polarised reflex, Ø18 mm (M18), plastic housing, 90° head, PNP NO output, rated distance 2 m, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XUB9APAWL2
- EAN / GTIN
- 3666916035870
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Output type
- PNP
- Contact configuration
- NO
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 2000 mm
- Max. switching distance
- 3000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Cable radial
- Type of switching output
- PNP/PNP
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 62 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 1000 mm
- Ambient temperature
- -25–55 °C
- Response time
- 1 ms
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Polarized red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916035870
- SAP 1000020267
- Code 8168582
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS618B4PBL2 Inductive Proximity Sensor — M18 barrel, Sn 12 mm, PNP, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XMLP006GD11FQ Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4
Telemecanique

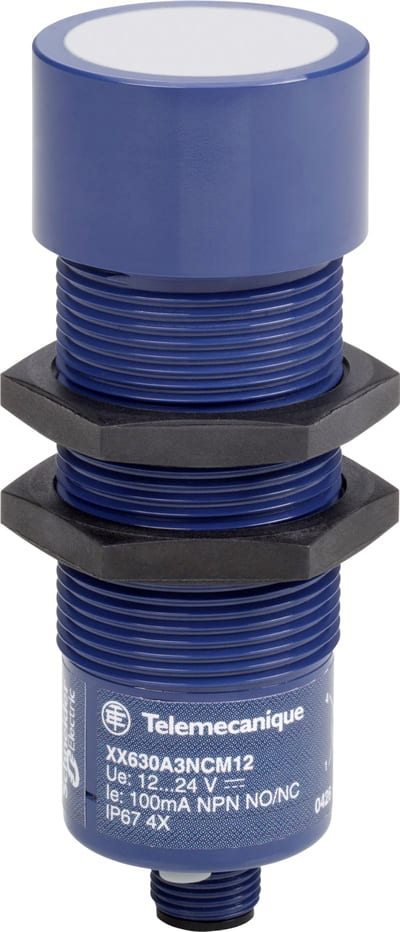

Telemecanique XX630A2PC000M12 Ultrasonic Sensor M30, PNP, NO+NC, Range 2 m, M12 connector
Telemecanique

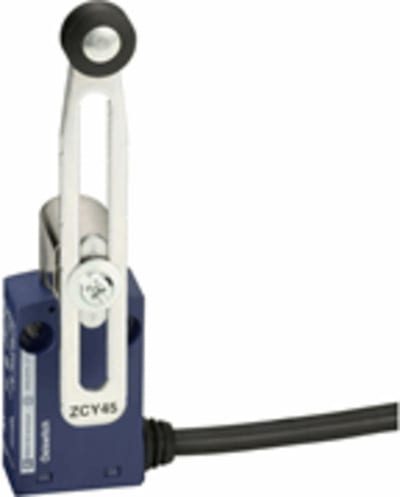

Telemecanique XCMN2145L1 Limit Switch, Long Roller Lever, Plastic Body, 1 m cable
Telemecanique

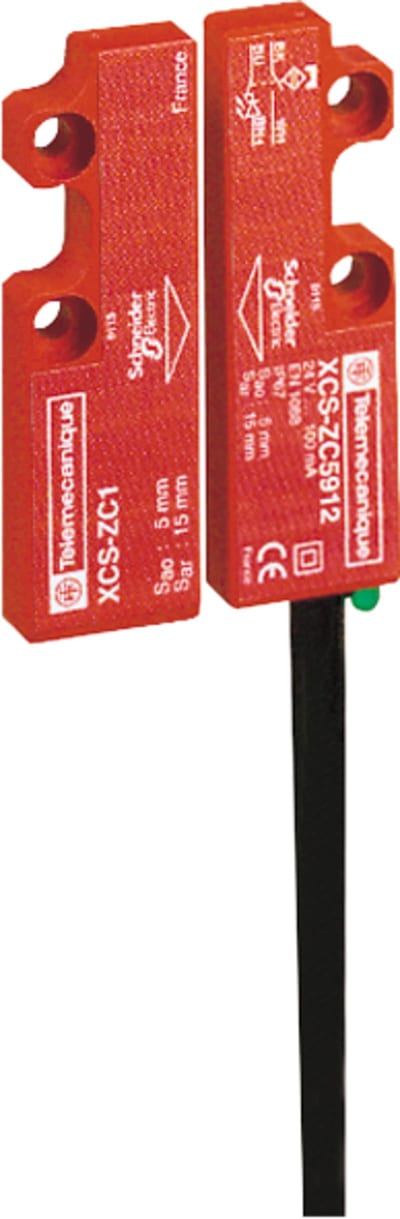

Telemecanique XCSDMC79010 Coded Magnetic Safety Switch, 2 NO, 10 m cable
Telemecanique
Telemecanique XUYFANEP100015 Infrared Fork Sensor 95 × 15 mm, Teach-In, M8 Connector
Telemecanique

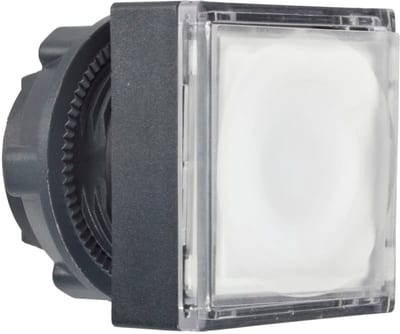

Telemecanique ZB5CW313 Illuminated Pushbutton Head, White, for LED Module, Harmony XB5 (plastic)
