Telemecanique XUSL4E30H136L Safety Light Curtain Type 4, Hand Detection (30 mm), 1360 mm Height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4E30H136L Type 4 safety light curtain, hand detection with 30 mm resolution, protected height 1360 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4E30H136L
- EAN / GTIN
- 3666916027820
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 29.4 mm
- Height of sensor
- 1413 mm
- Length of sensor
- 31 mm
- Detection capability for test bodies
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -10–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 10 ms
- Resolution of the light curtain
- 30 mm
- Reduced resolution
- No
- Transmission range of the safety field
- 20 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 1360 mm
- Type of safety according to IEC 61496-1
- 4
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916027820
- SAP 1000652077
- Code 8210610
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS608B1DAL2 Inductive Proximity Sensor — M8 barrel, Sn 2.5 mm, 2-Wire DC, NO, pre-wired cable (2 m)
Telemecanique
DIS.XMLP/XMLG 4-20MA 1 NPN H
ZMLPA1N2SH
Telemecanique
Telemecanique OsiSense XS7G12PA140 Inductive Proximity Sensor — flat rectangular, Sn 2 mm, PNP, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique XU2S18PP340D Photoelectric Through-Beam Set Ø18 mm, Sn 8 m, M12 Connectors
Telemecanique
Mushroom Head Pressure/TREK Black Ø30mm
ZB5AT24
Telemecanique

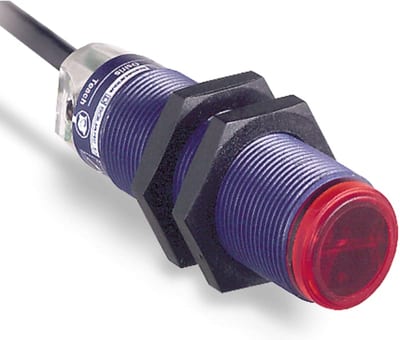

Telemecanique XUB2APANL2R Photoelectric Through-Beam Receiver, Plastic, PNP, NO, 2 m cable
Telemecanique

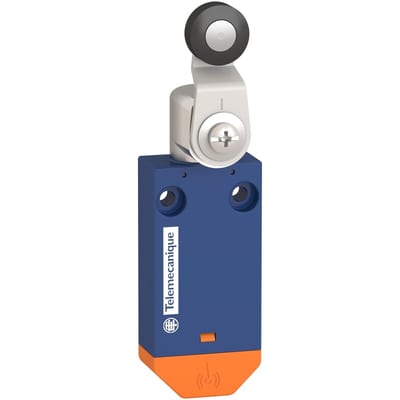

Wireless Limit switch compact (XCMW115)
