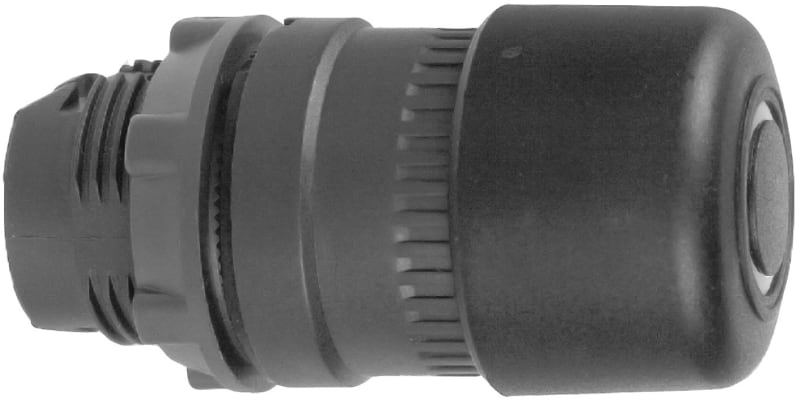

Mushroom Head Pressure/TREK Black Ø30mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB5AT24 Sopptrykknapphode in plastic with Ø30 mm mushroom head in black colour with pressure/trek function.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AT24
- EAN / GTIN
- 3389110906981
- Sales unit
- pcs
- Package quantity
- 42 pcs
- Diameter
- 30 mm
- Range of product
- Harmony XB5
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Head type
- Standard
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- latching
- Reset
- Push-pull
- Operator profile
- Black mushroom Ø 30 mm, unmarked
- Device presentation
- Basic element
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 56 mm
- Product weight
- 0.044 kg
- Mechanical durability
- 500000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C10 for <4 contacts using single and double blocks in front mounting
- Compatibility code
- ZB5
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- Enclosure Type
- UL type 4X/13
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- IK degree of protection
- IK03 conforming to IEC 50102
- Standards
- CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-4; UL 508; IEC 60947-5-1; JIS C8201-5-1; JIS C8201-1
- Product certifications
- CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Black
- Suitable for lighting
- No
- Unlocking method
- Pull-release
- Spring-return
- No
- Diameter cap
- 30 mm
- Suitable for emergency stop
- No
- Type of button
- High
- Colour front ring
- Black
- With lighting
- No
- Degree of protection (IP)
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110906981
- SAP 1000471487
- Code 8799393
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUB2APANL2R Photoelectric Through-Beam Receiver, Plastic, PNP, NO, 2 m cable
Telemecanique
Wireless Limit switch compact (XCMW115)
Telemecanique
Telemecanique XZCP1564L20 Sensor Cable, M12 male straight, 5-pin, 20 m
Telemecanique
Telemecanique XUYFALNEP40030 Laser Fork Sensor 42 × 30 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique XMLR250M1P26 Pressure Sensor with Display, 0–250 bar, 4–20 mA + 1× PNP
Telemecanique
Telemecanique XMLR160M1P75 Pressure Sensor with Display, 0–160 bar, 0–10 V + 1× PNP
Telemecanique
Telemecanique XZCRB4545P14L2 Sensor Cable, M12 to M12, 2 m
Telemecanique

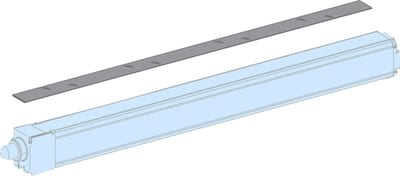

Telemecanique XUSZWPE015 Protective Cover for 150 mm XUS Light Curtains
