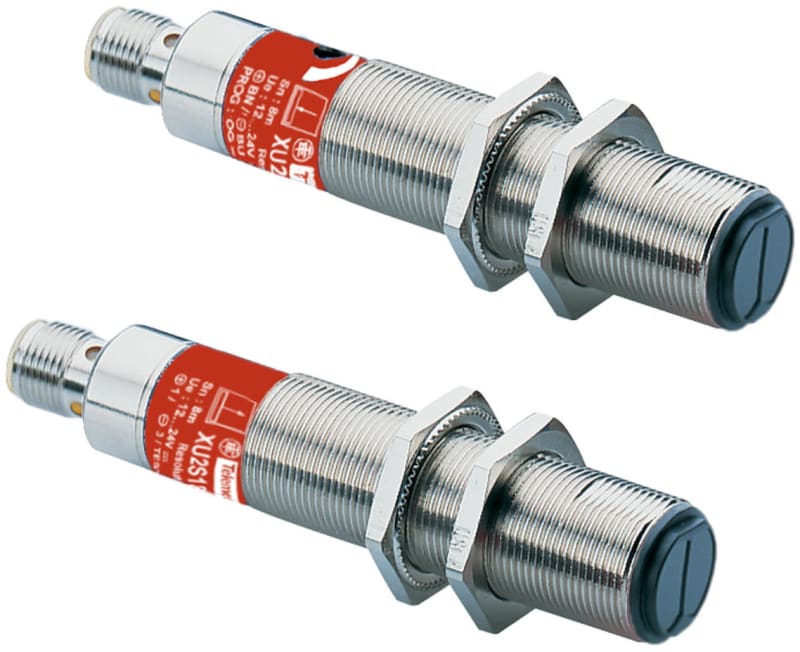

Telemecanique XU2S18PP340D Photoelectric Through-Beam Set Ø18 mm, Sn 8 m, M12 Connectors
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XU2S18PP340D photoelectric through-beam emitter and receiver set, Ø18 mm, sensing distance 8 m, M12 connectors; for multi-beam barrier assemblies.
Technical Specifications
- Manufacturer part number (MPN)
- XU2S18PP340D
- EAN / GTIN
- 3666916028971
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Scope of delivery of the one-way system
- Transmitter and receiver
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 8000 mm
- Max. switching distance
- 8000 mm
- Max. output current
- 35 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Sensing mode
- Light switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- 35 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -25–55 °C
- Transmission range of the safety field
- 8 m
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916028971
- SAP 1000341678
- Code 8998016
Product Documentation
More from Telemecanique
Telemecanique
Mushroom Head Pressure/TREK Black Ø30mm
ZB5AT24
Telemecanique
Telemecanique XUB2APANL2R Photoelectric Through-Beam Receiver, Plastic, PNP, NO, 2 m cable
Telemecanique
Wireless Limit switch compact (XCMW115)
Telemecanique
Telemecanique XZCP1564L20 Sensor Cable, M12 male straight, 5-pin, 20 m
Telemecanique
Telemecanique XUYFALNEP40030 Laser Fork Sensor 42 × 30 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique XMLR250M1P26 Pressure Sensor with Display, 0–250 bar, 4–20 mA + 1× PNP
Telemecanique
Telemecanique XMLR160M1P75 Pressure Sensor with Display, 0–160 bar, 0–10 V + 1× PNP
Telemecanique
Telemecanique XZCRB4545P14L2 Sensor Cable, M12 to M12, 2 m
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XU2S18PP340D?
- XU2S18PP340D can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XU2S18PP340D.
- What is the HS code for XU2S18PP340D?
- The customs tariff (HS) code for XU2S18PP340D is 8536.50.
- Who manufactures XU2S18PP340D?
- XU2S18PP340D is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XU2S18PP340D?
- Yes — the XU2S18PP340D datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XU2S18PP340D?
- The minimum order quantity is 1.
- Is XU2S18PP340D available?
- Yes — XU2S18PP340D is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
