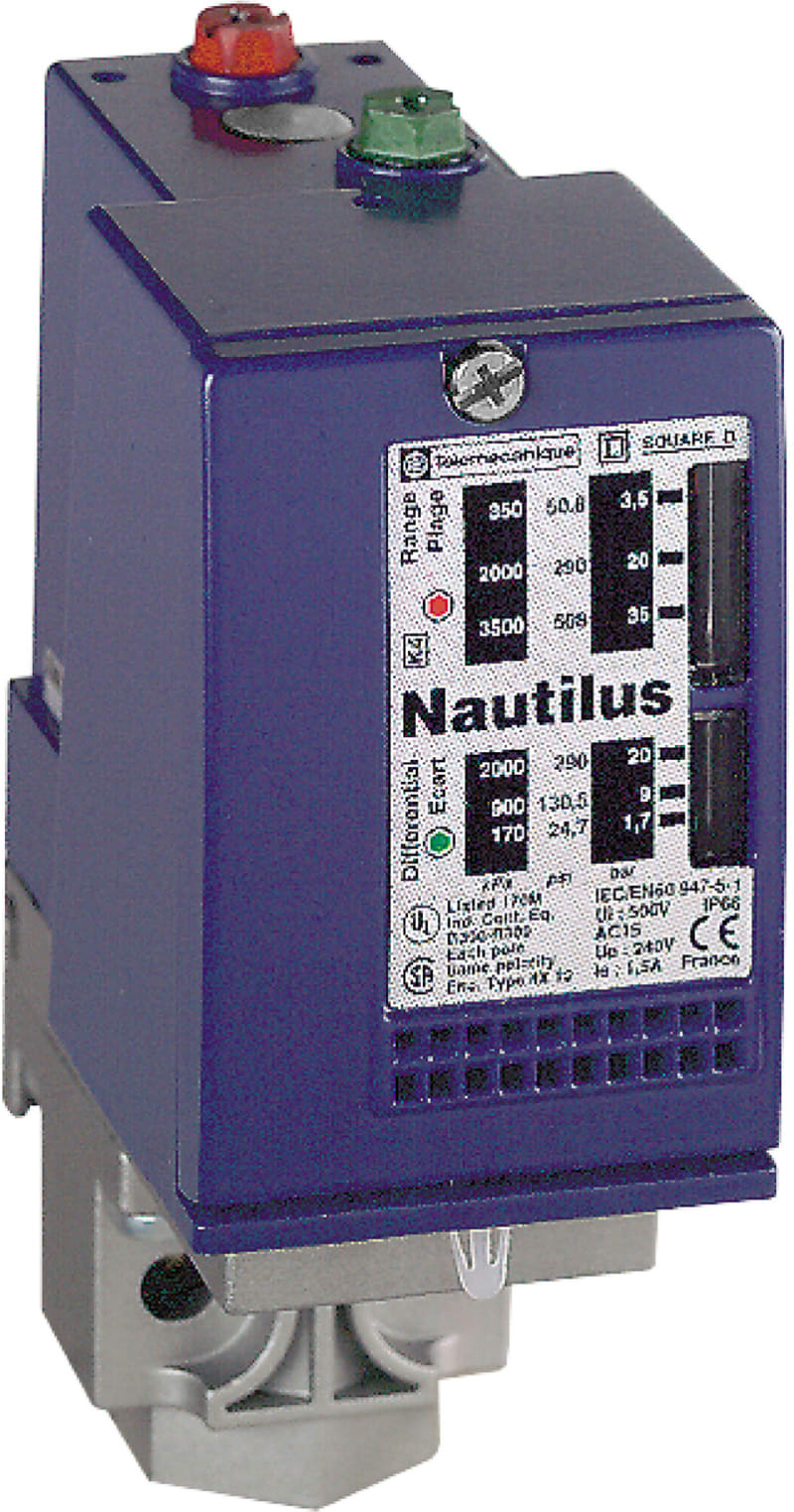

Telemecanique XMLC020B2S11 Pressure Switch, up to 20 bar, PG13 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XMLC020B2S11 OsiSense XMLC electromechanical pressure switch, adjustable range up to 20 bar, PG13 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XMLC020B2S11 EAN / GTIN: 3666916026380 HS code: 8536.90 Sales unit: pcs Pressure: 20 bar Width: 46 mm Height: 113 mm Depth: 85 mm With display: No With manual on/off switch: No Initial setting: 1300–20000 hPa End setting: 600–19000 hPa Max. operation pressure: 25000 hPa Number of auxiliary contacts as change-over contact: 2 Type of electric connection: Screw connection Explosion-proof: No Degree of protection (IP): IP66 Switch off pressure: 0.6–19 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 90 bar Engaging pressure: 1.3–20 bar Electronic version: No Suitable as 2-point controller: Yes Suitable as limiter: Yes Suitable as guard: Yes Max. test pressure: 45 bar Medium temperature: 0–160 °C With hand operation: No Pressure-switching differential: 7.3 bar Max. operating pressure: 20000 hPa Country of origin: Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916026380
- SAP 1000341618
- Code 81106403
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCP0866L5 Sensor Cable, M8 female angled, 3-pin, 5 m
Telemecanique
Telemecanique XXV18B1PBM12 Ultrasonic Sensor M18, Metal, PNP, NC, M12 connector
Telemecanique
Telemecanique XMLR010G2N26 Pressure Sensor with Display, 0–10 bar, 4–20 mA + 2× NPN
Telemecanique
Telemecanique ZC2JE705 Limit Switch Head, Spring Rod, +120 °C
Telemecanique
Telemecanique XUSZSC202R Mounting Column for Safety Light Curtains, 2020 mm
Telemecanique
Telemecanique XUSZSC105R Mounting Column for Safety Light Curtains, 1050 mm
Telemecanique
Telemecanique XMEP060BT11F Pressure Transmitter, 0–60 bar, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique XUB9ANBNM12 Laser Photoelectric Sensor, Polarised Reflex, Plastic, NPN, NC, M12 connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XMLC020B2S11?
- XMLC020B2S11 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XMLC020B2S11.
- What is the HS code for XMLC020B2S11?
- The customs tariff (HS) code for XMLC020B2S11 is 8536.90.
- Who manufactures XMLC020B2S11?
- XMLC020B2S11 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XMLC020B2S11?
- Yes — the XMLC020B2S11 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XMLC020B2S11?
- The minimum order quantity is 1.
- Is XMLC020B2S11 available?
- Yes — XMLC020B2S11 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
