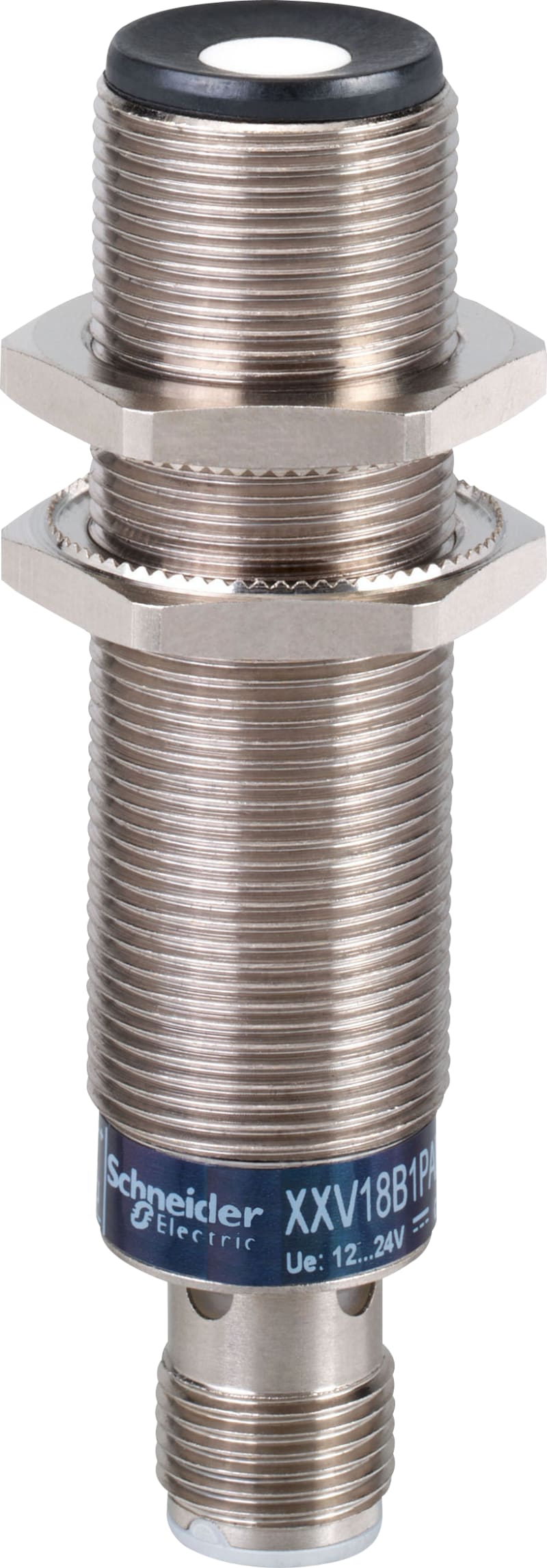

Telemecanique XXV18B1PBM12 Ultrasonic Sensor M18, Metal, PNP, NC, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XXV18B1PBM12 ultrasonic sensor, M18 metal body, PNP NC output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XXV18B1PBM12
- EAN / GTIN
- 3666916080016
- Sales unit
- pcs
- Package quantity
- 94 pcs
- Diameter
- 18 mm
- Output type
- PNP
- Contact configuration
- NC
- Connector
- M12
- Voltage type
- DC
- Max. output current
- 200 mA
- Housing material
- Brass
- Ambient temperature
- 0–60 °C
- Switching frequency
- 80 Hz
- Type of electric connection
- Connector M12
- Type of switching output
- PNP
- Type of switch function
- Breaker contact (NC)
- Blind zone
- 3 mm
- Explosion safety category for gas
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 15 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 1.5 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 18 mm
- Length of sensor
- 75 mm
- Measuring range length
- 3–50 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 9031.80
Cross References
- EAN 3666916080016
- SAP 1000336259
- Code 8960236
Product Documentation
