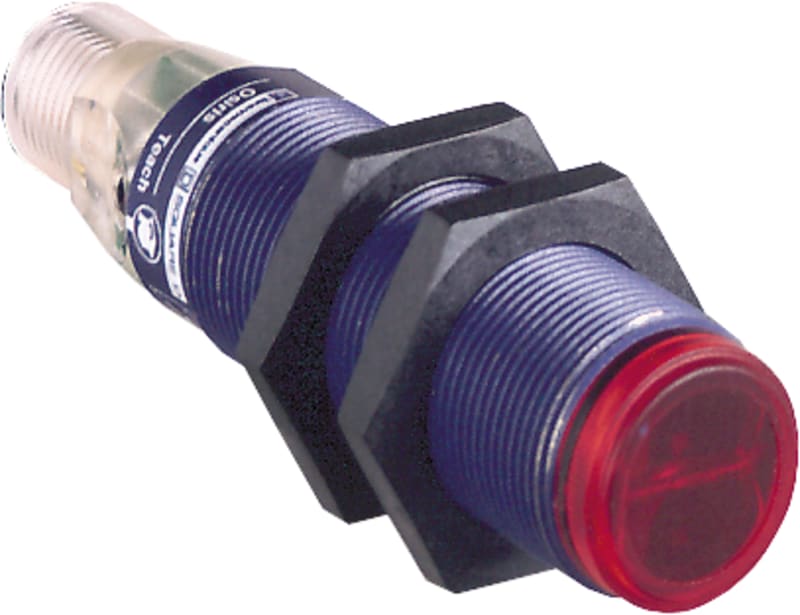

Telemecanique XUB9ANBNM12 Laser Photoelectric Sensor, Polarised Reflex, Plastic, NPN, NC, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUB9ANBNM12 laser photoelectric sensor, polarised reflex, Ø18 mm (M18), plastic housing, NPN NC output, rated distance 2 m, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUB9ANBNM12
- EAN / GTIN
- 3666916035924
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Output type
- NPN
- Contact configuration
- NC
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 2000 mm
- Max. switching distance
- 3000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- NPN/NPN
- Type of switch function
- Breaker contact (NC)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 62 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 1000 mm
- Response time
- 1 ms
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Polarized red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916035924
- SAP 1000016583
- Code 8143241
Product Documentation
