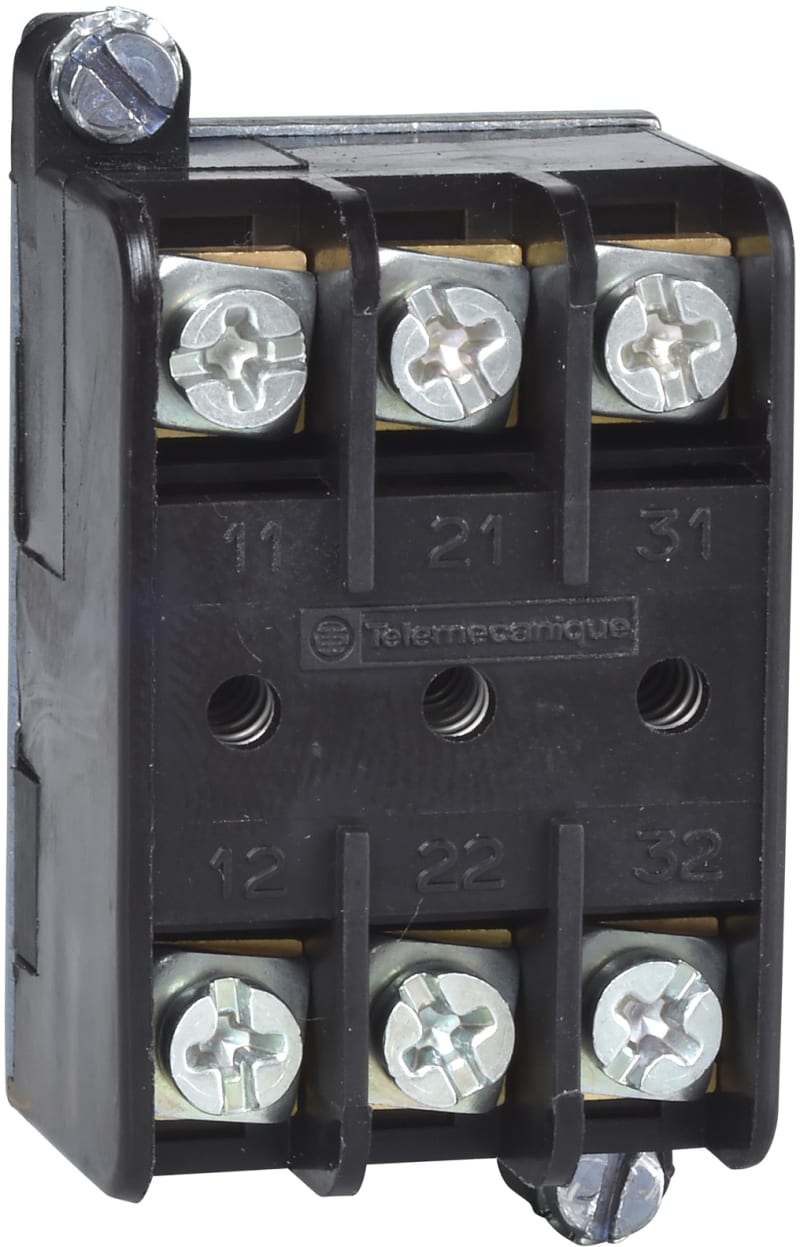

Telemecanique XENT1192 Contact Element for XAC Pendant Stations
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XENT1192 contact element for XAC pendant control stations.
Technical Specifications
- Manufacturer part number (MPN)
- XENT1192
- EAN / GTIN
- 3389110426915
- Sales unit
- pcs
- Package quantity
- 45 pcs
- Range of product
- Harmony XAC
- Product or component type
- Isolating switch
- Component name
- XENT
- Electrical circuit type
- Control circuit
- Contact block application
- Emergency stop push-button
- Contact block type
- Single
- Product compatibility
- XACA
- Contacts type and composition
- 3 NC
- Mounting of block
- Front mounting
- Contact operation
- Slow-break
- Connections - terminals
- Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end; Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
- Mechanical durability
- 1000000 cycles
- Contact code designation
- A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
- [Ithe] conventional enclosed thermal current
- 10 A
- [Ui] rated insulation voltage
- 400 V (pollution degree 3) conforming to IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-1
- Maximum resistance across terminals
- 25 MOhm
- Operating force
- 14 N
- Short-circuit protection
- 10 A fuse protection by cartridge fuse type gG
- Rated operational power in W
- 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
- Product weight
- 0.05 kg
- Standards
- CSA C22.2 No 14; UL 508; IEC 60947-5-1; IEC 60204-32
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Electrical shock protection class
- Class II conforming to IEC 61140
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 45
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3389110426915
- SAP 1000341595
- Code 8997896
Product Documentation
