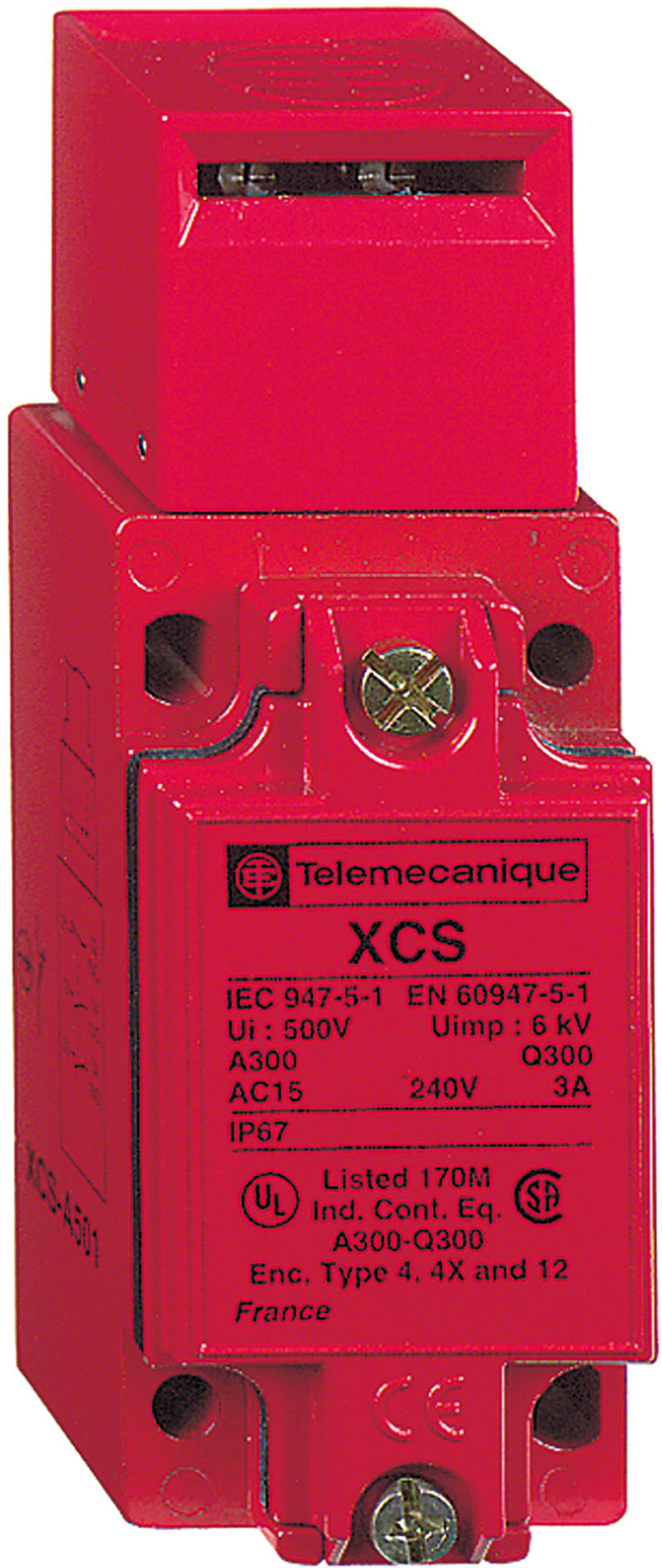

Telemecanique XCSA501 Safety Limit Switch, 1 NC + 2 NO
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSA501 safety limit switch with positive opening contacts, 1 NC + 2 NO contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSA501
- EAN / GTIN
- 3666916049419
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Contact configuration
- 1 NC + 2 NO
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP67K
- Forced opening
- Yes
- Type of interface
- None
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 40 mm
- Height of sensor
- 114 mm
- Length of sensor
- 44 mm
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 2
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916049419
- SAP 1000048085
- Code 8798667
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XY2CE2A250 Emergency Stop Rope Pull Switch, with Reset
Telemecanique
Telemecanique XZCPB1241L5 Sensor Cable, M12 female, 4-pin, PUR, 5 m
Telemecanique

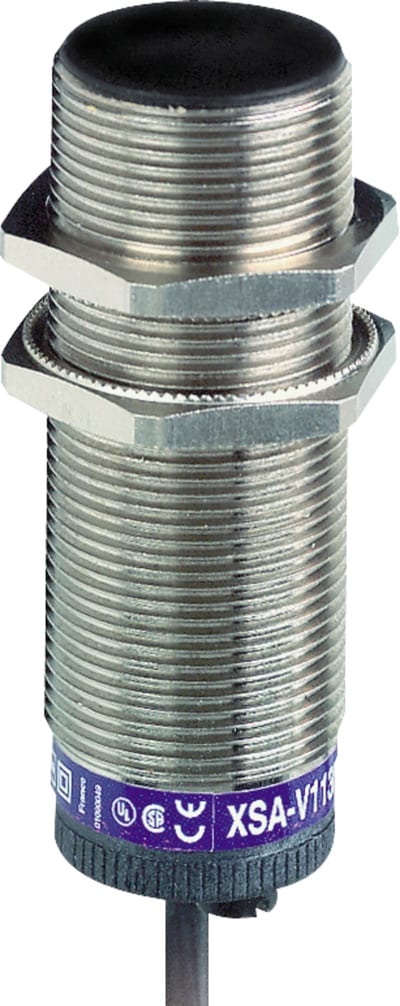

Telemecanique XSAV1562514 Rotation Monitor (Under-Speed Detector) M30, 6–150 rpm, Special Version
Telemecanique
Telemecanique pump control relay RM35-BA - range 1..10 A RM35BA10
Telemecanique
Telemecanique ZCKY08 Actuator Lever for ZCK Limit Switches
Telemecanique

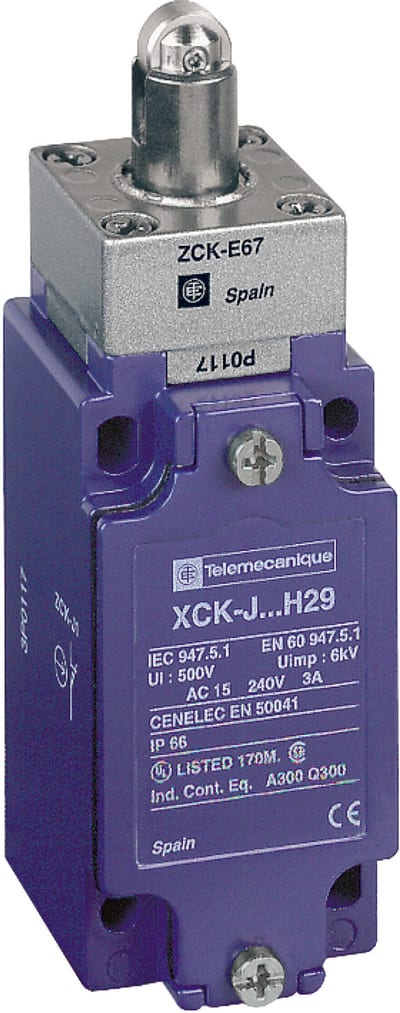

Telemecanique XCKJ567H29 Limit Switch, Roller Plunger, 1 NO + 1 NC, M20 entry
Telemecanique

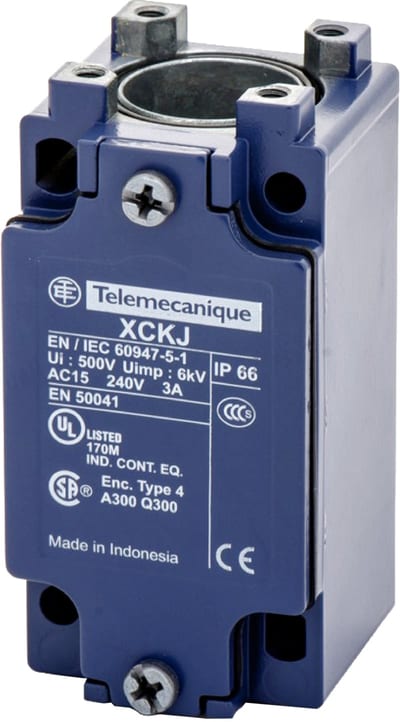

Telemecanique ZCKJ1 Limit Switch Body, Metal, Snap-action, PG cable entry
Telemecanique

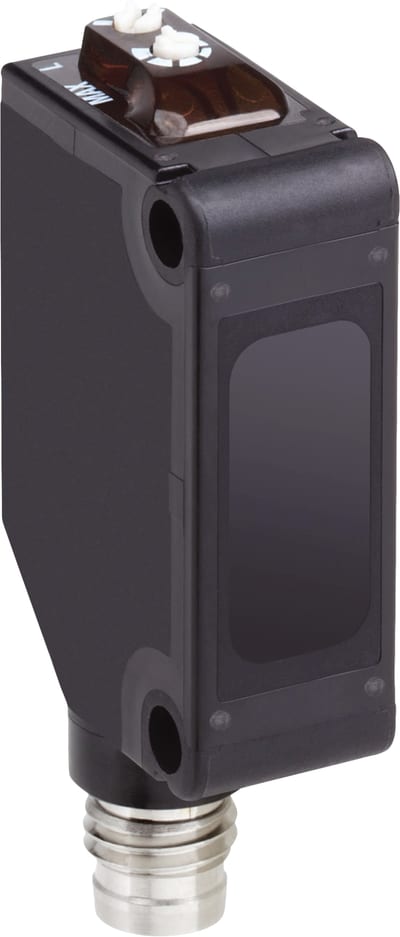

Telemecanique XUMTANCNM8 Photoelectric Sensor, Photoelectric, M8 connector
