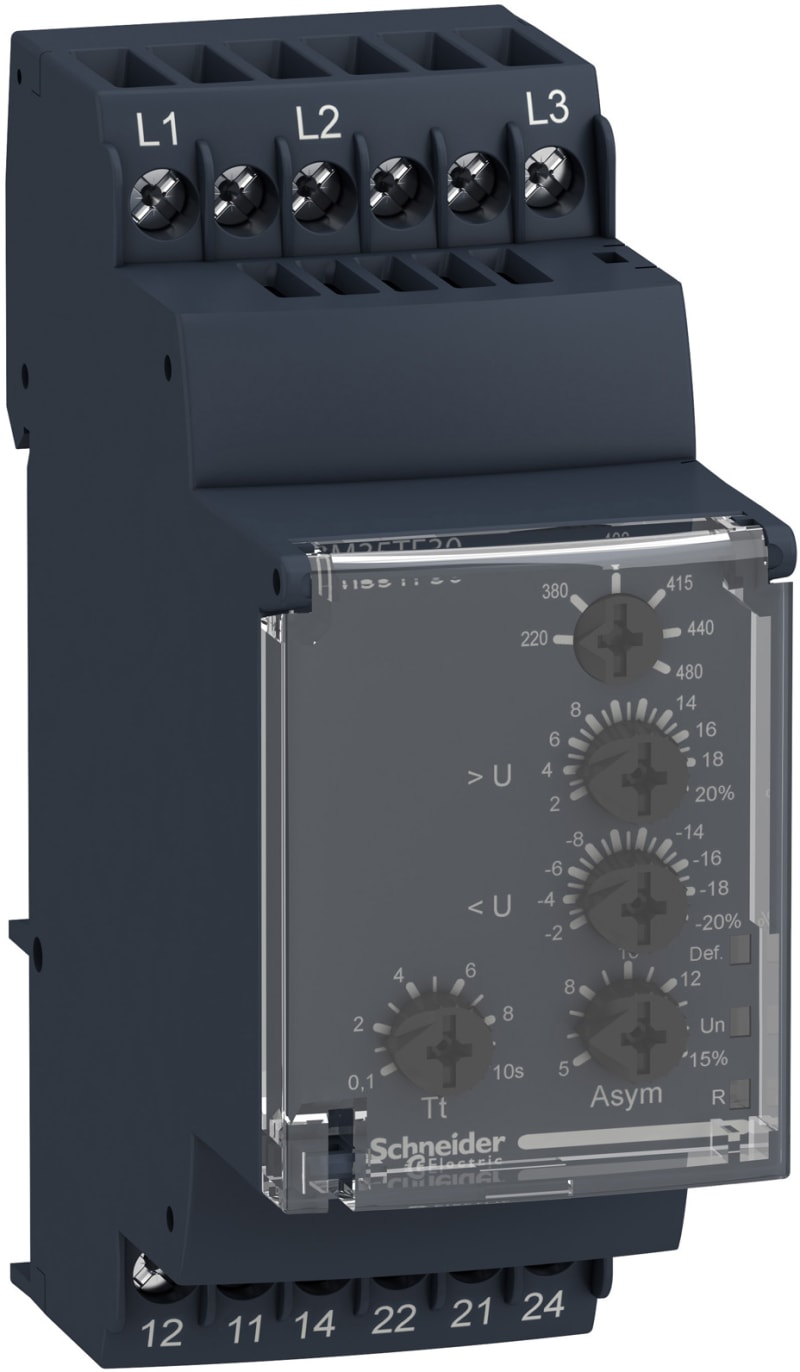

Telemecanique pump control relay RM35-BA - range 1..10 A RM35BA10

The relay is easy to install and has front-panel adjustment of the voltage threshold and, where applicable, the time delay.

Manufacturer part number (MPN)

RM35BA10 EAN / GTIN: 3389119405195 Sales unit: pcs Package quantity: 48 pcs Rated current: 5 A Range of product: Harmony Control Relays Relay type: Pump control relays Product or component type: Pump control relay Product specific application: For 3-phase and single-phase pump Relay name: RM35BA Relay monitored parameters: Overcurrent and undercurrent control; Phase sequence on 3-phase supply; Phase failure on 3-phase supply Time delay type: Adjustable 1...60 s, +/- 10 % Ti- inhibition time delay upon startup; Adjustable 0.1...10 s, +/- 10 % Tt- time delay upon fault Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum switching current: 5 A AC/DC Maximum power consumption in VA: 5 VA AC Measurement range: 1...10 A; 208...480 V AC Utilisation category: AC-12 conforming to IEC 60947-5-1; AC-13 conforming to IEC 60947-5-1; AC-14 conforming to IEC 60947-5-1; AC-15 conforming to IEC 60947-5-1; DC-12 conforming to IEC 60947-5-1; DC-13 conforming to IEC 60947-5-1 Reset time: 2000 ms Maximum switching voltage: 250 V AC/DC [Un] rated nominal voltage: 208...480 V AC 50/60 Hz, non self-powered; 230 V AC 50/60 Hz, non self-powered Supply voltage limits: 183…528 V AC operating voltage tolerance: - 15 % + 10 % Un Resistance across terminals: 0.01 Ohm at E1-L2 terminals Width: 35 mm Output contacts: 1 C/O nominal output current: 5 A Maximum measuring cycle: 140 ms as true rms value delay at power up: 0.5 s Hysteresis: 5 % of threshold Measurement accuracy: +/- 10 % of the full scale value Repeat accuracy: +/- 1 % for input and measurement circuit; +/- 1 % for time delay Measurement error: 1 % by volt over the whole range; +/- 0.05 %/°C Response time: < 300 ms (in the event of a fault) overload input current: 11 A permanent at 25 °C E1-L2 terminals; 50 A non repetitive < 1 s at 25 °C E1-L2 terminals Marking: CE : EMC 89/336/EEC; CE : 73/23/EEC Overvoltage category: III conforming to IEC 60664-1 Insulation resistance: > 500 MOhm at 500 V DC between supply and relay output conforming to 60255-5; > 500 MOhm at 500 V DC between measurement and relay output conforming to 60664-1; > 1 MOhm at 500 V DC between supply and measurement conforming to 60255-5; > 500 MOhm at 500 V DC between supply and relay output conforming to 60664-1; > 500 MOhm at 500 V DC between measurement and relay output conforming to 60255-5; > 1 MOhm at 500 V DC between supply and measurement conforming to 60664-1 [Ui] rated insulation voltage: 400 V conforming to IEC 60664-1 Supply frequency: 50/60 Hz +/- 10 % Operating position: Any position Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Status LED: 1 LED green for power ON; 1 LED yellow for fault; 1 LED yellow for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Operating rate: <= 360 operations/hour full load Control type: Without test button Immunity to microbreaks: 500 ms Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 Standards: IEC 60255-6 Product certifications: C-Tick; CSA; GOST; UL; GL Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 Vibration resistance: 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1; 1 gn (f= 57.6…150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 Shock resistance: 15 gn for 11 ms conforming to IEC 60255-21-1 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Dielectric strength: 2 kV AC 50 Hz (shock wave 4 kV) Number of Units in Package 1: 1 Number of Units in Package 2: 48 Country of origin: ID Warranty (in months): 18 Voltage type (supply voltage): AC Type of electric connection: Screw connection With detachable clamps: No Single-phase under current possible: Yes Three-phase under current possible: Yes Single-phase overcurrent possible: Yes Three-phase overcurrent possible: Yes Single-phase hysteresis possible: Yes Three-phase hysteresis possible: Yes Contains function DC-voltage under current: No Contains function DC-voltage overcurrent: No Function DC-current hysteresis: No Rated control supply voltage AC 50 Hz: 208–480 V Rated control supply voltage AC 60 Hz: 208–480 V Voltage type for actuating: AC/DC Current measuring range: 1–10 A Min. adjustable delay-on energization time: 1 s Max. permitted delay-on energization time: 60 s Min. adjustable off-delay time: 0.1 s Max. permitted off-delay time: 10 s Number of contacts as change-over contact: 1 External current transformer: No Height: 90 mm Depth: 72 mm

HS Code

8536.49

• EAN 3389119405195
• SAP 1000257661
• Code 8232025
