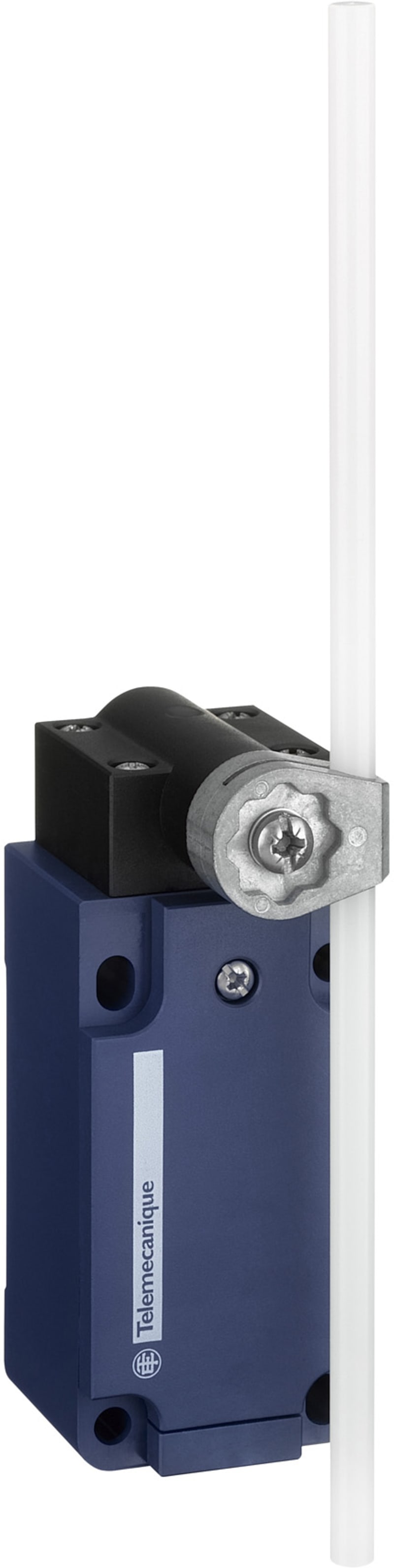

Telemecanique XCKS159 Limit Switch, Plastic Body, 1 NO + 1 NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKS159 limit switch (position switch), plastic body, 1 NO + 1 NC contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCKS159
- EAN / GTIN
- 3666916053751
- HS code
- 8536.90
- Sales unit
- pcs
- Contact configuration
- 1 NO + 1 NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Actuating rod
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 40 mm
- Height of sensor
- 280 mm
- Length of sensor
- 55 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916053751
- SAP 1000081598
- Code 8850818
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XY2CZ712 Emergency Stop Rope Pull Switch
Telemecanique
Telemecanique XZCPV11V12L10 Sensor Cable, M12 female straight, 5-pin, PVC, 10 m
Telemecanique

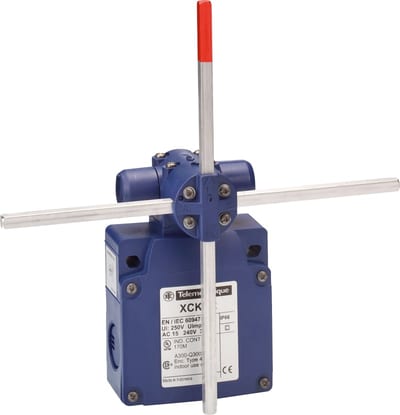

Telemecanique XCKVR24SR1H29 Limit Switch, Plastic Body, M20 entry
Telemecanique
Telemecanique XY2CE1A250 Emergency Stop Rope Pull Switch, with Reset
Telemecanique
Telemecanique XZCP53P12L5 Sensor Cable, M12 female, 8-pin, PUR, 5 m
Telemecanique

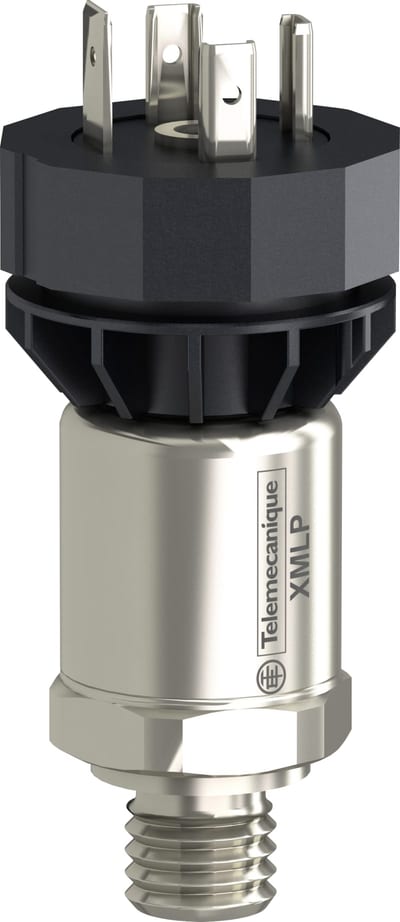

Telemecanique XMLP006GC21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4
Telemecanique

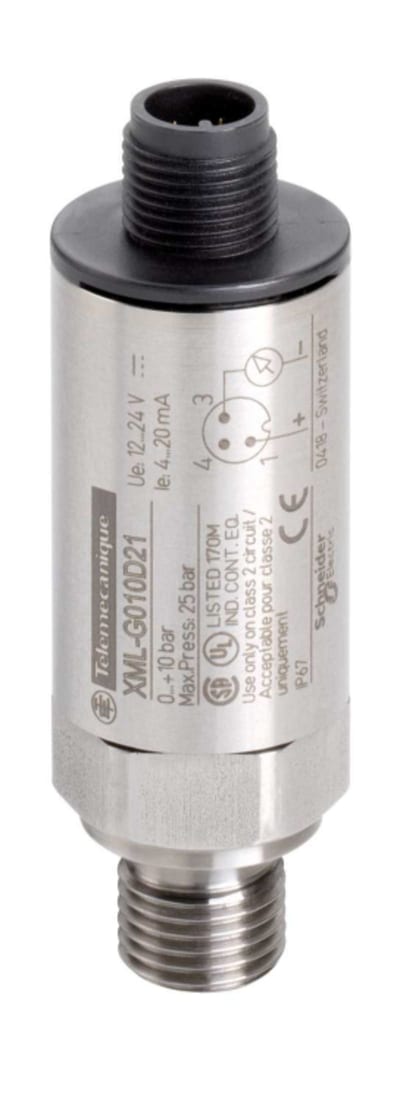

Telemecanique XMLGM01D71 Vacuum Pressure Transmitter, −1–0 bar, 0–10 V
Telemecanique

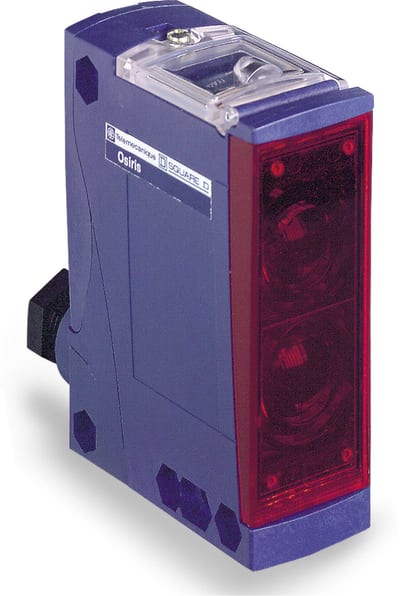

XUX,Direct.PNP NO Screw Terminals
