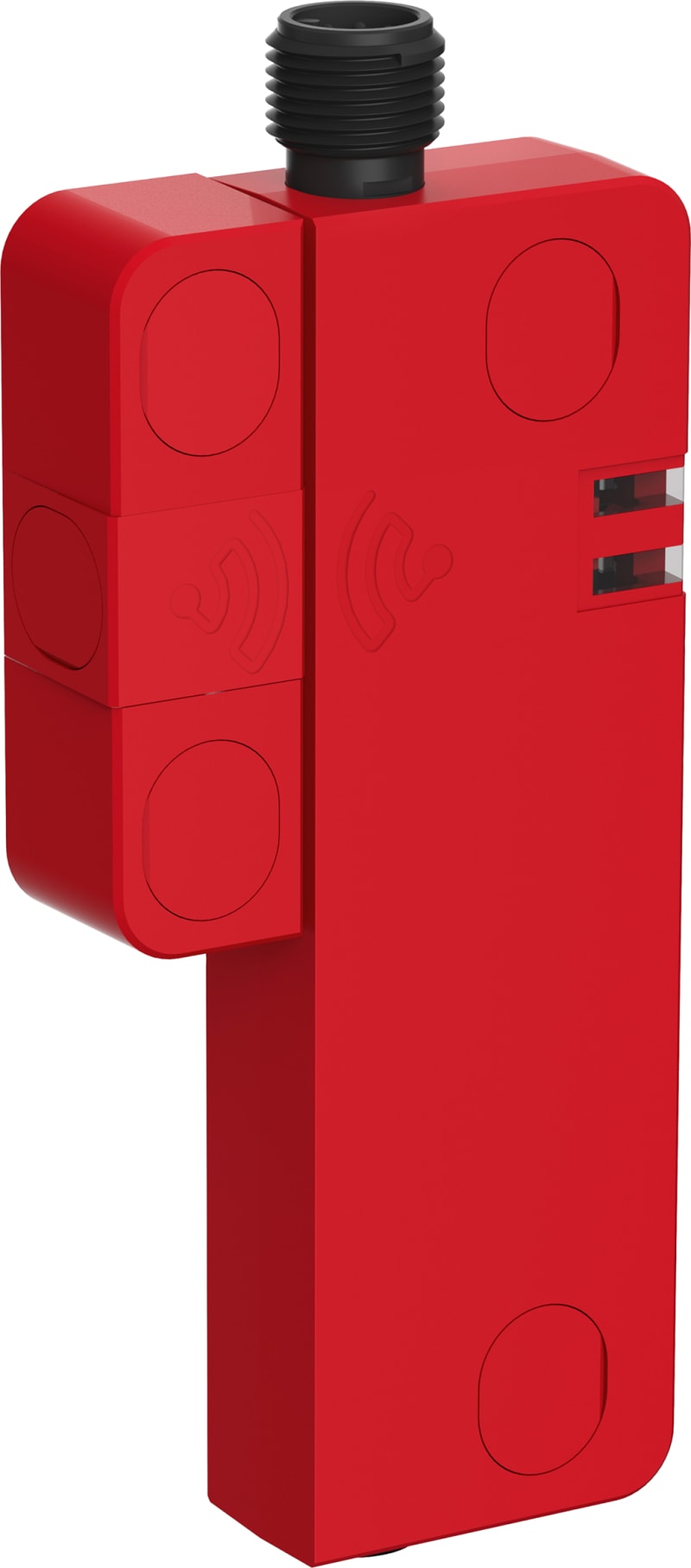

Telemecanique XCSRC31MM12 Safety Limit Switch, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSRC31MM12 safety limit switch with positive opening contacts, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XCSRC31MM12
- EAN / GTIN
- 3666916059265
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Number of protected contact energized outputs
- 3
- Type of actuation
- Magnet
- Type of electric connection
- Connector M12
- Type of switching output
- PNP
- Width sensor
- 15 mm
- Height of sensor
- 119.6 mm
- Length of sensor
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Coating housing
- Uncoated
- Protected switch distance OFF
- 20 mm
- Protected switch distance ON
- 8 mm
- SIL according to IEC 61508
- 3
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 100 mA
- Min. output current
- 60 mA
- Voltage type
- DC
- Cross-/short circuit identification possible
- Yes
- Switching distance
- 35 mm
- With monitoring function downstream switching devices
- No
- Suitable for safety functions
- Yes
- With status indication
- No
- Degree of protection (IP)
- IP67
- Country of origin
- France
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 3666916059265
- SAP 1200029253
- Code 81450491
