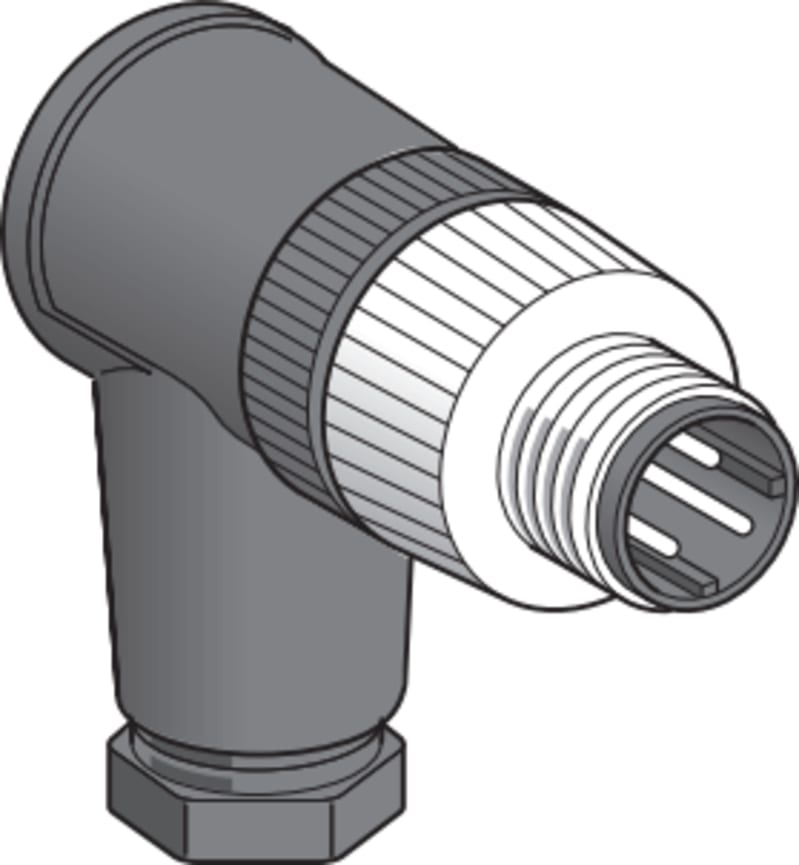

Telemecanique XZCC20MCM30B Field-Wireable Connector, 1/2"-20 UNF, Male, Angled, 3-pin
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XZCC20MCM30B field-wireable (user-attachable) connector, 1/2"-20 UNF male angled, 3-pin, screw-clamp wiring, for sensor and actuator cabling.
Technical Specifications
- Manufacturer part number (MPN)
- XZCC20MCM30B
- EAN / GTIN
- 3666916069882
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Contact type
- Pin
- Diameter connector
- 12.7 mm
- Thread size M
- 20
- Number of data contacts
- 3
- For cable outer diameter
- 7 mm
- Type of housing
- Angled
- Rated current In
- 4 A
- Ambient temperature
- -40–85 °C
- Rated voltage
- 250 V
- Connectable conductor cross section solid-core
- 0–75 mm²
- Connectable conductor cross section multi-wired
- 0–75 mm²
- Type of electric connection
- Screw connection
- With interlocking device
- No
- Housing material
- Plastic
- Coating housing
- None
- Type of locking
- None
- Operating temperature
- -40–85 °C
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP67K
- Screened
- No
- With status indication
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916069882
- SAP 1000046214
- Code 8528998
Product Documentation
