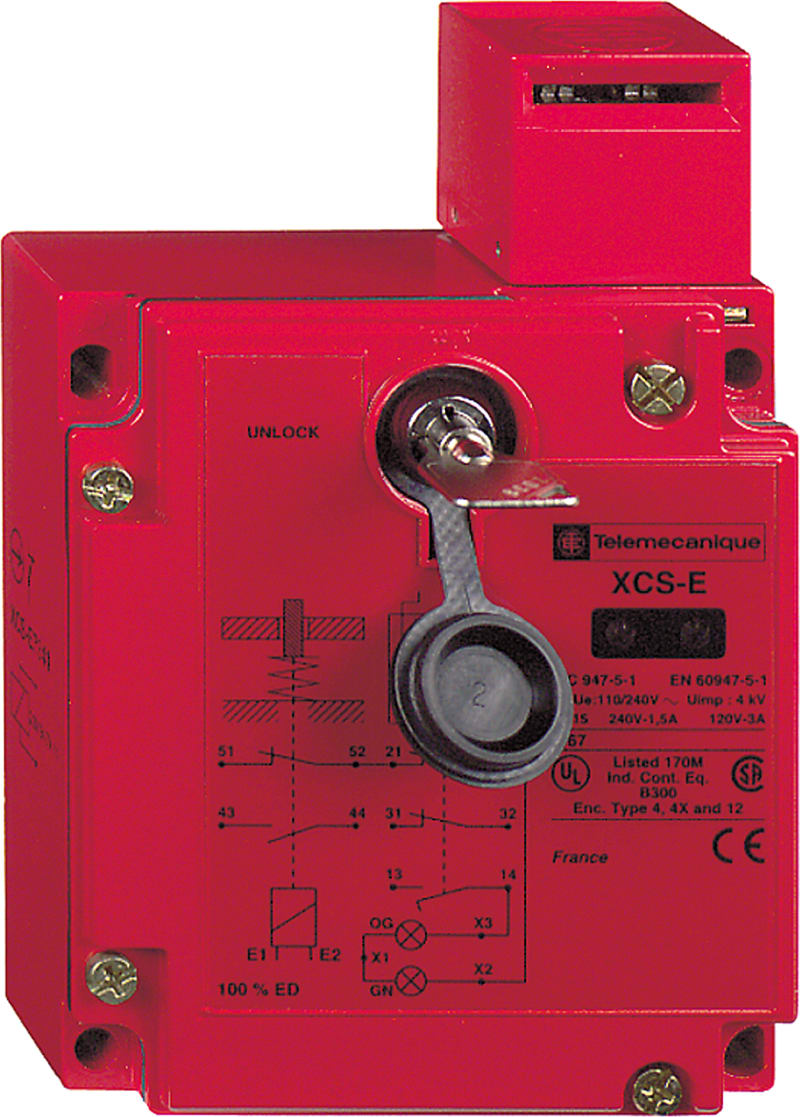

Telemecanique XCSE83127 Safety Limit Switch with Guard Locking, 24 V

Telemecanique Sensors XCSE83127 is a metal-housing safety interlock switch with electromagnetic guard locking, wired for three normally-closed contacts with status indication. Slow-action contacts are rated 1.5 A at 230 V AC-15. Guard-locking magnet operates on 24 V AC/DC with 20 N holding force; sensor body 146 x 98 x 44 mm, IP67K, -25 to 40 °C ambient.

Manufacturer part number (MPN)

XCSE83127

EAN / GTIN

3666916048375

HS code

8536.90

Sales unit

pcs

Package quantity

4 pcs

Voltage

24 V

Type of locking

Operating current principle

Rated operation current Ie at AC-15, 230 V

1.5 A

Rated operation current Ie at DC-13, 230 V

0.27 A

Housing material

Metal

Suitable for safety functions

Yes

With status indication

Yes

Type of switching contact

Slow-action switch

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

None

Construction type housing

Cuboid

Degree of protection (IP)

IP67K

Type of interface

None

Rated control supply voltage magnet drive AC 50 Hz

24 V

Rated control supply voltage magnet drive AC 60 Hz

24 V

Rated control supply voltage magnet drive DC

24 V

Rated operation current Ie at AC-15, 125 V

3 A

Rated operation current Ie at DC-13, 125 V

0.55 A

Width sensor

98 mm

With escape release

No

Height of sensor

146 mm

Length of sensor

44 mm

Ambient temperature during operating

-25–40 °C

Guard locking force

20 N

Number of contacts as normally closed contact

3

With auxiliary release

No

Type of guard locking

Quiescent current principle

Country of origin

France

HS Code

8536.90
