Telemecanique ZBE5023 Contact Block 1 NC, Faston Connectors, for Harmony XB4/XB5
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZBE5023 single contact block, 1 NC, slow-break, Ith 10 A, Faston connectors, for Harmony XB4 and XB5 pushbuttons.
Technical Specifications
- Manufacturer part number (MPN)
- ZBE5023
- EAN / GTIN
- 3389119042277
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Contact configuration
- NC
- Range of product
- Harmony XB4; Harmony XB5
- Product or component type
- Contact block
- Device short name
- ZBE
- Sale per indivisible quantity
- 1
- IP degree of protection
- IP20 conforming to IEC 60529
- Contact operation
- Slow-break
- Contact block type
- Single
- Contacts usage
- High power switching contacts
- Connections - terminals
- Faston connector, connection size: 1 x 6.35 mm; Faston connector, connection size: 2 x 2.8 mm
- Product weight
- 0.02 kg
- Contacts type and composition
- 1 NC
- Positive opening
- With
- Mechanical durability
- 10000000 cycles
- Short-circuit protection
- 10 A cartridge fuse type gG conforming to IEC 60947-5-1
- [Ith] conventional free air thermal current
- 10 A conforming to IEC 60947-5-1
- [Ui] rated insulation voltage
- 300 V conforming to IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-1
- [Ie] rated operational current
- 1.1 A at 125 V, DC-13, P300 conforming to IEC 60947-5-1
- Mounting of block
- Front mounting
- Electrical composition code
- C15 (quantity <= 1)
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 80
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3389119042277
- SAP 1000707753
- Code 8428178
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XXS18S1AM12 Ultrasonic Sensor, M18, Sn 1 m, 4–20 mA, M12 connector
Telemecanique
Telemecanique XMLR010G1P76 Pressure Sensor with Display, 0–10 bar, 0–10 V + 1× PNP
Telemecanique

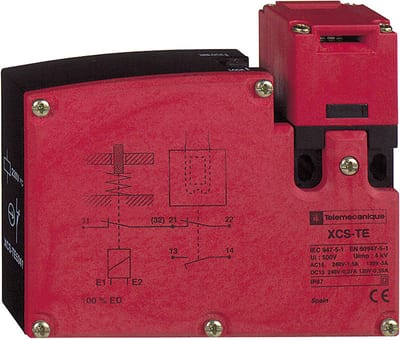

Telemecanique XCSTE7311 Safety Interlock Switch with Solenoid, 2NC, 24 V
Telemecanique

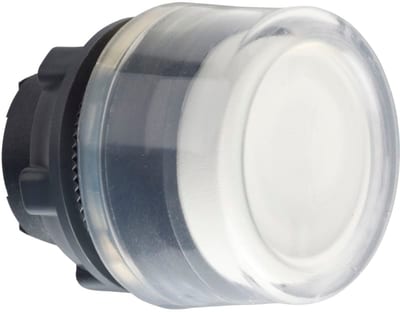

Telemecanique ZB5AP1 Pushbutton Head, White, for Harmony XB5 (plastic)
Telemecanique
PHOTOCELL,ANGLE,80X80,NO,PNP (XUVA0808PANM8)
Telemecanique

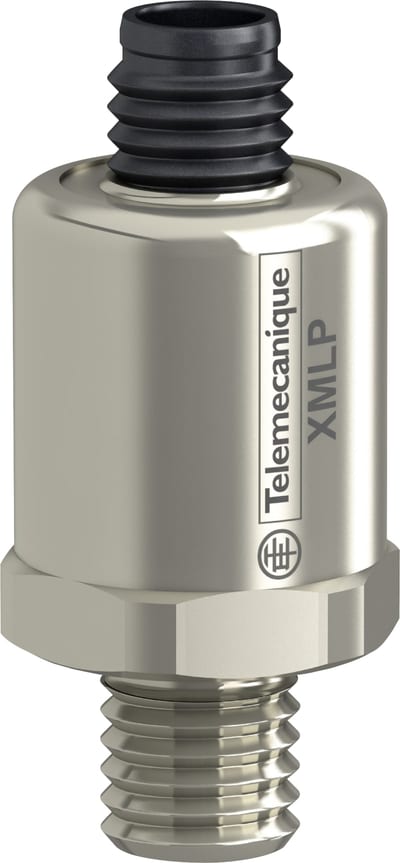

Telemecanique XMLP100PD730 Pressure Transmitter, 0–100 psi, 0.5–4.5 V ratiometric, 1/4" NPT, M12 connector
Telemecanique
Telemecanique XUVA1515PANM8 Frame Photoelectric Sensor 150 × 150 mm, PNP NO, M8 connector
Telemecanique

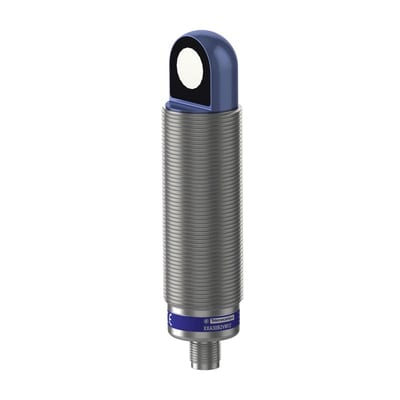

Telemecanique XXA30B2VM12 Ultrasonic Sensor M30, Metal, 90° Head, 0–10 V, Range 2 m, M12 connector
