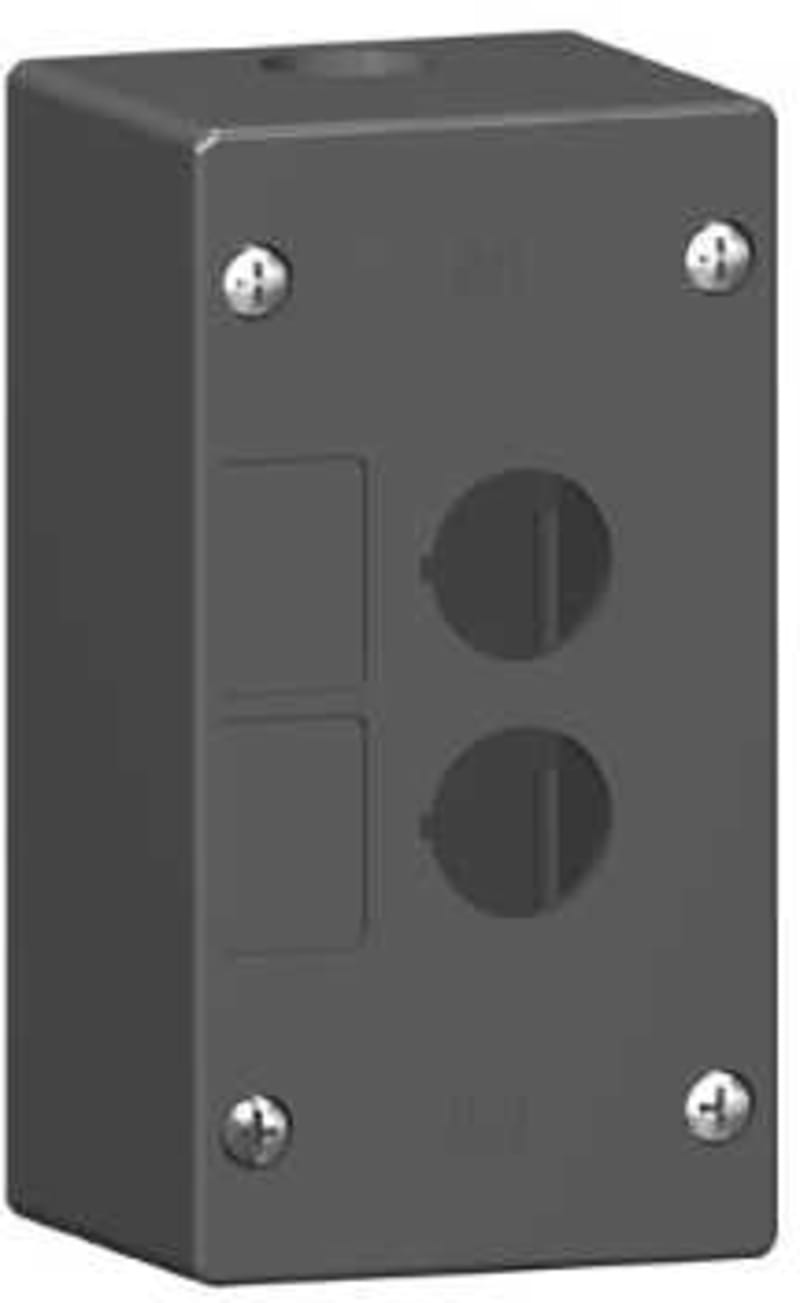

Schneider Electric XALG02 Empty Control Station, 2 Cut-Outs, Black, for Severe Environments

Schneider Electric XALG02 empty control station enclosure for severe environments, black, 2 pushbutton cut-outs, for Harmony Ø22 mm operators.

Manufacturer part number (MPN)

XALG02

EAN / GTIN

3389119019330

Sales unit

pcs

Package quantity

16 pcs

Range of product

Harmony XALG

Product or component type

Empty control station

Device short name

XALG

Product destination

For XB5 Ø 22 mm control and signalling units

Environmental characteristic

Severe ambiance

Colour of base of enclosure

Black (RAL 9005)

Colour of cover

Black (RAL 9005)

Material

Mineral reinforced polyamide

Cable entry

2 knock-outs for ISO M20 cable entry

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69; IP69K

Assembly style

For customer assembly

Number of cut-out

2 cut-outs 30 mm

CAD overall width

135 mm

CAD overall height

72 mm

CAD overall depth

65 mm

Product weight

0.28 kg

Resistance to high pressure washer

10 mPa at 80 °C, distance : 0.2 m

Protective treatment

TH; TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IK degree of protection

IK05 conforming to IEC 62262

Resistance to chemical agents

Good resistance to lactic acid at 10 °C; Good resistant to detergent at 60 °C; Not resistant to formic acid (10 %) at 50 °C; Not resistant to lactic acid at 90 °C; Good resistance to ammonia; Good resistance to benzene; Good resistance to butter; Good resistance to citric acid (10 %); Good resistance to cutting compounds; Good resistance to ethane; Good resistance to ethanol; Good resistance to ethylene; Good resistance to fatty acids; Good resistance to fatty alcohols; Good resistance to milk; Good resistance to motor oils and greases; Good resistance to oils (vegetable, mineral); Good resistance to petroleum; Good resistant to acetone; Good resistant to uric acid (20 %); Limited resistance to acetic acid (10 %); Limited resistance to boric acid; Not resistant to hydrogen peroxide (30 %); Not resistant to nitric acid (2 %)

Standards

IEC 60947-5-1; IEC 60947-1

Number of Units in Package 1

1

Number of Units in Package 2

16

Country of origin

MA

Warranty (in months)

18

Width

72 mm

Height

135 mm

Depth

65 mm

Diameter openings

22.5 mm

Number of command positions

2

Colour housing cover

Black

Housing material

Plastic

Construction type housing

Surface mounted housing

Degree of protection (IP)

IP66

Housing material quality

Acrylonitrile butadiene styrene (ABS)

HS Code

3926.90

• EAN 3389119019330
• SAP 1000260630
• Code 81146259
