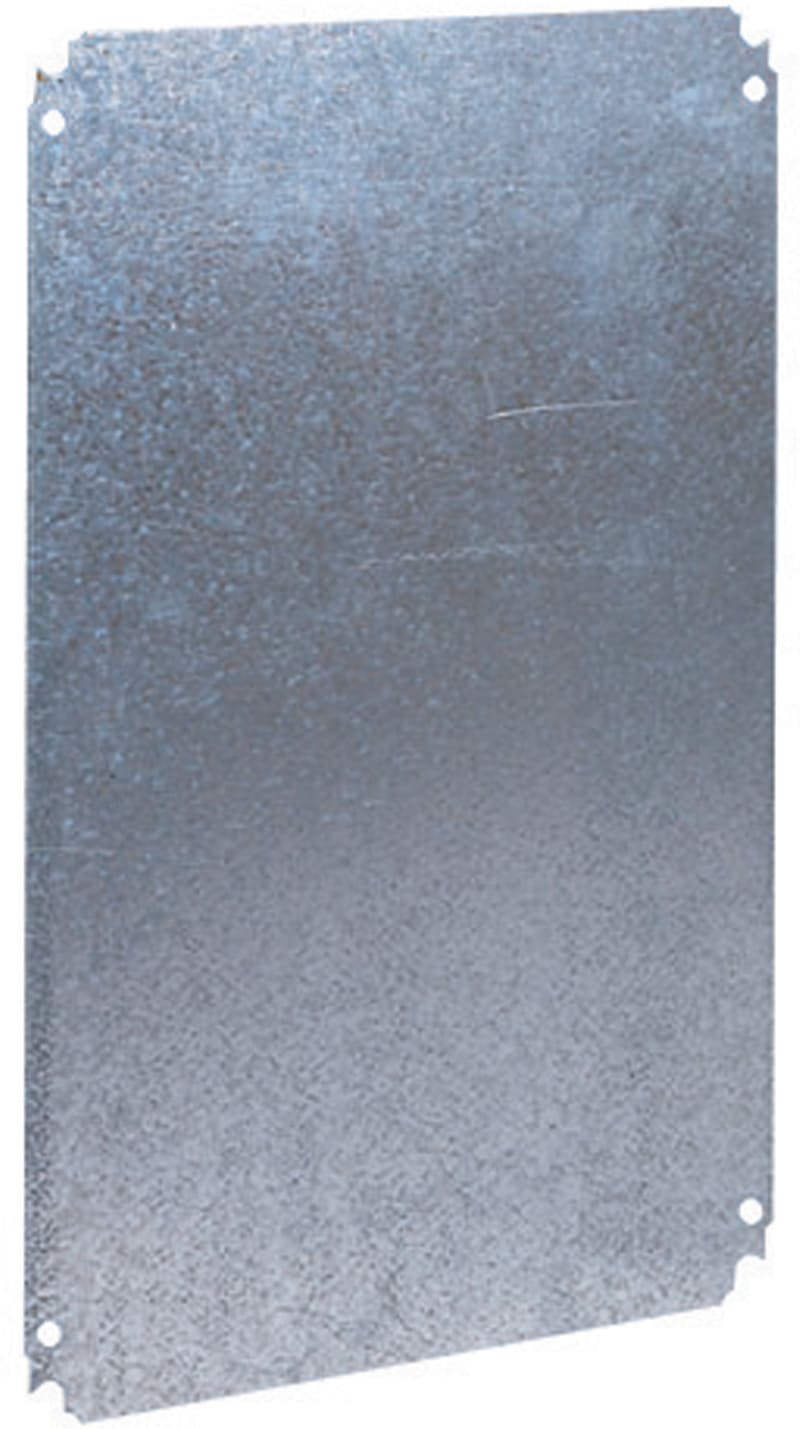

Schneider Electric NSYMM108 Plain mounting plate H1000XW800MM Galvanised sheet steel Reversible dimension
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYMM108 Plain mounting plate H1000XW800MM Galvanised sheet steel Reversible dimension is listed under Enclosures / Mounting Plates. Sales unit: pcs; Range: PanelSeT; Product or component type: Mounting plate; Device application: Multi-purpose; Enclosure nominal dimensions: - H: 800 mm W: 1000 mm ; - H: 1000 mm W: 800 mm; Mounting location: Direct fixing on backstuds; Step slide.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMM108
- EAN / GTIN
- 3606480183164
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 800 mm W: 1000 mm ; - H: 1000 mm W: 800 mm
- Mounting location
- Direct fixing on backstuds; Step slide
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- Screwed on backstuds - screw type M8; By fixing element
- Permanent permissible load
- 150 kg
- Height
- 950 mm
- Width
- 750 mm
- thickness
- 2.5 mm
- Product weight
- 13.96 kg
- Variant particularity
- Installation in enclosures with inverted dimensions
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.300 cm
- Package 1 Width
- 75.500 cm
- Package 1 Length
- 95.000 cm
- Package 1 Weight
- 13.800 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 30
- Package 2 Height
- 34.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 428.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606480183164
- SAP 1000094785
- Code 8948709
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric SpaceLogic KNX Universal Dimmer Extension 2-Ch White
MTN6810-0102
Schneider Electric
Schneider Electric undervoltage release, ACTI9, iMN, voltage release, 220...240 V AC A9A26960
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 3 poles, TMD trip unit 25A C10N3TM025
Schneider Electric

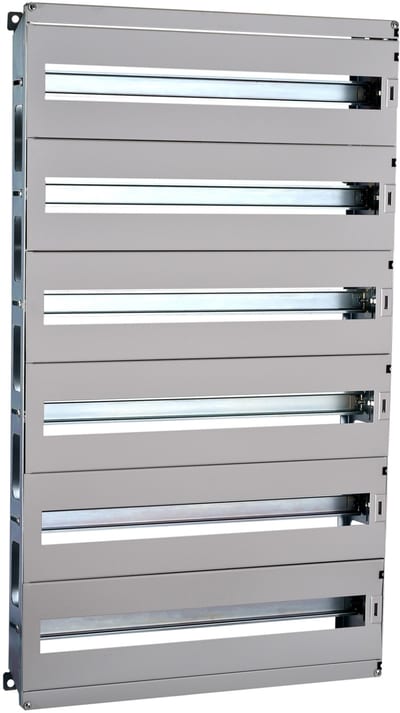

Modular frame 48M H600XW400
NSYDLM48P
Schneider Electric

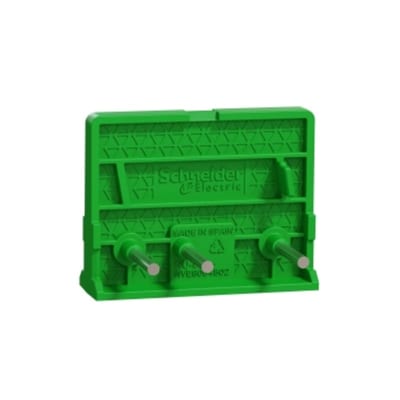

Spacer Piece for Unica Socket Outlet
NU9091
Schneider Electric

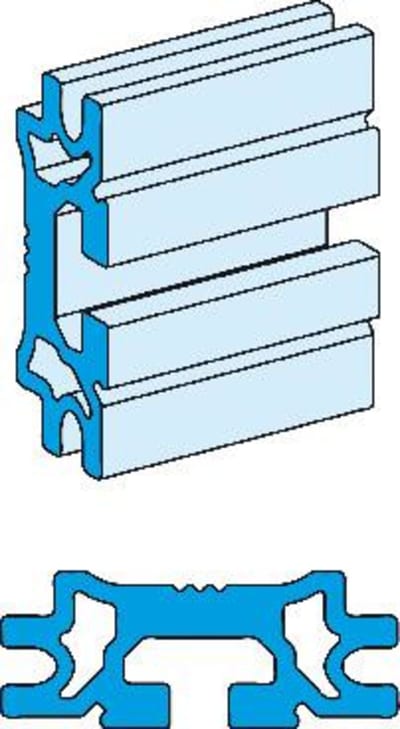

Busbar Horizontal-LinergyLGYE 1250A
LVS04563
Schneider Electric

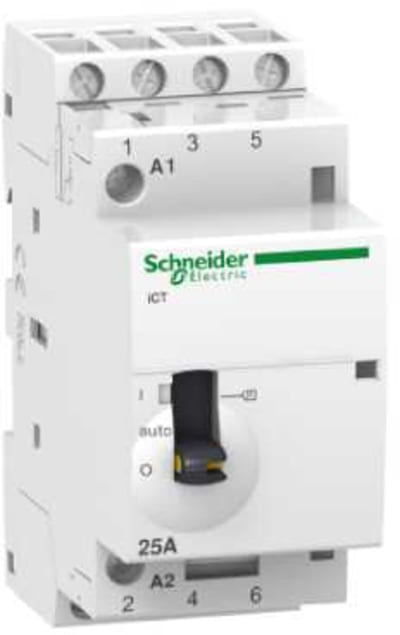

Schneider Electric iCT 25A 4NO 220...240V 50Hz MO contact A9C21834
Schneider Electric

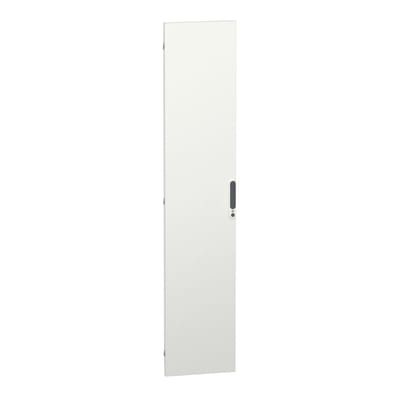

Door IP30 PrismaSeT P width 400mm
