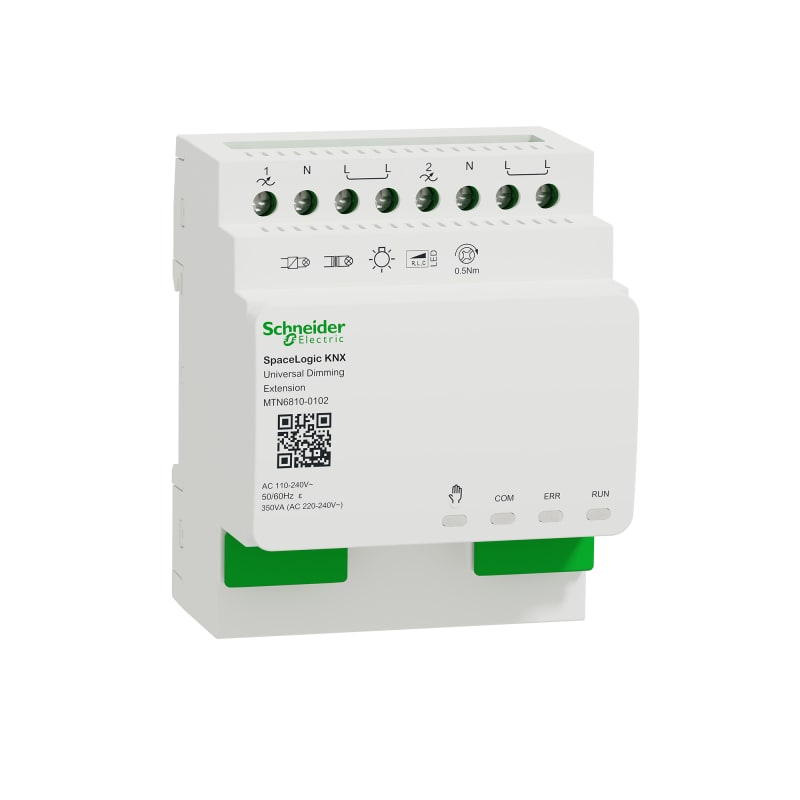

Schneider Electric SpaceLogic KNX Universal Dimmer Extension 2-Ch White

Schneider Electric MTN6810-0102 is a SpaceLogic KNX universal dimming actuator in the extension (slave) configuration, providing two channels for LED and other dimmable loads. It is powered via the KNX bus at 5 mA and installs on a DIN rail at 230 V / 50-60 Hz. The extension expands the capacity of the associated master dimmer up to the load rating of the connected lamps (20-350 W incandescent/halogen, 2-200 W RC LED, 2-60 W RL LED).

Manufacturer part number (MPN)

MTN6810-0102

EAN / GTIN

3606481816993

HS code

8536.90

Sales unit

pcs

Package quantity

28 pcs

Range

SpaceLogic KNX

Product or component type

Dimming actuator

Operating mode

KNX bus system

Bus type

KNX

Power supply input current

5 mA

Mounting support

DIN rail

[Ue] rated operational voltage

230 V

Network frequency

50/60 Hz

Number of outputs

2

Load type

Incandescent lamp: 20...350 W at 230 V 50 Hz AC; Halogen lamp: 20...350 W at 230 V; LV halogen: 20...350 W at 230 V; RC LED lamp: 2...200 W at 230 V; RL LED lamp: 2...60 W at 230 V

Colour tint

White

IP degree of protection

IP20

Number of Units in Package 1

1

Number of Units in Package 2

28

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481816993
• SAP 1200493235
• Code 82651389
