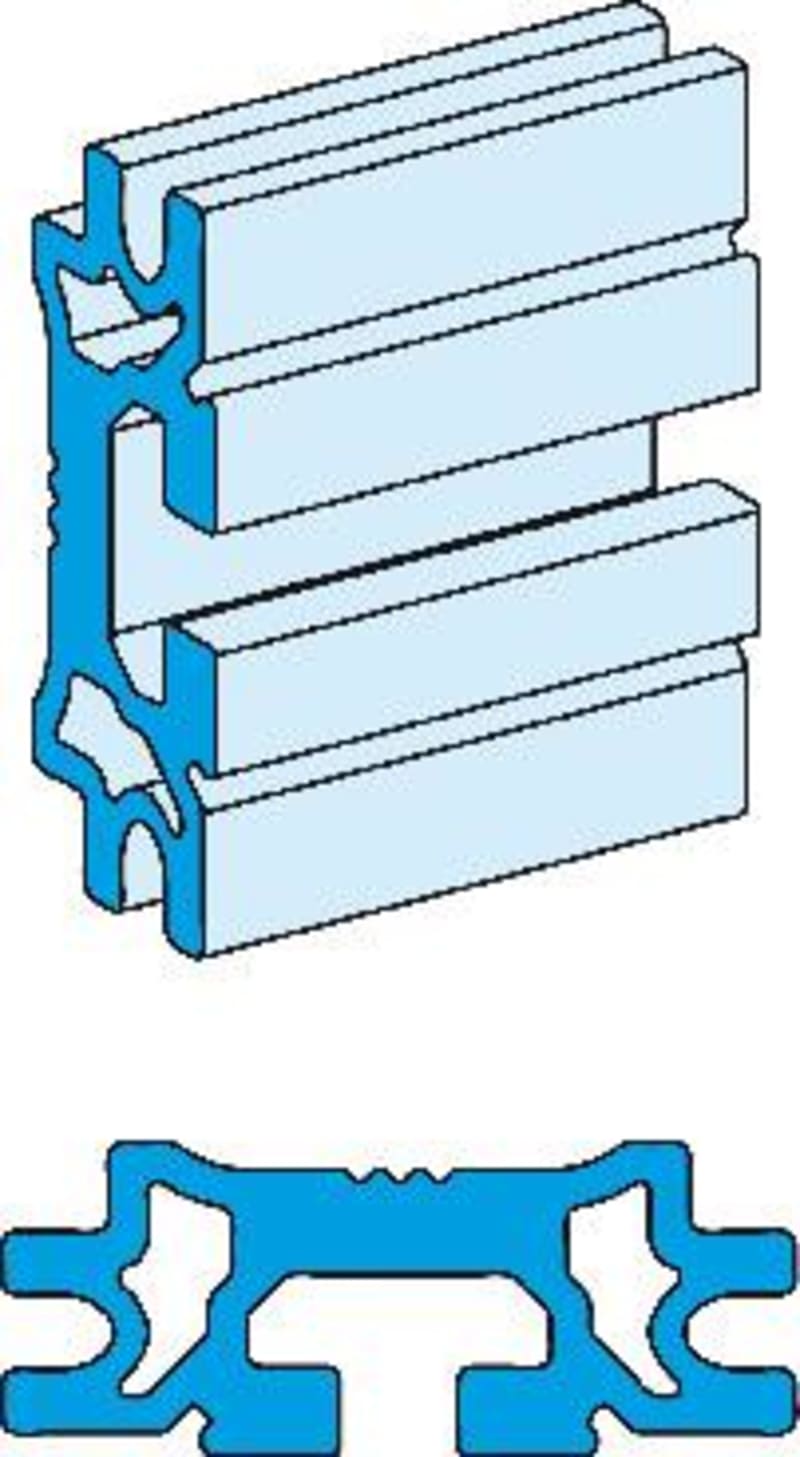

Busbar Horizontal-LinergyLGYE 1250A

Schneider Electric LVS04563 — LINERGY LGYE PROFILE 1250A LENGTH 2000MM.

Manufacturer part number (MPN)

LVS04563

EAN / GTIN

3606481870575

Sales unit

pcs

Rated current

1250 A

Range

Linergy

Range of product

Linergy

Product or component type

Profile busbar

Product name

Linergy LGYE

Range compatibility

PrismaSeT PrismaSeT P enclosure

Accessory / separate part category

Busbar accessory

Busbar description

Linergy

Quantity per set

Set of 1

Installation direction

Horizontal, operating position: top; Horizontal, operating position: bottom

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm; Cubicle duct - width 300 mm; Cubicle duct - width 400 mm

[Ui] rated insulation voltage

1000 V

[Uimp] rated impulse withstand voltage

12 kV (degree of pollution: 3)

[Ie] rated operational current

1250 A

[Icw] rated short-time withstand current

50 kA (1 s) for 2 supports (horizontal position); 60 kA (1 s) for 3 supports (horizontal position)

Permissible current

1250 A at 35 °C: <= IP31; 1050 A at 35 °C: IP31

Length

2000 mm

Width

60 mm

Depth

23 mm

Product weight

2.54 kg

Colour

Natural

Type of busbar connection

Single t-slot

Connection pitch

Free connection position

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.200 cm

Package 1 Width

6.500 cm

Package 1 Length

210.000 cm

Package 1 Weight

4.053 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

48

Package 2 Height

23.500 cm

Package 2 Width

120.000 cm

Package 2 Length

202.000 cm

Package 2 Weight

215.500 kg

Warranty (in months)

18

Model

Profile

Height

23 mm

Flexible

No

Surface protection

Untreated

Rated current In

1250 A

Country of origin

France

HS Code

7604.29
