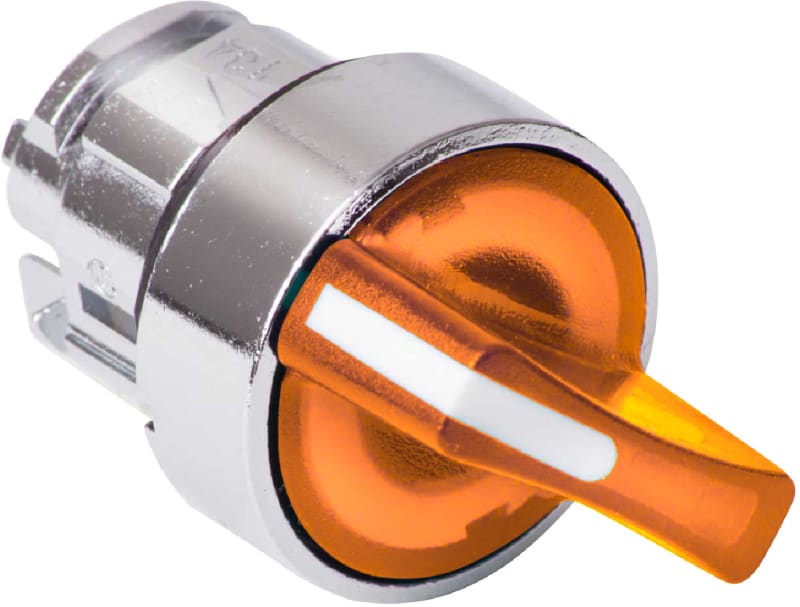

Selector switch with LIGHT 2ST.YELLOW LED (ZB4BK1253)

Schneider Electric ZB4BK1253 — Head for illuminated selector switch, Harmony XB4, metal, orange handle, 22mm, universal LED, 2 positions, stay put.

Manufacturer part number (MPN)

ZB4BK1253

EAN / GTIN

3389110890457

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for illuminated selector switch

Product compatibility

Universal LED

Device short name

ZB4

Bezel material

Chromium plated metal

Head type

Standard

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

stay put

Operator profile

Orange standard handle

Operator position information

2 positions 90°

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

43 mm

Product weight

0.036 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

1000000 cycles

Electrical composition code

M3 for <4 contacts using single blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; M4 for <4 contacts using single and double blocks in front mounting with integral LED

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK04 conforming to IEC 50102

Standards

CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-5-5; IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; UL 508; JIS C8201-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.600 cm

Package 1 Width

5.300 cm

Package 1 Length

5.400 cm

Package 1 Weight

41.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

250

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

10.830 kg

Unit Type of Package 3

P06

Number of Units in Package 3

2000

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

96.604 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

2

Suitable for lighting

Yes

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Short rotary handle

Colour indicator light cap

Orange

Colour control element

Orange

Switching function latching

Yes

HS Code

8538.90
