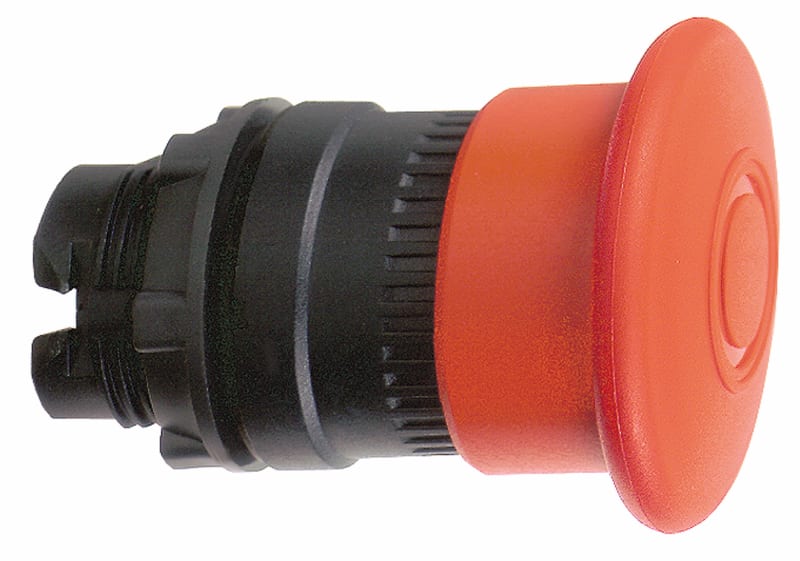

Emergency Stop Head, push/pull, with LED

Telemecanique ZB5AT8643M — red Ø40 illum Emergency stop pushbutton head Ø22 trigger and latching.

Manufacturer part number (MPN)

ZB5AT8643M

EAN / GTIN

3389119003766

Sales unit

pcs

Package quantity

42 pcs

Range of product

Harmony XALF; Harmony XB5

Product or component type

Head for illuminated emergency stop push-button

Device short name

ZB5

Bezel material

Dark grey plastic

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

mechanical latching with mechanical state indicator

Reset

Push-pull

Operator profile

Red mushroom Ø 40 mm, unmarked

Device presentation

Basic element

CAD overall width

40 mm

CAD overall height

40 mm

CAD overall depth

59 mm

Product weight

0.034 kg

Mechanical durability

300000 cycles

Station name

XALD 1 cut-out; XALK 1 cut-out

Electrical composition code

M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; MF1 for <2 contacts using single blocks in front mounting with integral LED; MR1 for <2 contacts using single blocks in rear mounting with integral LED

Product compatibility

Integral LED

Compatibility code

ZB5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP54 conforming to IEC 60529

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK05 conforming to IEC 50102

Standards

GB 14048.5; UL 508; ISO 13850; IEC 60204-1; CSA C22.2 No 14; IEC 60947-1; JIS C8201-5-1; IEC 60947-5-4; IEC 60947-5-1; JIS C8201-1; IEC 60947-5-5

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

42

Number of Units in Package 3

672

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red

Suitable for lighting

Yes

Unlocking method

Pull-release

Spring-return

No

Diameter cap

40 mm

Suitable for emergency stop

Yes

Type of button

High

Colour front ring

Black

With lighting

Yes

Degree of protection (IP)

IP54

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

Yes

HS Code

8538.90
