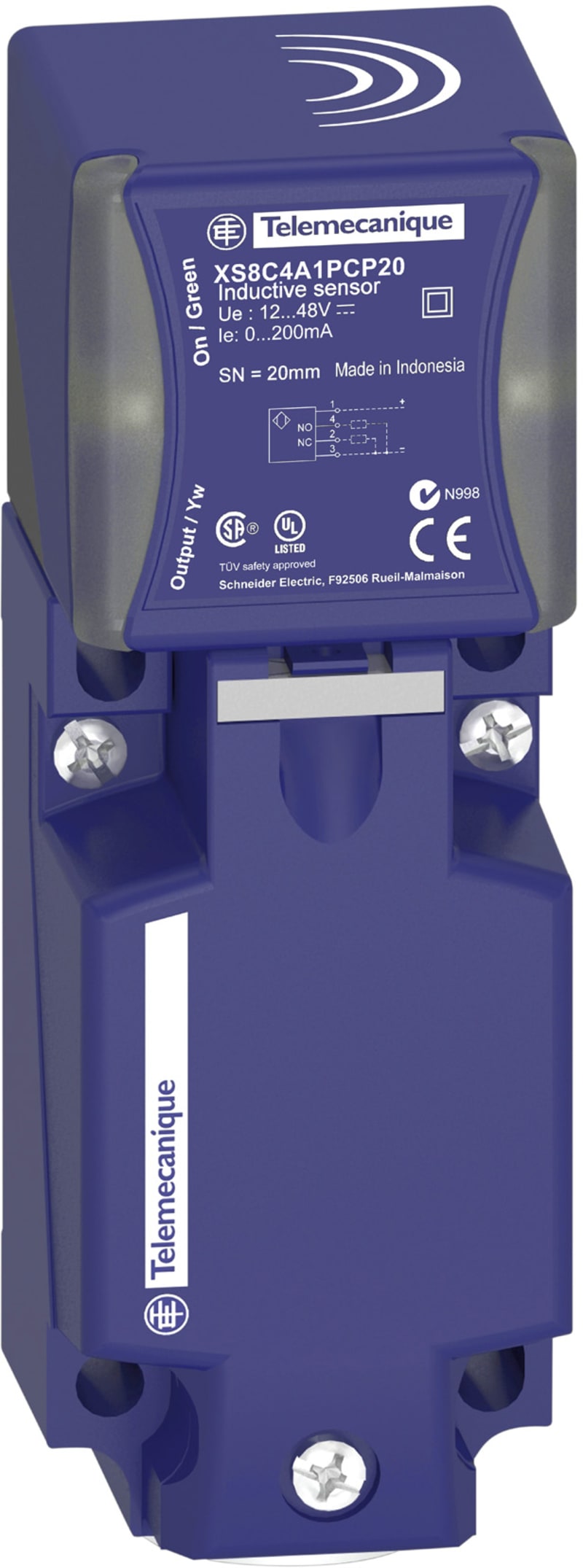

Telemecanique OsiSense XS8C4A1PCP20 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 20 mm, PNP, complementary NO + NC, screw terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS8C4A1PCP20 is an OsiSense XS inductive proximity sensor in a 40 × 40 × 117 mm PBT thermoplastic rectangular block housing, with a nominal sensing distance (Sn) of 20 mm. It provides a PNP (3-wire DC) output, switching complementary NO + NC, via screw terminals. Operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS8C4A1PCP20
- EAN / GTIN
- 3666916010303
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- 40 × 40 × 117 mm rectangular block housing (PBT thermoplastic)
- Nominal sensing distance Sn
- 20 mm
- Output
- PNP (3-wire DC)
- Switching function
- complementary NO + NC
- Connection
- screw terminals
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 14 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- PBT thermoplastic
- Temperature Range
- -25 °C to +70 °C
- HS Code
- 8536.50
Cross References
- EAN 3666916010303
Product Documentation
