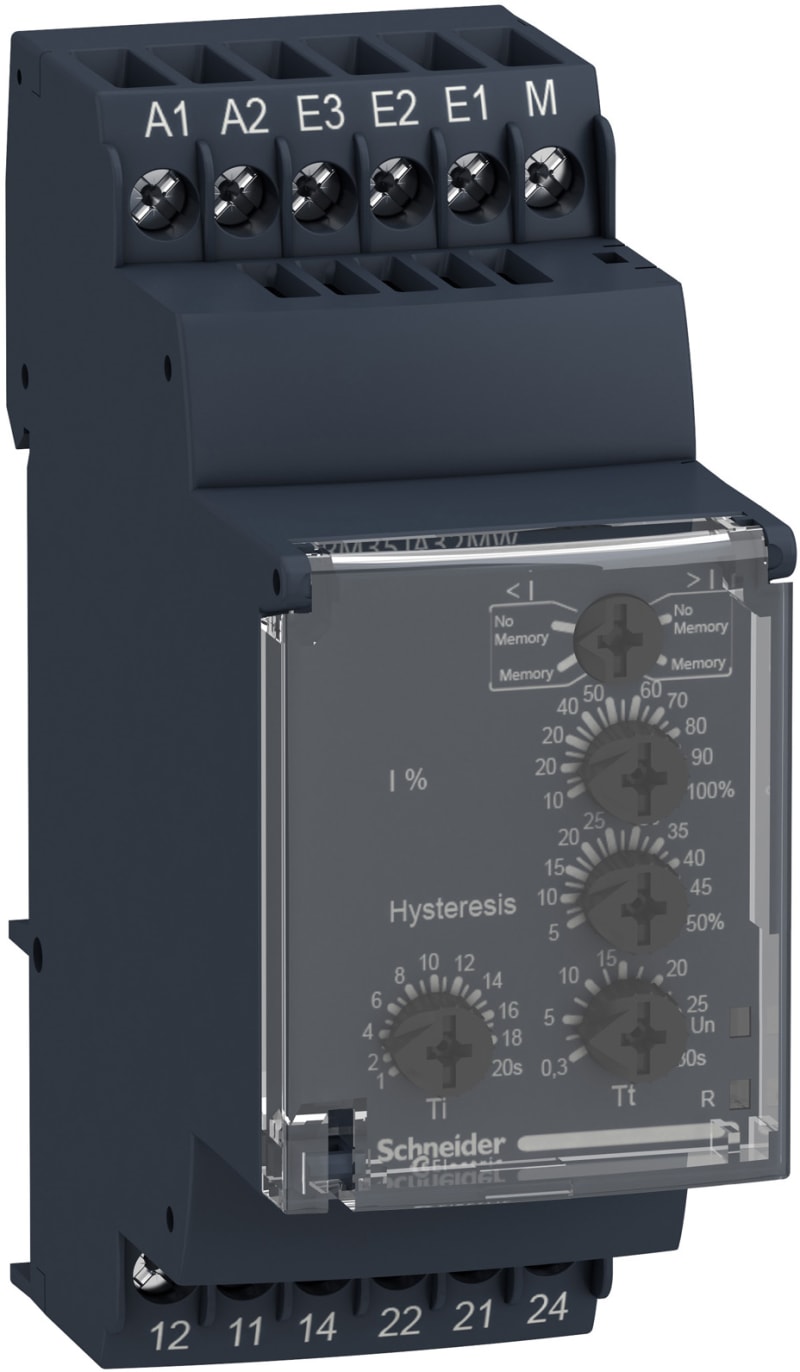

Telemecanique Modular 1-Phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC RM35JA32MW

The relay is easy to mount and has adjustment of the current threshold and an optional time delay on the front of the relay.

Manufacturer part number (MPN)

RM35JA32MW EAN / GTIN: 3389119405225 Sales unit: pcs Package quantity: 48 pcs Rated current: 5 A Range of product: Harmony Control Relays Relay type: Current control relay Product or component type: Current control relay Relay name: RM35JA Relay monitored parameters: Overcurrent or undercurrent detection Time delay type: Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault; Adjustable 1...20 s, 0 + 10 % Ti- inhibition time delay upon startup Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum switching current: 5 A AC/DC Maximum power consumption in VA: 3.5 VA AC Measurement range: 150 mA...15 A current AC/DC Utilisation category: AC-12 conforming to IEC 60947-5-1; AC-13 conforming to IEC 60947-5-1; AC-14 conforming to IEC 60947-5-1; AC-15 conforming to IEC 60947-5-1; DC-12 conforming to IEC 60947-5-1; DC-13 conforming to IEC 60947-5-1; DC-14 conforming to IEC 60947-5-1 Contacts type and composition: 2 C/O Reset time: 1500 ms time delay Maximum switching voltage: 250 V AC/DC Supply voltage limits: 20.4…264 V AC/DC operating voltage tolerance: - 15 % + 10 % Un Maximum power consumption in W: 0.6 W DC Control circuit frequency: 40...70 Hz +/- 10 % Resistance across terminals: 0.005 Ohm at E3-M terminals; 0.015 Ohm at E2-M terminals; 0.05 Ohm at E1-M terminals Output contacts: 2 C/O nominal output current: 5 A Maximum measuring cycle: 30 ms measurement cycle as true rms value Hysteresis: 5…50 % of threshold setting delay at power up: 0.3 s Measurement accuracy: +/- 10 % of the full scale value Repeat accuracy: +/- 0.5 % for input and measurement circuit; +/- 2 % for time delay Measurement error: 0.05 %/°C with temperature variation; 1 by volt over the whole range with voltage variation Polarity: No DC Threshold setting: 10...100 % Marking: CE : EMC 89/336/EEC; CE : 73/23/EEC Overvoltage category: III conforming to IEC 60664-1 Insulation resistance: > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5; > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1; > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5; > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1; > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5; > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 [Ui] rated insulation voltage: 250 V conforming to IEC 60664-1 Insulation: Between supply and measurement Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Local signalling: LED (green) for power ON; LED (yellow) for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Operating rate: <= 360 operations/hour full load [Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz, non self-powered Safety reliability data: MTTFd = 296.8 years; B10d = 270000 Contacts material: Cadmium free Width: 35 mm Control type: Without test button Product weight: 0.13 kg Immunity to microbreaks: 50 ms Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 Standards: IEC 60255-6 Product certifications: GL; UL; GOST; C-Tick; CSA Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 Vibration resistance: 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6; 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 Shock resistance: 15 gn for 11 ms conforming to IEC 60255-21-1 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Dielectric test voltage: 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5; 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 Non-dissipating shock wave: 4 kV conforming to IEC 60255-5; 4 kV conforming to IEC 60664-1; 4 kV conforming to IEC 61000-4-5 Number of Units in Package 1: 1 Number of Units in Package 2: 48 Country of origin: ID Warranty (in months): 18 Voltage type (supply voltage): AC/DC With detachable clamps: No Single-phase under current possible: No Three-phase under current possible: Yes Single-phase overcurrent possible: No Three-phase overcurrent possible: Yes Single-phase hysteresis possible: No Three-phase hysteresis possible: No Contains function DC-voltage under current: No Contains function DC-voltage overcurrent: No Function DC-current hysteresis: No Rated control supply voltage AC 50 Hz: 24–240 V Rated control supply voltage AC 60 Hz: 24–240 V Rated control supply voltage DC: 24–240 V Voltage type for actuating: AC/DC Current measuring range: 0.15–15 A Min. adjustable delay-on energization time: 1 s Max. permitted delay-on energization time: 20 s Min. adjustable off-delay time: 0.3 s Max. permitted off-delay time: 30 s Number of contacts as change-over contact: 2 External current transformer: No Height: 90 mm Depth: 72 mm
