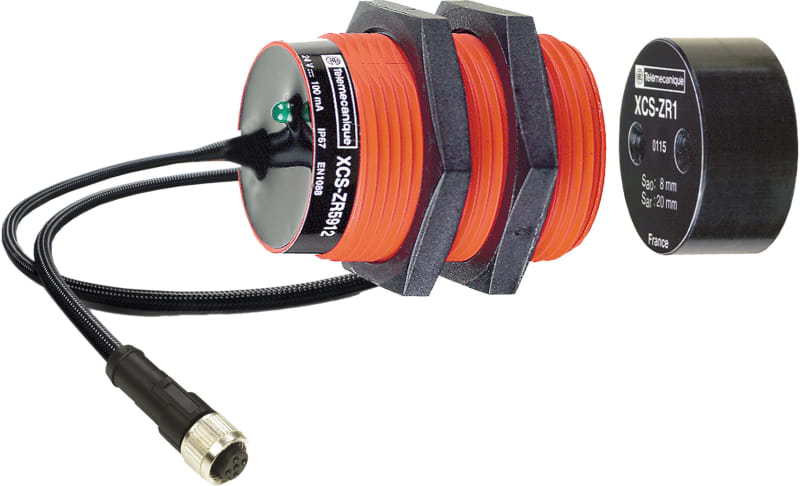

Telemecanique XCSDMR591L01M12 Coded Magnetic Safety Switch, Cylindrical M30, 1NC1NO, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique Preventa XCSDMR591L01M12 coded magnetic safety switch, cylindrical M30 body, 1NC1NO contacts, M12 connector; for position monitoring of guards and doors.
Technical Specifications
- Manufacturer part number (MPN)
- XCSDMR591L01M12
- EAN / GTIN
- 3666916059470
- Sales unit
- pcs
- IP rating
- IP66
- Type of actuation
- Magnet
- Type of electric connection
- Connector M12
- Type of switching output
- Relay contact
- Length of sensor
- 38.5 mm
- Diameter sensor
- 30 mm
- Explosion safety category for gas
- None
- Construction type housing
- Cylinder, screw-thread
- Housing material
- Plastic
- Protected switch distance OFF
- 20 mm
- Protected switch distance ON
- 8 mm
- SIL according to IEC 61508
- 3
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 100 mA
- Mechanical mounting condition for sensor
- Not flat
- Min. output current
- 100 mA
- Voltage type
- AC/DC
- Cross-/short circuit identification possible
- Yes
- Switching distance
- 20 mm
- With monitoring function downstream switching devices
- No
- Suitable for safety functions
- Yes
- With status indication
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916059470
- SAP 1000060626
- Code 8882274
