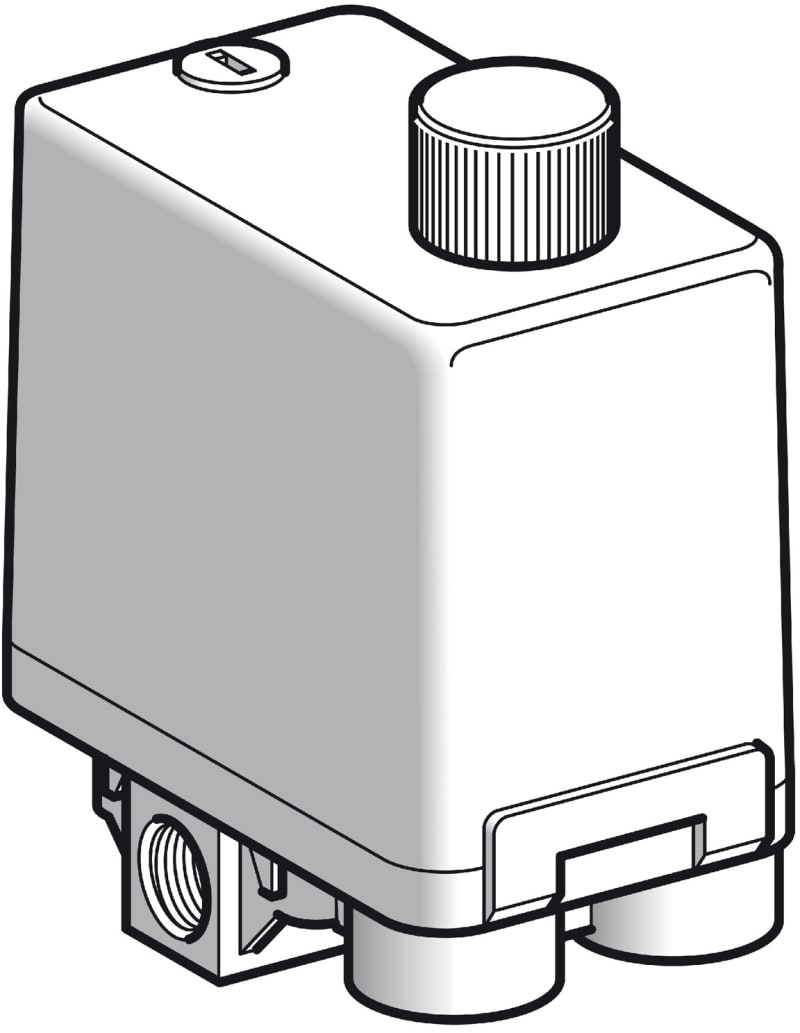

Telemecanique XMPE Power Pressure Switch 12 bar 5.5 kW 400 V G 1/4

Telemecanique XMPE12C2431C200 is a power pressure switch rated for direct switching of loads up to 5.5 kW at 230-400 V AC on liquid or air circuits at up to 12 bar. The unit has a G 1/4 fluid connection, IP65/IP67 enclosure, three NC auxiliary contacts and a manual on/off switch, with an adjustable operating range from about 1 to 12 bar. Typical use is compressor, booster pump and water-supply control.

Manufacturer part number (MPN)

XMPE12C2431C200 EAN / GTIN: 3666916024478 Sales unit: pcs Package quantity: 10 pcs Voltage: 400 V Power: 5 kW Pressure: 12 bar Width: 57 mm Height: 138 mm Depth: 98 mm With display: No Number of auxiliary contacts as normally closed contact: 3 With manual on/off switch: Yes Initial setting: 1300–12000 hPa End setting: 300–10300 hPa Max. operation pressure: 25000 hPa Explosion-proof: No Degree of protection (IP): IP65/IP67 Initial value measuring range pressure: 130000 Pa Switch off pressure: 0.3–10.3 bar Rated voltage Ue at AC 50 Hz: 230–400 V Rated voltage Ue at AC 60 Hz: 230–400 V Bursting pressure: 30 bar Engaging pressure: 1–12 bar Electronic version: No End value measuring range pressure: 1200000 Pa Suitable as 2-point controller: No Suitable as limiter: Yes Suitable as guard: No Medium temperature: 0–70 °C With hand operation: No Pressure-switching differential: 1 bar Max. operating pressure: 12000 hPa Country of origin: Czechia

HS Code

9032.20

• EAN 3666916024478
• SAP 1000341631
• Code 8376361
