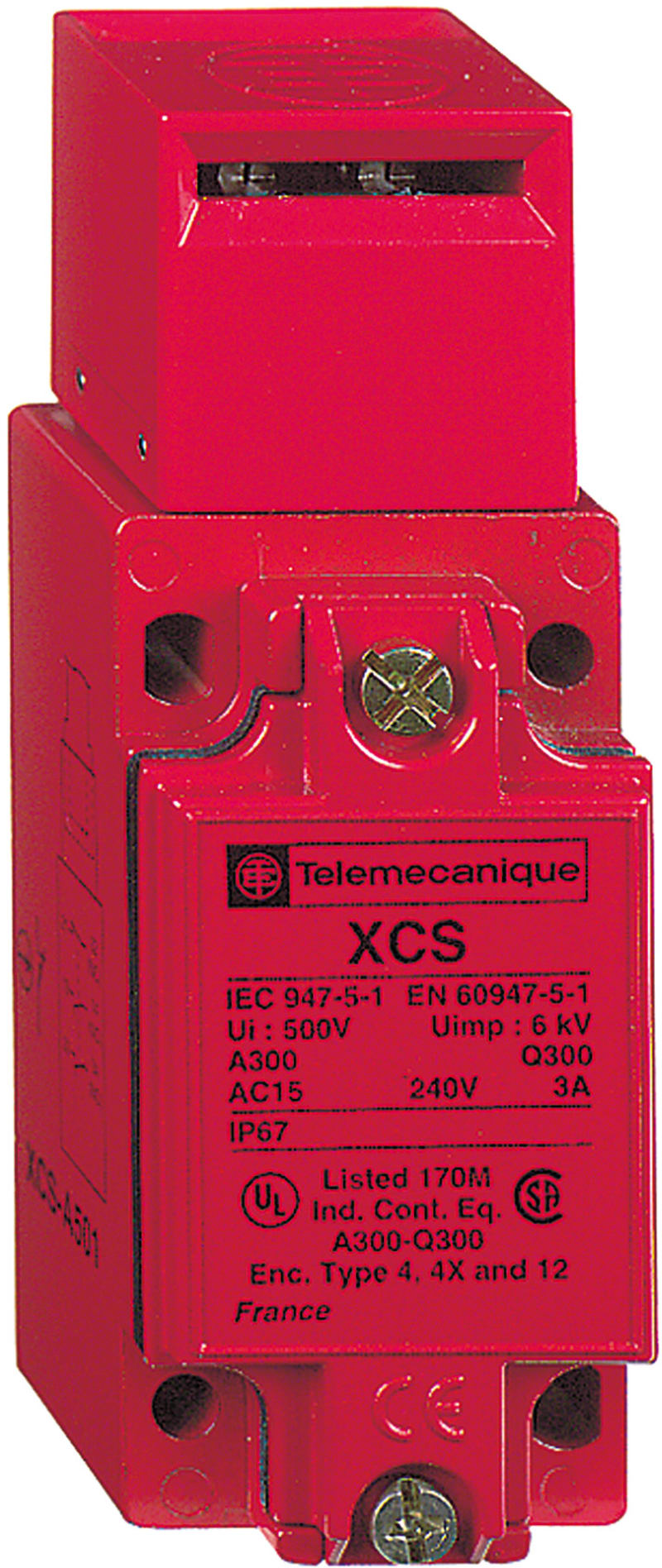

Telemecanique XCSA801 Safety Limit Switch, PG13 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSA801 safety limit switch with positive opening contacts, PG13 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCSA801
- EAN / GTIN
- 3666916049259
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Contact configuration
- 3 NC
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP67K
- Forced opening
- Yes
- Type of interface
- None
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 40 mm
- Height of sensor
- 114 mm
- Length of sensor
- 44 mm
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 3
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916049259
- SAP 1000341811
- Code 8376586
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLPM60RC23F Pressure Transmitter, 0–60 psi, 0.5–4.5 V ratiometric, 1/4" NPT
Telemecanique
Telemecanique XCSZ angled actuator key for XCSPA / XCSTA / XCSTE tongue-operated safety switches, wide radius XCSZ15
Telemecanique
Telemecanique XUK9TAH2MM12 Photoelectric Reflex Distance Sensor, Sn 70 m, 4–20 mA, M12 Connector
Telemecanique
Telemecanique XMPE Power Pressure Switch 12 bar 5.5 kW 400 V G 1/4
XMPE12C2431C200
Telemecanique

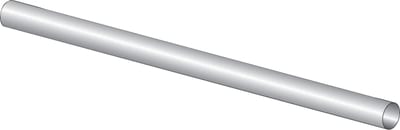

Test Rod 14 MM in Diameter
XUSZTR14
Telemecanique

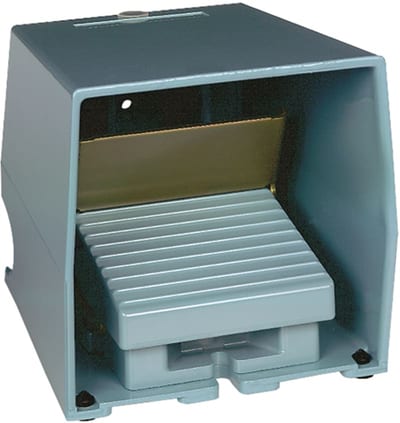

Schneider Electric Preventa XPE, Single foot switch, metal, blue, with cover, trigger mechanism, 2 NO + 2 NC XPEM511
Telemecanique
Telemecanique XZCP11V12L2 Sensor Cable, M12 female straight, 5-pin, PUR, 2 m
Telemecanique

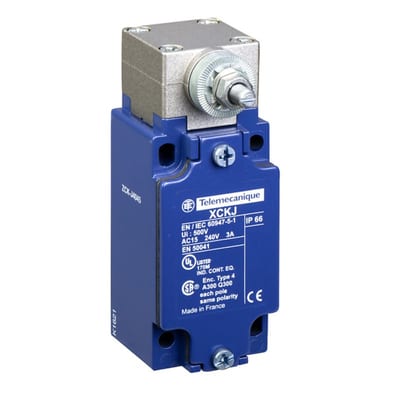

Telemecanique ZCKJ404 Limit Switch
