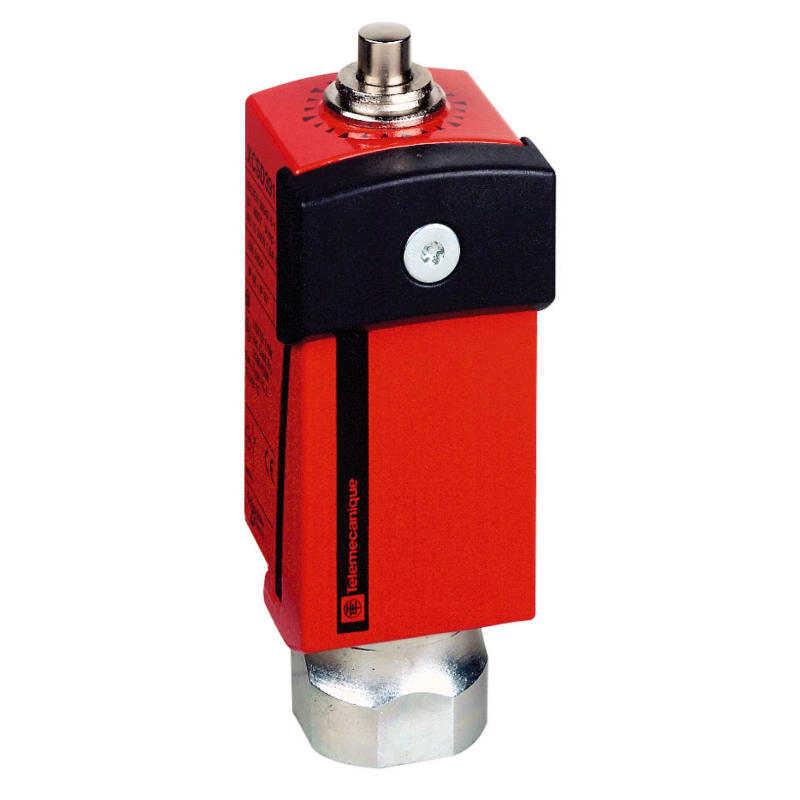

Telemecanique XCSD3710P20 Safety Limit Switch, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSD3710P20 safety limit switch with positive opening contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCSD3710P20
- EAN / GTIN
- 3666916045640
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 21 pcs
- Switching function
- Slow-action switch and quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67K
- Forced opening
- No
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 34 mm
- Height of sensor
- 89 mm
- Length of sensor
- 35 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916045640
- SAP 1200250080
- Code 82225092
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCC12FCM80B Field-Wireable Connector, M12, Female
Telemecanique
Telemecanique XCSDMP590L05M8 Coded Magnetic Safety Switch, 1 NO + 1 NC, 05 m cable
Telemecanique
Telemecanique OsiSense XS506B1PAL2 Inductive Proximity Sensor — Ø6.5 mm barrel, Sn 6.5 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique XUB2AKSNL2T Photoelectric Through-Beam Emitter, Plastic, 2 m cable
Telemecanique
Telemecanique XMLR010G1N26 Pressure Sensor with Display, 0–10 bar, 4–20 mA + 1× NPN
Telemecanique

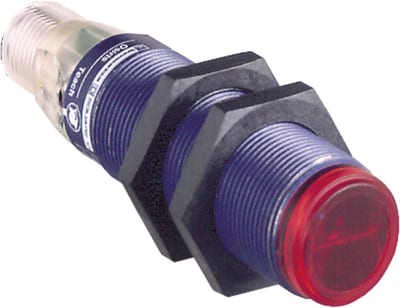

Telemecanique XUB1ANANM12 Photoelectric Sensor M18, Retroreflective, Plastic, NPN, M12 connector
Telemecanique

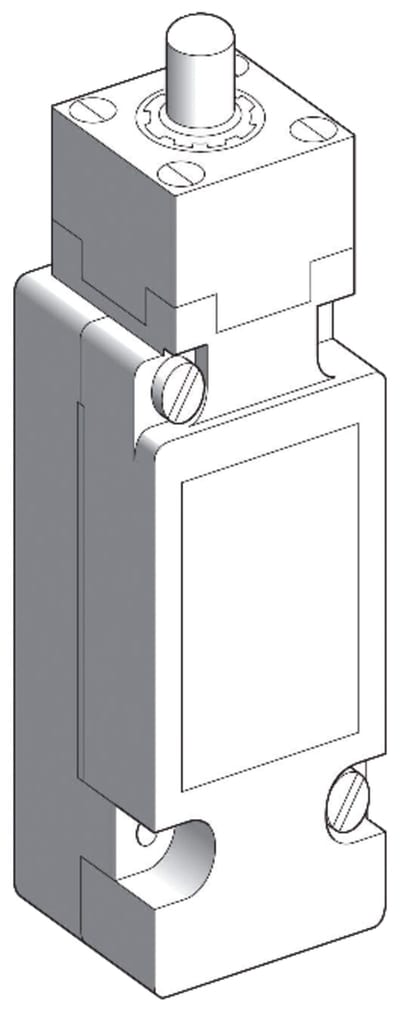

Telemecanique XCKJ1161H29 Limit Switch, Metal Plunger, M20 entry
Telemecanique

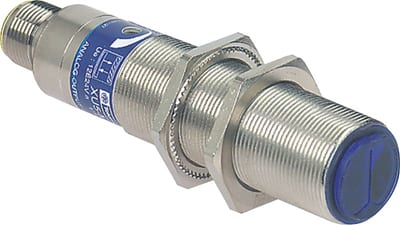

Telemecanique XUB0SKSNM12T Photoelectric Emitter M18, M12 connector
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSD3710P20?
- XCSD3710P20 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSD3710P20.
- What is the HS code for XCSD3710P20?
- The customs tariff (HS) code for XCSD3710P20 is 8536.90.
- Who manufactures XCSD3710P20?
- XCSD3710P20 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XCSD3710P20?
- Yes — the XCSD3710P20 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSD3710P20?
- The minimum order quantity is 1.
- Is XCSD3710P20 available?
- Yes — XCSD3710P20 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
